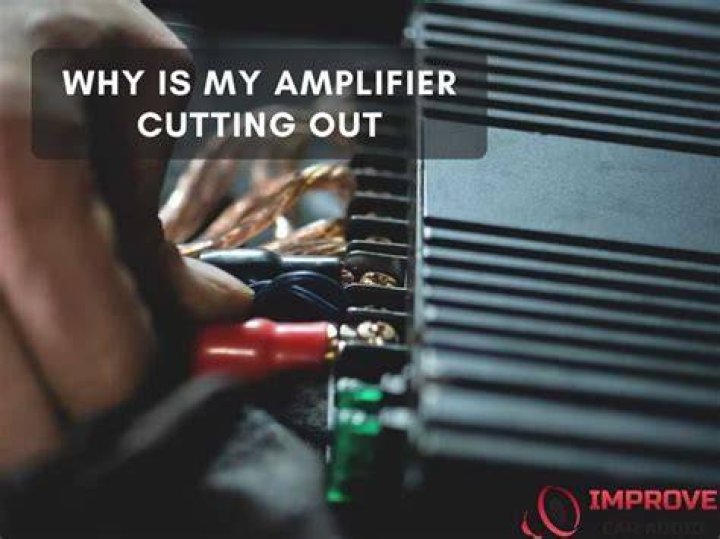

Why is my amp cutting out?

Another possible cause could be a blown speaker. A blown voice coil can short circuit or have much lower impedance. Another possible cause could be improper speaker connection and/or a set of speakers that do not match the amp impedance limit. Or when the amp has Clipping protection circuit.

Correspondingly, why does my amp shut off at high volume?

An amp can shut down when it detects clipping distortion caused by its reaching it's power output limit. This can damage tweeters so a protection circuit can be designed to operate quickly. It can be caused by a bad driver or crossover part in the speaker system or an "almost short" in a speaker wire.

Likewise, why does my amp go into protection mode when I turn it up? It's normal for your amp to go into protect mode when it gets too hot to prevent permanent failure. Keep in mind that turning up the volume may involve pumping more power into the amplifier, which will also make it overheat if you've been listening to it for a long time.

Beside above, why do my subwoofers keep cutting off?

WARNING: There is a risk of hardware damage. Before diagnosing the problem, turn off the subwoofer. If this is the case, set the Power Save switch to the OFF position to prevent the subwoofer from turning off by itself. Check the cables or speaker wires for proper connection between the subwoofer and the main unit.

Can a bad ground cause an amp to overheat?

Many installers are under the impression that a bad grour d can lead to excessive heat and thermal shut down of amps in a system. Actually, the exact opposite is true. Remember, the bad ground prevents the amp from netting enough power. Since an amp cannot make power if it's starved for power, then it cannot get hot.

Why does my amp get hot and cut off?

There are several different reasons that an amplifier will get hot and shut down. Four of the most common are: Blown/grounded speaker(s), poor power and/or ground connections, too low an impedance (load), or Gain/Punch Bass control settings too high.

Why does my amp get hot so fast?

Cheap amplifiers waste more power than they actually produce in sound. That wasted power turns into heat, which causes your amplifier to overheat. Ventilation is key when installing an amp in your vehicle. If it's too much power from the speakers to the amp, it will cause the amplifier to overheat.

What would cause a car stereo to cut in and out?

When a car stereo cuts out and then turns back on: The problem is usually in the wiring. If the display shuts off at the same time the music cuts out, then the unit is probably losing power. Tracking down the fault can be difficult when the radio is functioning since it actually has power at that time.

How can you tell if a sub is blown?

Pressing on the subwoofer can indicate whether it's blown. A functioning subwoofer has suspension that allows for movement. Use both hands and gently press on either side of the subwoofer's speaker cone. If the cone is rigid or locked in place, the subwoofer is definitely blown.

What if my amp is too powerful?

Most speaker damage occurs during an event called 'clipping'. This happens when you overdrive an underpowered amp. It's much harder to damage a speaker when using clean power. So if your speakers are rated 80-100 wpc, a 50 wpc amp has a much higher chance of damaging your speakers than a 300 wpc amp.

What is the gain on an amplifier?

In electronics, gain is a measure of the ability of a two-port circuit (often an amplifier) to increase the power or amplitude of a signal from the input to the output port by adding energy converted from some power supply to the signal. It is often expressed using the logarithmic decibel (dB) units ("dB gain").

How do you set gain on amp?

This setting is the maximum volume your receiver can go to and still play cleanly. Now, turn the amp's gain up until you hear distortion again; then back off the gain slightly until the distortion goes away. The amp gain is now set, so you can lower the receiver volume to a more comfortable level.

Can clipping damage amp?

Clipping itself will not damage anything since that's just the sound wave being unable to reach a certain peak. It sounds bad but it's not bad. That's essentially what distortion and fuzz does to your signal and these don't hurt your speaker. Then the actual volume might damage your speakers in the long run.

What does amplifier clipping sound like?

Clipping is an amp.Amp. clipping sounds like record mis tracking and adds a harsh grating tone to the sound.

How do I stop my speakers from blowing?

AV Tip: How to Avoid Blowing Out Your Speakers

In a multi-channel system employing a powered subwoofer, set ALL of your speakers to "small" in the receiver setup menu and set the crossover frequency a little higher than manufacturer recommendations (we usually recommend 80Hz).
Keep the volume on your receiver at least 5-6dB below its max setting.

What happens if your amp is underpowered?

The underpowered amp can damage speakers by "clipping". The signal going to the speakers from the amp is AC (Alternating Current).

Why is my bass amp clipping?

the clip light next to the headphone is the input clipping. your instrument is putting too much signal into the amp. its distorting the input preamp and the light tells you so. keep the input gain at zero and turn your bass down until the light doesnt flash.

How do I get more bass out of my subwoofer?

The basic steps in tuning a car audio system with a subwoofer amp are:

Turn the subwoofer amp gain all the way down, turn the low-pass filter all the way up, and turn the bass boost off.
Turn the head unit on and set all of the tone controls to their middle settings.

What does it mean when your subwoofer makes a popping noise?

A popping noise from the subwoofer indicates a power mismatch in the circuit. The amplifier producing much less power than it should could be clipping the subwoofer, but also check if it's producing more power than the subwoofer can handle.

Why does my radio shut off when I turn it up?

If the stereo can not work in a lower impedance, it may be shutting down to protect itself. As stated before, it could be due to the speaker wiring not being heavy enough to conduct properly, loose/faulty power wires, or not using large enough wires to power the stereo.

How do I reset my car amp?

How To Reset a Car Amp Out Of Protection Mode

Ensure that the car amp is on.
Head over to the trunk and unscrew the remote and power wire terminals.
Remove both wires and turn off the cars ignition.
Allow around 30 seconds for the car amp to reset out of protect mode and then reconnect them. back.

How do you troubleshoot an amplifier?

Car Amplifier Troubleshooting Guide

Check the remote turn on wire and power wires voltage.
Check continuity on ground wire.
Remote wire needs at least 5 volts to trigger the amp.
Power wire should be at around 12 volts with the car off, 14.4 volts with the car on.
If these are all correct, check the fuses on the amp and the in-line fuse.
