What size is the nut on a tow ball?

You can have a 2-5/16 inch hitch ball on either a 1 inch or 1-1/4 inch shank. The nut on a hitch ball with a 1-1/4 inch shank takes a wrench with a 1-7/8 inch socket. A hitch ball with a 1 inch shank will take a wrench with a 1-1/2 inch socket.

Hereof, what size nut is on a 2 5/16 ball?

Most of the 2-5/16 inch hitch balls will use either a 1-inch diameter shank or 1-1/4 inch diameter shank. The nut size on a hitch ball with a 1-1/4 inch shank, like the Tow Ready 2-5/16 Inch Hitch Ball, part # 19286, will use a 1-7/8 inch socket.

Likewise, can I tow a caravan with 7 pin electrics? Single 7 Pin Electrics They provide power from the towbar to the lights on a trailer or caravan. You can tow a caravan using only single electrics, but the interior functions of the caravan, such as the fridge, wouldn't have power to them. You would need an adaptor if your caravan has 13 pin electrics.

Regarding this, which way does a tow ball unscrew?

Looks clockwise from above the ball, or anticlockwise from below. Can hold the base of the towball with some stillsons if it turns when you turn the nut. As mentioned, may take a bit of a shock as applied by a weighty persuader to "break" it loose. Put the spanner on with the handle to the drivers side of the car.

What is the most common trailer ball size?

The most common ball size is two inches in diameter, but heavy-duty industrial trailer balls can go up to 2 1/4". The diameter of your ball mount's hole must be no more than 1/16" greater than the ball shank diameter in order to fit [source: etrailer.com].

What size ball Do I need to pull a camper?

A trailer of the size you mention would either use a 2 inch or a 2-5/16 inch ball. A 2 inch ball can have a capacity up to 8000 lbs, while the capacity of a 2-5/16 inch ball can range between 6,000 and 30,000 lbs.

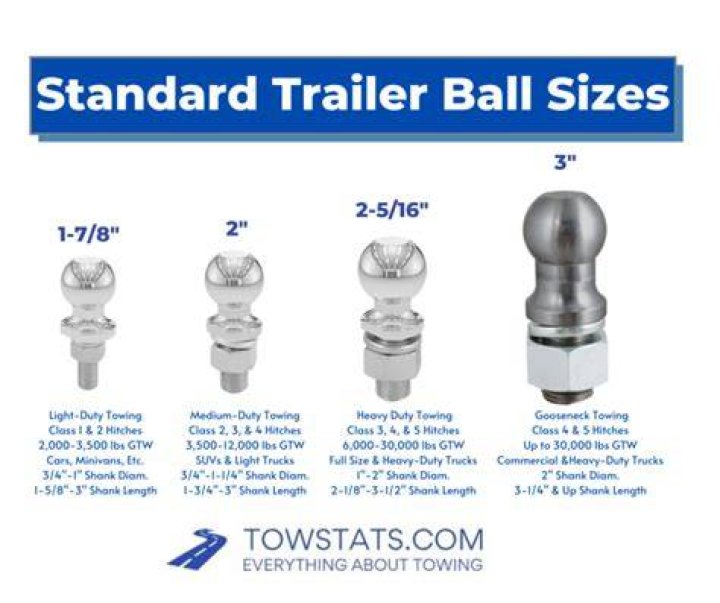

What are the different sizes of trailer hitch balls?

The size is usually stamped there. Recreational and light commercial hitch balls come in a variety of sizes including 1 7/8", 2", 2 5/16" and occasionaly 3". In general lighter trailers use smaller hitch balls.

How do you get the tow ball off?

Re: Tow Ball RemovalTry D4D's trick. If the ball does rotate (or starts to rotate) when you turn the nut then you need a stilton wrench or plumbers wrench to hold the ball tight whilst turning the nut. If the ball rotates you will never get it off without something holding the ball tight.

How tight should a trailer ball be?

The fit between the ball hitch and the trailer coupler should be tight enough to prevent a disastrous decoupling while on the road, but not so snug that the trailer will have trouble making turns.

Can you flip a trailer hitch upside down?

Re: Reese hitch trailer ball mount flipped upside down.This is just a standard, not law, so it may vary. The main thing is to make sure your trailer is level when loaded. If not one axle will carry more of the load and cause early tire failure.

How do you remove a trailer from tow ball?

Loosen the coupler by pushing down on the latch (C) while turning the hand wheel (D) counterclockwise. As you loosen the hand wheel, the ball clamp will drop. Stop and give the trailer a push, pushing it toward your vehicle. You are then ready to attempt to lift the trailer using the handle on the tongue.

How do you adjust a tow ball?

Adjusting Ball Couplings

In order to adjust the ball adjustment screw, the coupling must be first fitted to the tow ball.
Using the screwdriver wind in (clockwise) the adjusting screw until it stops while holding the adjusting nut stationary with the spanner.

Do I need a torque wrench to install a hitch?

When installing a trailer hitch like # 75658 it is necessary to use a torque wrench to get the bolts to the right tightness. If not, and you just try to tighten them as hard as you can, you can damage the vehicle frame. Too loose and the hitch could fail when you tried to use it.

How do you remove a rusted tow ball?

Spray the opening to the hitch receiver. This newest style of penetrating fluid chills the metal, causing it to contract to help break the rust seal. Then use an air chisel fitted with a hammer bit to knock everything loose. The air hammer will break up the rust, spread the penetrant and free up the ball mount.

What is the difference between 7 pin and 13 pin electrics?

The difference between a 7-pin and 13-pin plug is that a 13-pin plug has more functions. A 7-pin plug only supplies in basic lighting, such as blinkers and brake lights. Perfect for bike carriers. The additional pins in the 13-pin plug are used for the reversing lights and the rear mist light, among other things.

Does fitting a towbar affect insurance?

Having a towbar fitted means you can tow other vehicles, caravans, and even boats, which could increase the risk of accident on your policy. The towbar shouldn't increase your insurance, although you may be charged an amendment or service fee if adding it to your existing vehicle.

Do I need twin electrics to tow a caravan?

If you are towing a caravan you would normally need twin or 13 pin electrics. However, some people do still use the 7 pin option if they only ever tow their caravan to site that has mains power provided.
