What is transducer and its types?
James Stevens news
.
Also know, what are different types of transducer?

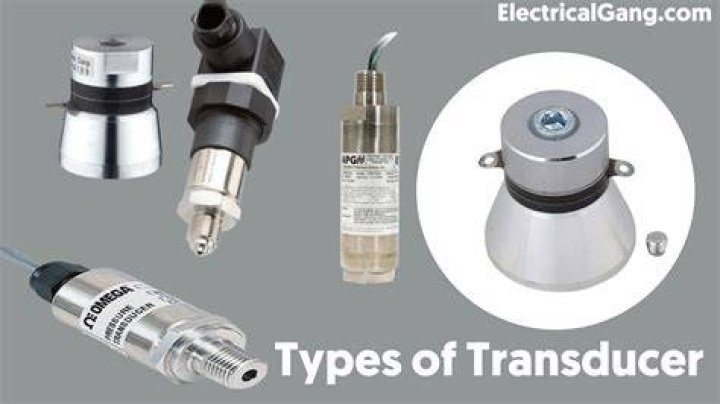

There are various types of transducers such as piezoelectric transducer, pressure transducer, temperature transducer, ultrasonic transducer, and so on. Let us see the use of these types of transducers in practical applications.
Subsequently, question is, what is the use of a transducer? A transducer is a device that converts energy from one form to another. Transducers are often employed at the boundaries of automation, measurement, and control systems, where electrical signals are converted to and from other physical quantities (energy, force, torque, light, motion, position, etc.).
Simply so, what do you mean by transducer?
A transducer is an electronic device that converts energy from one form to another. Common examples include microphones, loudspeakers, thermometers, position and pressure sensors, and antenna.
What are active and passive transducers?
Active transducers are those which do not require any power source for their operation. They work on the energy conversion principle. They produce an electrical signal proportional to the input (physical quantity). Transducers which require an external power source for their operation is called as a passive transducer.
Related Question Answers
What is the principle of transducer?
basic principle of the transducer is to use a current source (or voltage source and a voltage regulator) and an amplifier generates a voltage signal (V out ) as outlined in Fig. 3. The resistance of RTD sensor will be increased with the rising temperature.What is meant by LVDT?
LVDT stands for Linear Variable Differential Transformer. An LVDT is also referred to as a linear displacement transducer, or linear position transducer. This sensor device measures linear displacement (or linear position) very accurately.Is RTD active or passive?
A resistance temperature detector (RTD) is a passive device which measures the change in the electrical resistance of a metal as a function of the temperature.What are the characteristics of transducer?
High Stability and Reliability: The output of the transducer should be highly stable and reliable so that there will be minimum error in measurement. The output must remain unaffected by environmental conditions such as change in temperature, pressure, etc.How are transducers classified?
The transducers can be classified broadly i. On the basis of transduction form used ii. As primary and secondary transducers iii. A component whose output energy is supplied entirely by its input signal (physical quantity under measurement) is commonly called a „passive transducer?.What is the difference between primary and secondary transducer?
Primary transducers contain the mechanical as well as electrical device. It usually converts the physical quantity to be measured into a mechanical signal. Secondary transducers are deployed in cascade with primary one. There is no guarantee of primary or secondary transducer to be explicitly active or passive.What is transducer and its application?
A transducer is a device that converts energy from one form to another. Transducers are often employed at the boundaries of automation, measurement, and control systems, where electrical signals are converted to and from other physical quantities (energy, force, torque, light, motion, position, etc.).What is the main difference between sensor and transducer?
The primary function of the sensor is to sense the physical changes, whereas the transducer converts the physical quantities into an electrical signal. The accelerometer, barometer, gyroscope are the examples of the sensors whereas the thermistor, and thermocouple is the examples of the transducer.What is the principle of LVDT?
Linear variable differential transformers (LVDT) are used to measure displacement. LVDTs operate on the principle of a transformer. As shown in Figure 2, an LVDT consists of a coil assembly and a core. Magnetic flux produced by the primary is coupled to the two secondary coils, inducing an AC voltage in each coil.What is an example of a transducer?
A transducer is an electronic device that converts energy from one form to another. Common examples include microphones, loudspeakers, thermometers, position and pressure sensors, and antenna. No transducer is 100 percent efficient; some power is always lost in the conversion process.Is a battery a transducer?
Battery Transducer. APPLICATIONS REMOTELY MONITORS ELECTRICAL SUBSTATION LEAD ACID BATTERIES AND CHARGERS. The Demico Battery Transducer is a unique Transducer which is powered from the battery it is monitoring, eliminating the need for an additional power source.What is the need of transducer?
Applications of TransducerIt is used for detecting the movement of muscles which is called acceleromyograph. The transducer measures the load on the engines. It is used as a sensor for knowing the engine knock. The transducers measure the pressure of the gas and liquid by converting it into an electrical signal.Is LVDT active or passive transducer?
The active transducer is also called as self generating type transducer. The passive transducer is also called as externally powered transducer. Example of passive transducer is LVDT (linear variable differential transformer). It generates electric current or voltage directly in response to environmental stimulation.Who invented the transducer?
James West
What are the basic requirements of transducer?
Basic Requirements Of a Transducer are :- Ruggedness. It should be capable of withstanding overload and some safety arrangement should be provided for overload protection.
- Linearity. Its input-output characteristics should be linear and it should produce these characteristics in symmetrical way.
- Repeatability.
