Thermal Conductivity
| Material | Thermal conductivity (cal/sec)/(cm2 C/cm) | Thermal conductivity (W/m K)* |
| Glass,ordinary | 0.0025 | 0.8 |
| Concrete | 0.002 | 0.8 |
| Water at 20° C | 0.0014 | 0.6 |
| Asbestos | 0.0004 | 0.08 |
.
Beside this, does glass have high thermal conductivity?
Thus a low thermal conductivity indicates a good insulating material. Materials in between these have neither significant insulating or conducting properties. Cement and glass neither conduct extremely large amounts of heat nor do they insulate extremely well.

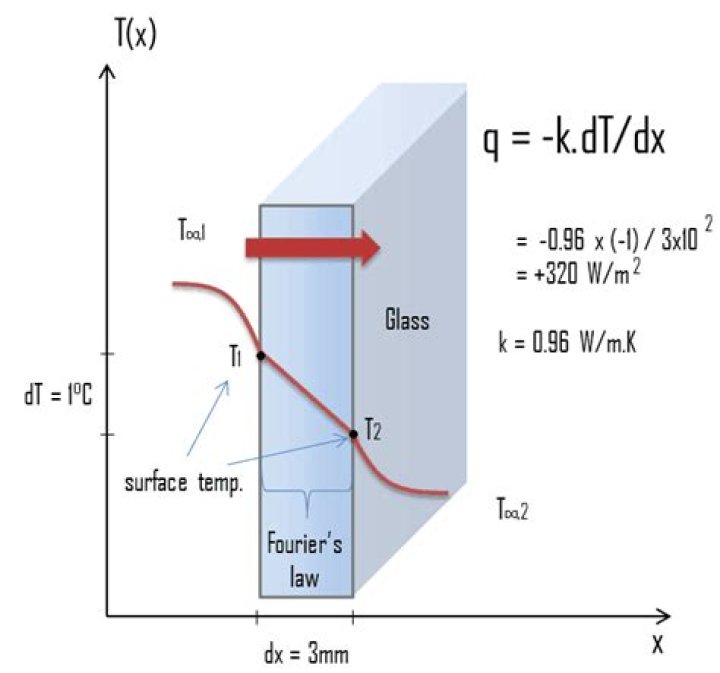

Beside above, what is K value of glass? We assume that the thermal conductivity of a common glass is k = 0.96 W/m.K.
Accordingly, what is the thermal conductivity of concrete?
On average, the thermal conductivity of conventional normal strength concrete, at room temperature, ranges between 1.4 and 3.6 W/m-°C [18].
What is a good thermal conductivity value?
The thermal conductivity of the materials around us varies substantially, from those with low conductivities such as air with a value of 0.024 W/m•K at 0°C to highly conductive metals like copper (385 W/m•K).
Related Question Answers
What is the best heat conductor?
Copper
Is Diamond a good conductor of heat?
Thermal conductivityUnlike most electrical insulators, diamond is a good conductor of heat because of the strong covalent bonding and low phonon scattering. Thermal conductivity of natural diamond was measured to be about 2200W/(m·K), which is five times more than silver, the most thermally conductive metal.Which metal is the best thermal conductor?
A: To my knowledge, silver is the best conductor of both heat and electricity among metals with a thermal conduction value of about 430 W/(mK). Gold and copper both come respectably close to silver, and with Copper being significantly less costly it is often chosen over silver in many applications.What is the best thermal insulator?
A: The best insulator in the world right now is most probably aerogel, with silica aerogels having thermal conductivities of less than 0.03 W/m*K in atmosphere. of aerogel preventing ice from melting on a hot plate at 80 degrees Celsius! Aerogel has its amazing properties because it's mostly made out of air.Is graphite a good conductor of heat?
Graphite is a good conductor of heat for the same reason it is a good conductor of electricity. Electrical Conductivity of Graphite is due to loose electrons,which are results of De-localized bonding in the layers. (This is the cause for anisotropy in Graphite). Also this is the reason for conductivity of metals.How is glass conductive?
Reading with much amusement as to total lack of insight, glass DOES conduct electricity in a molten state. Additionally, glass becomes more conductive (less electrical resistance) the hotter it becomes, unlike most other materials which become less conductive (more electrical resistance) when heated.What is the value of thermal conductivity of air?
1 Btu(IT)/(ft h°F) = 1/12 Btu(IT)/(in h°F) = 0.08333 Btu(IT)/(in h°F) = 12 Btu(IT)in/(ft2 h°F) = 1.488 kcal/(m h°C) = 0.01731 J/(cm s K) = 1.731 W/(m K)Is a high thermal conductivity good?
Thermal conductivity is a measure of a materials ability to pass heat through it. Materials with a high thermal conductivity can effectively transfer heat and readily take up heat from their environment. Poor thermal conductors resist heat flow and obtain heat slowly from their surroundings.Why is thermal conductivity important?
Thermal conductivity determines what we use to keep warm or cool and protects us from heat or cold. For example, metal is a great conductor of heat. We use it in cooking to allow heat to move through it rapidly and around what we are cooking. Other items are poor conductors of heat like rubber.Does heat affect concrete?
Effect of High Temperatures on Concrete. Abrupt temperature changes can cause cracking and spalling due to thermal shock, and aggregate expansion can also produce distress within the concrete. High temperatures also affect the compressive strength of concrete.Is concrete a good insulator?
Although concrete is not a particularly good insulator, heat loss or gain through a concrete slab is unlikely to be as significant as heat transmission through above-ground parts of your home, such as windows and doors, which are directly exposed to cold air and sunlight.Is concrete a good thermal conductor?
Thermal mass materials. Probably the simplest form of thermal mass is a concrete slab floor. dense and heavy, so it can absorb and store significant amounts of heat (lighter materials, such as wood, absorb less heat) a reasonably good heat conductor (heat has to be able to flow in and out)What is the highest thermal conductivity?
Thermal Conductivity [BTU/(hr·ft⋅°F)]As you can see, out of the more common metals, copper and aluminum have the highest thermal conductivity while steel and bronze have the lowest. Heat conductivity is a very important property when deciding which metal to use for a specific application.What is the K value of concrete?
The corresponding k value for normalweight concrete is generally between 9.0 and 12.0, depending upon the density of the concrete.What is the conductivity of air?
Specific heat capacity (Cv) air at 0°C and 1 bara: 0.7171 kJ/kgK = 0.17128 Btu(IT)/(lbm °F) or kcal/(kg K) Thermal conductivity at 0°C and 1 bara: 24.35 mW/(m K) = 0.02094 kcal(IT)/(h m K) = 0.01407 Btu(IT)/(h ft °F) Triple point temperature: 59.75 K = -213.40 °C = -352.12 °F.What is the specific heat of concrete?
Specific heat is the heat capacity of a material that it absorbs to raise the temperature by one degree Celsius. In case of concrete, it is the heat capacity of concrete. Specific heat is measured in joules per kg per degree Celsius. Mineral properties of aggregates affect the specific heat of concrete.Which has lowest thermal conductivity?
Which metal has the lowest thermal conductivity? Within the metals and alloys with a structural significance, and without considering composites or metal foams, Titanium Alloys have the lowest conductivity, at ~7 W/mK. For comparison, 310 Stainless Steel has ~14W/mK and Copper ~390 W/mK.What is K value and U value?
U-value and K-value. To indicate to what extent a material is thermally insulating, the term thermal transmittance or U-value (formerly known as K-value) is used in the construction industry. The lower the U-value, the higher the heat resistance of a material, meaning the better the insulation.What are the units of U value?
U-value, or thermal transmittance (reciprocal of R-value)Thermal transmittance, also known as U-value, is the rate of transfer of heat through a structure (which can be a single material or a composite), divided by the difference in temperature across that structure. The units of measurement are W/m²K.
