What is the purpose of a patch panel?

Enterprise patch panelsIn an enterprise network, a patch panel serves as a sort of static switchboard, using cables to interconnect network computers within a LAN and to outside lines including the internet or other wide area networks (WANs). Patch panels can also be used to interconnect and manage fiber optic cables.

Likewise, why do you need a patch panel?

The most important reasons to use patch panels include: Organization – A patch panel will be each to reach and see, and every cable is going into one central location. Having all the cables connected to one panel helps to keep cables from becoming tangled and messy.

Additionally, what is the difference between a switch and a patch panel? The switch routes all data to & from PC's, internet modem, server etc so that data can be exchanged between devices. A patch panel has a cable from say a port by a desk connected to it. You then patch it to a switch to connect the desk port to your network.

Consequently, how does a patch panel work?

How does a patch panel work - A patch panel is a passive networking hub that bundles multiple ports together connecting incoming and outgoing lines. Each port connects by means of an ethernet or patch cable, and sends data to an outgoing port location.

Do you need a patch panel for home network?

Generally, you want to have a patch panel that offers the same number of ports as the total number used in the entire home or office. You can always just turn patch cables coming to the central place into network connectors (mentioned in the first part of this post) and connect them directly into a switch or router.

What is the benefit of using a patch panel?

Some of the most significant benefits of using patch panels include: Scalability – After installing a patch panel, you can easily add new devices without having to run new cables end-to-end. Reduces Cable Clutter – Patch panels are typically located closer to the actual equipment.

How do you set up a patch panel?

Steps for Installing a Patch Panel and Switch

Determine where the patch panel and switch should be installed.
Build or purchase pre-terminated patch cords.
Map out the ports.
Mount the patch panel and switch.
Connect the patch panel to the switch.
Install cable management.
Label cable.

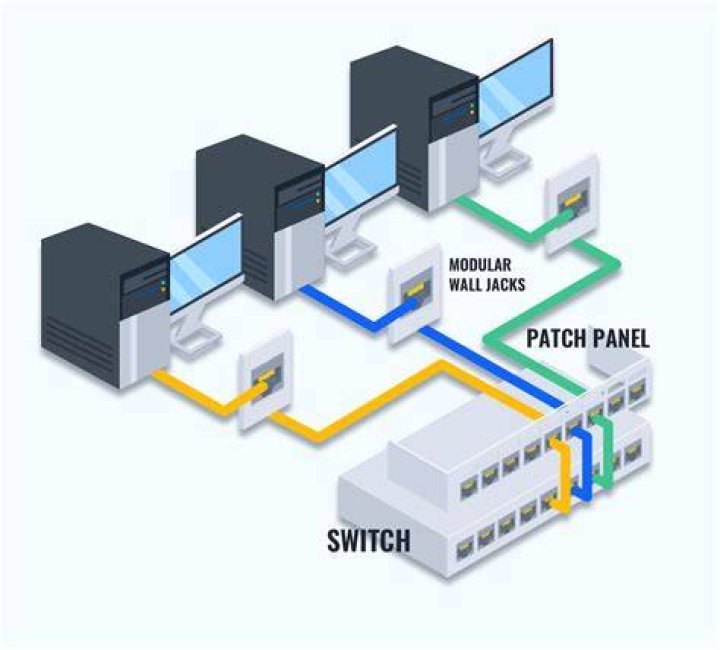

How does a patch panel connected to a switch?

From the patch panel, small patch cables plug into a port on the panel, and then the cable plugs into the switch. It is much easier to replace a patch cable than to run new wires to the computer room or throughout a building. An eight port switch is designed handle network traffic.

Why is it called a patch cable?

However, patch cords typically refer only to short cords used with patch panels. The term "patch" came from early use in telephony and radio studios, where extra equipment kept on standby could be temporarily substituted for failed devices.

What are switches in it?

A network switch (also called switching hub, bridging hub, officially MAC bridge) is networking hardware that connects devices on a computer network by using packet switching to receive and forward data to the destination device. Switches for Ethernet are the most common form of network switch.

Can you run Poe through a patch panel?

If its just a patch panel, you can run POE through it with no issues.

Is a patch panel a hub?

A patch panel is a hub only in the sense that it is a physical device in which wires are concentrated, but it cannot be used to network computers. All true hubs used in networking are active hubs, which are powered devices that regenerate signals coming into one port for transmission through other ports on the hub.

How many ports does a patch panel have?

Ports make the panelPatch cords can then be easily placed into the ports. Patch panels typically consist of four or eight modules of eight ports each, for a total of 24 or 48 ports respectively. But panels can consist of up to 96 ports and have been known to reach 336.

What is UTP patch panel?

A patch panel in a local area network (LAN) is a mounted hardware assembly that contains ports used to connect and manage incoming and outgoing LAN cables. Patch panels are also referred to as patch bays, patch fields or jack fields and are also commonly used in radio and television.

How does a fiber patch panel work?

Fiber optic patch panel is a mounted hardware unit containing an assembly of port locations in a communication or other electronic or electrical system. Fiber optic patch panel is used to terminate the fiber optic cable and provide access to the cable's individual fibers for cross connection.

How do you wire a patch panel?

How to Wire a Patch Panel

Buy a patch panel. When buying the patch panel, ensure it has 110 style insulation displacement connectors.
Design a cable map.
Remove cable jackets from incoming Ethernet cables.
Remove internal plastic jackets (if any)
Untwist and spread the cable wires.
Set your wires to the panel connector.
Complete your connections.

What is a patch in software?

A patch is a set of changes to a computer program or its supporting data designed to update, fix, or improve it. This includes fixing security vulnerabilities and other bugs, with such patches usually being called bugfixes or bug fixes, and improving the functionality, usability or performance.

What do you mean by Hub?

A hub, also called a network hub, is a common connection point for devices in a network. Hubs are devices commonly used to connect segments of a LAN. The hub contains multiple ports. When a packet arrives at one port, it is copied to the other ports so that all segments of the LAN can see all packets.

What is a punch down tool and how do you use it?

A punch down tool, also called a krone tool, is a hand tool used to connect telecommunications and network wires to a patch panel, punch down block, keystone module, or surface mount box. The "punch down" part of the name comes from punching a wire into place using an impact action.

Where do you put a patch panel on a rack?

Patch panel on top, with a wiring management in between every patch panel. And if there's other rack for the switch, place it on the next rack. If not, place it from below. So the patch panel would have enough space to grow up, and so does the switch.

What is the difference between a patch cable and an Ethernet cable?

Patch Cable vs Ethernet Cable. Patch cable can also be used to connect the patch panel to switch or a hub. Patch cables are often used for short distances in offices and wiring closets. Ethernet patch cable can link a computer to a network hub or a router which is useful for constructing home computer networks.

How do I install a network switch?

HOW TO SETUP A NETWORK SWITCH

Connect an Ethernet cable into an outgoing port on your modem or router – sometimes marked as a “WAN” port (on a router – any port will do)
Take the other end of the Ethernet cable and plug it into any port on your switch.
Now plug another Ethernet cable cable into another port on your switch.

How do you mount a switch on a rack?

Step 1 Lift the switch into the rack and insert the mounting brackets onto the rails (Figure 3-12). Step 2 Slide the switch on the rails, toward the rear posts, until the mounting bracket flanges are positioned on the rail posts. Step 3 Select mounting screws that fit the equipment rack.

What is network patching?

Patching means fixing. It is done in order to quickly repair the piece of programming. Patching is usually developed or distributed for replacement or insertion in a compiled code i-e,. a binary or an object file. When the networking device is sold out and after that the customer faces some problems called bugs.
