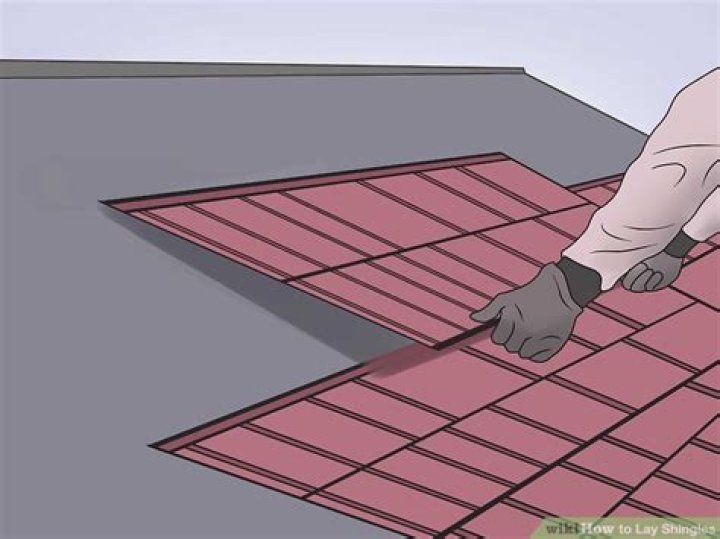

What is the proper way to lay shingles?
Jackson Reed general
.
Just so, do you overlap shingles?
When applying the new shingles, each shingle course will be covered by a step flashing. There are two simple rules to follow: Each flashing should overlap the one below by at least 75 mm (3″), but not be visible below the shingle top lap.
Similarly, how do you install drip edge? Install roof drip edge along the eaves, add underlayment, then place drip edge along the gable end. The best way is to install the roof drip edge only along the eaves first, then place ice-and-water barrier (in the snowbelt) or felt paper (underlayment) over the drip edge.
In respect to this, does flashing go over or under shingles?
HEADWALL FLASHING This is true no matter what type of roof-covering material is installed. Flashing should overlap the roof-covering material, but on asphalt shingle roofs, for aesthetic reasons, the part of the headwall flashing that extends down over asphalt shingles is often covered with a course of shingle tabs.
What does flashing do on a roof?
Flashing a roof refers to the act of installing various waterproof materials in valleys, joints, edges, roof penetrations and any other gaps to prevent water damage or leaks. This form of protection is a necessary construction practice, and it's widely applied to commercial, residential and industrial structures.
Related Question Answers
How long is drip edge?
Roof drip edges are generally sold in 10.5-foot lengths, but they are occasionally sold in 8-foot lengths or smaller. The length of the overhang itself commonly ranges from 2 to 5 inches.Are shingles considered asphalt?
An asphalt shingle is a type of wall or roof shingle that uses asphalt for waterproofing. It is one of the most widely used roofing covers in North America because it has a relatively inexpensive up-front cost and is fairly simple to install.How do you install drip edge after shingles?
Make sure the outer edge extends over the gutter. If it doesn't, pull the drip edge out slightly from under the shingles. Secure the drip edge with roofing cement. Apply a continuous bead of cement along the top of the drip edge, then press down on the shingle.Is it better to hand nail shingles?
Technically, it does not matter if a roofer hand or gun nails the asphalt shingles on your new roof. By hand-nailing the roof, roofers can ensure the nail is properly placed and is nailed in at the correct depth; flush with the shingle and not over- or under-driven.Do you peel the plastic off of shingles?
More on the "no" answer to removing roof shingle cellophane strips. Asphalt roof shingle manufacturers recommend that installers leave that piece of cellophane in place. It does not need to be removed before, during, or after roof shingle installation. It does not need to be removed as part of the roofing process.How many nails should you put in a shingle?
Most shingle manufacturers recommend at least four nails per shingle and six in high wind areas such as Florida and Oklahoma.Should roofing nails go through the sheathing?
A 1″ nail will fully penetrate through 3/8″ roof sheathing, but it won't fully penetrate 1/2″ sheathing. The other way to determine if the proper nails were used is to look in the attic; if the roof has 1/2″ sheathing, you should be able to see the nails sticking through in to the attic.Why do roofing nails back out?
Nail pops can be caused by a variety of reasons. When the temperature changes, expansion and contraction can cause the nails to pop up and lift the shingles. Other causes of nail pops can be that the shingles were not nailed tightly when the roof was installed.Can you nail through shingles?
Yes, professional roofers use nails to apply shingles, but they do so in a very specific way so that each nail is covered by the shingle above it. Adding another nail above the shingles compromises your roof system. A roofing professional will choose corrosion-resistant screws for this job, not just nails.What causes sliding shingles?
Slipped shingles are those shingles displaced from their original position on the roof due to fasteners being improperly located and/or overdriven and thereby having a reduced or nonexistent attachment to the roof deck.How many shingles make a square?
Three bundles to a square is most common, which applies to most three-tab strip shingles and laminated shingles. When shingles are three bundles to the square, there are 29 standard-sized shingles (12 in. by 36 in.) in each bundle.How long should shingle nails be?
Proper Nail Application For Asphalt ShinglesNails should have a minimum, nominal shank diameter of 11- or 12-gauge, and a minimum head diameter of three-eighths of an inch. The length of each nail must be a minimum of 1¼ inches long, and for roof-overs, Atlas recommends a nail length of at least 2 inches.Are architectural shingles better than 3 tab?
In general, architectural shingles may cost about 25% more than 3-tab shingles, but they are considered the standard for higher-end homes. Due to their quality, look and desirability, architectural shingles may the best type of shingle to use if you want to increase the resale value of your home.How far do shingles hangover drip edge?
The edge of the shingles should hang over a roof between an inch and an inch and a half — or between a half inch and three-quarters of an inch if drip edge flashing is installed. Too much overhang and the shingles could blow off in high winds; too little can allow water to seep into rake or fascia boards.Are architectural shingles easier to install?
Since an architectural shingle roof is easier to install, is more durable and comes with a better warranty, its lifespan cost is, in many instances, actually less than that of a more basic 3-tab roof.How much does a bundle of shingles cost?
Retail price for 25-year, 3-tab shingles is about $25 to $30 per bundle, plus tax. You need three bundles per square, so the total price is around $75 to $90 per square. For architectural shingles, the retail price jumps to about $33 to over $52 per bundle, or $100 to $160 per square.Do you need a starter course with architectural shingles?
Every roof has to start somewhere, and that somewhere is at the appropriately named starter shingle (also called starter strip). Starter shingles are the initial shingle products installed on the roof, just before the first course of the finish shingles, which will comprise the visible parts of the roof.How long do architectural shingles last?
about 30 years
