What is the maximum allowable resistance for test leads?
Sarah Silva .
Thereof, what is the minimum acceptable value of insulation resistance?
The rule may be stated: Insulation resistanceshould be approximately one megohm for each 1,000 volts ofoperating voltage, with a minimum value of one megohm. Forexample, a motor rated at 2,400 volts should have a minimuminsulation resistance of 2.4 megohms.
Similarly, what is the acceptable Megger reading for a motor? A general rule-of-thumb is 10 Megohm ormore. The measurement of insulation resistance is carried outby means of a megohmmeter – high resistance rangeohmmeter. This is how the test works: DC voltage of 500 or1000 V is applied between the windings and the ground of themotor.
Keeping this in view, how do you test a lead with a multimeter?
Test the leads To “ohm-out” your leads, place yourDMM in the resistance (ohms) function, plug the leadsinto the DMM and touch the probe tips together-red to black.The meter should read about 0.5 ohms or less for good qualitytest leads. You may isolate a problem to one lead orthe other by testing them separately.
How do you test for insulation resistance?
Insulation resistance measurement is done usingan IR tester. This is a portable tool that is more or less anohmmeter with a built in generator that's used to produce a high DCvoltage. The voltage usually measures at least 500V, and causes acurrent to flow around the surface of theinsulation.
Related Question Answers
What is the acceptable earth resistance value?
The NFPA and IEEE recommend a ground resistancevalue of 5 ohms or less while the NEC has stated to “Makesure that system impedance to ground is less than 5 ohmsspecified in NEC 50.56. In facilities with sensitive equipment itshould be 5ohms or less.”How do I know the Megger value of cable?
IR Value Measurement (Conductor to EarthInsulation)- Connect conductor under test to the Line terminal of themegger.
- Connect earth terminal of the megger to the earth.
- Rotate the handle of megger or press push button of megger. Thereading of meter will show the insulation resistance of theconductors.
What is IR value of motor?
Minimum Insulation Resistance (IR)value is depend upon Rated line voltage of equipment.Minimum IR in megohm = (kV + 1) #Example-1: For a 440Vmotor minimum IR between phase and ground = 440/1000+1 = 1.44 Megohm.What should be Megger value?

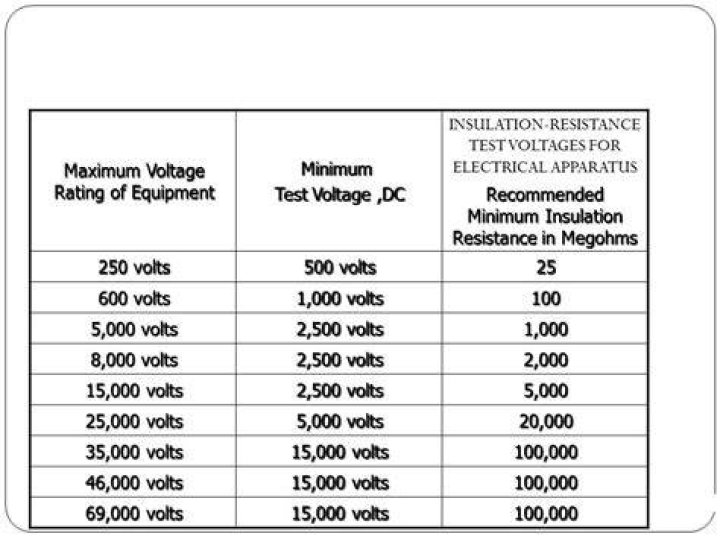

(1) IR Values For Electrical Apparatus & Systems:
| Max.Voltage Rating Of Equipment | Megger Size | Min.IR Value |
|---|---|---|
| 250 Volts | 500 Volts | 25 MΩ |
| 600 Volts | 1,000 Volts | 100 MΩ |
| 5 KV | 2,500 Volts | 1,000 MΩ |
| 8 KV | 2,500 Volts | 2,000 MΩ |
What is the test voltage for insulation resistance?
The insulation resistance test is an electricaltest which uses a certain type and level of voltage(500V d.c. for low voltage installations i.e.: 230V) tomeasure insulation resistance in Ohm`s. The measuredresistance indicates the condition of the insulationbetween two conductive parts.What is insulation resistance of cable?
The insulation resistance is theresistance in ohms of wires, cables and electricalequipment. It is important to guard against electric shocks andavoid equipment damage from accidental discharges. The method ofmeasuring the insulation resistance is to test andassess the state of the isolation (head and body.)What is insulation resistance test of cable?
A cable insulation resistance test is atest that is performed by applying 500 V or more between theconductor and ground and measuring the resulting leakage current.An insulation resistance tester is a test instrumentthat measures current that leaks through the insulation intoground.What affects insulation resistance?
Factors that affect insulation resistancemeasurements include such things as temperature, humidity, previousconditioning, test voltage, charging current and duration ofthe test voltage (electrification time).What does a 0 reading on an ohmmeter mean?
Technician A says that a low or zero reading on anohmmeter indicates continuity. Ohmmeter is an instrumentused for measuring resistance of a component or a circuit.Resistance is measured in ohms with no current flowingthrough the circuit.What are the symbols on a multimeter?
In any case, here's a rundown of what each symbol means onmy multimeter:- Direct Current Voltage (DCV): Sometimes it will be denoted witha V– instead.
- Alternating Current Voltage (ACV): Sometimes it will be denotedwith a V~ instead.
- Resistance (Ω): This measures how much resistance thereis in the circuit.
What does 0l mean on a multimeter?
The screen displays a value of zero (or near zero), andthe multimeter beeps. Continuity! If the test current isn'tdetected, it means there's no continuity. The screen willdisplay 1 or OL (open loop).How do you read ohms on a meter?
Set your multimeter to the highest resistancerange available. The resistance function is usually denotedby the unit symbol for resistance: the Greek letter omega(Ω), or sometimes by the word “ohms.”Touch the two test probes of your meter together.When you do, the meter should register 0 ohms ofresistance.How do you test a motor?
Test for direct shorts in the motor'spower windings in induction (non-brush type) motors. Keepthe multi-meter set for 30,000-ohms and touch one test leadto one terminal and the other to another terminal. Each of the setsof windings should read about the same ohms value.How many volts does a Megger put out?
Working Principle of Megger500 Volt DC is sufficient for performing test onequipment range up to 440 Volts. 1000 V to 5000 V is usedfor testing for high voltage electrical systems. Deflecting coil orcurrent coil connected in series and allows flowing the electriccurrent taken by the circuit being tested.How do you check a motor with a Megger?
How to Test a Three-Phase Motor With a Megger- Turn off the power supply to the motor, usually accomplished byswitching the circuit breaker.
- Place one megger probe to the any mounting bolt on the breakerbox to test for grounding continuity, then touch the other probe toa motor terminal.
- Crank the handle for about a minute, and notice the resistancereading.
