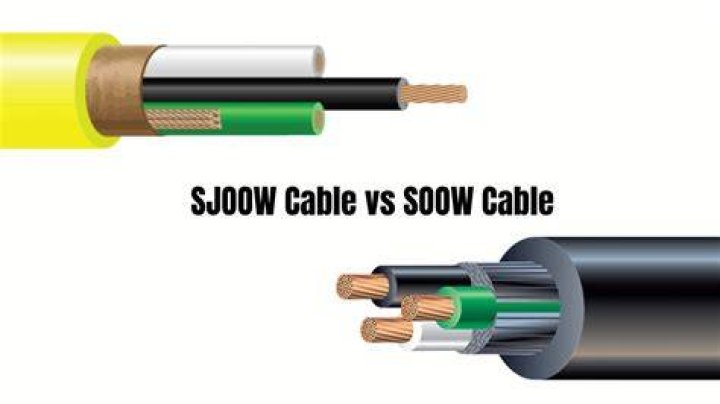

What is the difference between Soow and Sjoow cord?

The main differences between SOOW & SJOOW Portable Cords are the following: SOOW Portable Cords come in a wider range of sizes (2-18awg) & made with a wider range of conductors (2-40 Conductors) SJOOW Portable Cords come in sizes 10awg-18awg and 2-4 conductors only.

Similarly one may ask, what is the difference between Sjoow and Soow?

SOOW & SJOOW Service Cord SJOOW cord is rated for 300 volts, while SOOW cord is rated 600 volts. The "J" in SJOOW means "Junior", to designate its lower voltage rating. Both types of service cord are resistant to abrasion, ozone, sunlight, chemicals, oil and have been approved for submersion in water.

Also Know, what is Soow cable used for? SOOW Cable Uses & Applications That's right -- SOOW cables are not just for industrial applications, but can be used in both commercial and residential ones as well! SOOW cables can also be used in heartier industrial applications as well, such as with construction equipment, cranes, processing machinery, and motors.

Accordingly, what is the difference between so and Soow cable?

Basically they are the same cable but the SOOW cable has an oil resistant conductors and outer jacket. The SO cable only has an oil resistant jacket. The voltage and temp. ratings are the same for either version.

What is Sjoow cable?

SJOOW stands for S = Service Cord (600 Volts) J = Junior Service Cord (300 Volts) OO = Oil Resistant both inside insulation and outside jacket. W = CSA designation for weather/water resistance. SJOOW cable is a thermoset cable, it entails a very heavy-duty rubber jacket around the copper wires inside.

What does SJOW mean?

SJOW Cable OverviewSJOW stands for: S = Service Cord (600 Volts) J = Junior Service Cord (300 Volts) O = Oil Resistant outside jacket. W = CSA designation for weather/water resistance.

What does Seoow stand for?

O = Oil-resistant outside jacket. OO = Oil-resistant both inside insulation and outside jacket. W = Compliance, Safety, Accountability (CSA) designation for weather and water resistance. T = Thermoplastic.

What is SJTW?

SJTW stands for Hard service cord, thermoplastic constructed jacket, 300 volt, weather resistant for outdoor use. S = service, J = Junior, T = Thermoplastic/Vinyl, W-A = Weather Approved. One source for this informatiion is

What does Sjeoow stand for?

The SJEOOW stands for: 1.S = Service or Hard Service Cord. 2.J = Junior Service Cord rated at 300Volts. 3.E = Thermoplastic Elastomer - TPE OO = Oil Resistant Insulation and an Oil Resistant outside Jacket. 4.W = Weather and Water Resistance.

Can you bury Soow cable?

No, SOOW is not evaluated or marked per the UL Wire and Cable Guide for use in a Direct Burial application nor in UL 62 that provides for that application.

What does SJ cord mean?

A single 'O' designates an oil resistant outer jacket, while the double 'OO' stands for oil resistant insulation and an oil resistant outer jacket. All four types (SJ cable, SJO cable, SJOW cable; and SJOOW cable) are considered heavy duty, due to their thermoset rubber jackets.

What does Soow cable mean?

The letters in "SOOW" stand for cable properties. The 'S' in SOOW cable means “Service.” For portable cords that begin with an S but are NOT followed by a J, the voltage rating is 600 volts. The 'OO' means the cable has oil resistant insulation and jacketing. The 'W' means the cable is weather and water resistant.

What is Junior Service cord?

Junior)-Junior service cord (300V). SJ has an all rubber construction, remains flexible at low temperatures, and is designed for indoor use with portable tools, equipment and motors. SV remains flexible at low temperatures and is for use with vacuum cleaners and other light-duty equipment.

Why is it called Cabtire?

The name "Cabtire Cables" is given to a class of highly robust cables which display toughness akin to those of car tires. The name "Cabtire Cables" is given to a class of highly robust cables which display toughness akin to those of car tires.

What is Type W Cable?

Type W cable is durable cord capable of supplying power in temporary or permanent wiring applications, depending on the cable's construction. Classified as a "portable cord," multi-conductor Type W cable is ideal for temporary power supply.

Can so cord be used outside?

SOOW Cable OverviewConstructed of color-coded synthetic oil, ozone and water resistant rubber (EPDM) insulation and an oil resistant thermoset chlorinated polyethylene (CPE) jacket, SOOW is rated for indoor/outdoor use. SOOW flexible rubber cords carry a 600 volt rating.

Does Soow need conduit?

You can not use the SOOW cable in the conduit it is not listed in that fashion.

What is HPN wire?

TYPE HPN PARALLEL HEATER CORD - 300 Volt, Neoprene Insulation, Stranded Conductor, 90°C Dry. Type HPN Cord is used with heating appliances such as toasters and flat irons. Type HPN is similar to type SPT with the exception that it's wall thickness is much greater and the insulation is specially compounded neoprene.

Is so cord submersible?

SOOW is also water submersible and flameretardant. SOOW is designed for indoor and outdoor use with industrial equipment, heavy tools, battery chargers,portable lights and power extensions. SOOW meets CSA approval for outdoor use.

Is SJ cord waterproof?

SJ cord is a 300 Volt power cable used on small applications to supply power to tools and appliances. The SJ cord contrasts with its peers because it's not water, oil, and solvent resistant.
