What is the difference between PCIe x16 and x1?
Jackson Reed news
.
Consequently, can I use PCIe x1 in x16?
You can use a PCIe x1 card, or a PCIe x4 card in a PCIe x16 slot. They work fine. So if you think you are short of PCI-e slots, you may not be. A shorter PCIe card works fine in a longer slot.
Likewise, does it matter which PCIe x16 slot I use? If it has only one PCI Express x16 slot, the choice is easy, but some motherboards have more than one PCI Express x16 slot for multiple graphics card support. The graphics card should go into the first PCI Express x16 slot. However, lower slots are usually capable of running the card as well.
Similarly, you may ask, what is a PCI Express x1 slot?
PCIe x1 slots replace the standard PCI port and are about 1 inch (or 26mm) long. They move data on and off the motherboard at up to 250 MBps in each direction at once. The PCIe x16 slot that replaces the AGP graphics-card slot is 90mm (about 3.5 inches) long, just like a PCI slot.
What is PCIe x16?
By Vangie Beal The PCI Express x16 graphics interface (also called PCIe x16) offers increased bandwidth and scalability over the previous AGP8X generation. PCI Express x16 allows up to 4 GB/s of peak bandwidth per direction, and up to 8 GB/s concurrent bandwidth.
Related Question Answers
How fast is PCIe x1?
Bandwidth in a single direction for a single PCIe 1.0 lane (x1) is 250MB/s, but because you can send and receive 250MB/s at the same time Intel likes to state the bandwidth available to a PCIe 1.0 x1 slot as 500MB/s.What can you put in a PCIe x1 slot?
Top uses of the PCIe 1x slot on your motherboard- Port Expansion Cards. One of the most common uses of the 1x slots is for port expansion cards where users are looking to increase the number of specific ports on their PC.
- Sound Card.
- Modems, Network Cards (wired and wireless)
- TV Tuner.
- Video Capture.
- Video Card.
Can a PCIe x1 fit in a x8?
2 Answers. Any PCI Express card of a smaller size will fit into a larger slot. So an x1 card will fit in an x8 slot.Is PCI Express 3.0 compatible with PCI Express x16?
Typically they will all be PCI Express, but for a graphics card you need a PCI Express x16 slot. There are three versions of this slot, but they're backwards compatible, so a modern PCI Express 3.0 graphics card will work in a motherboard with a PCI Express x16 2.0 slot.Can I plug PCIe into PCI?
You can't use a PCIe card in a PCI slot they are not wired the same and nor use the same voltages, PCIe x1 cards into other PCIe slots yes but not PCI.Can PCIe x8 fit in x16?
A x8 card will also work fine in a x16 slot. But it will be limited to x8 speeds. A x16 card will work in an x1 slot, but will be limited to x1 speeds. A x16 card will work in an x4 slot, but will be limited to x4 speeds.What is a PCI Express card?
PCIe (peripheral component interconnect express) is an interface standard for connecting high-speed components. Every desktop PC motherboard has a number of PCIe slots you can use to add GPUs (aka video cards aka graphics cards), RAID cards, Wi-Fi cards or SSD (solid-state drive) add-on cards.What does the PCI stand for?
PCI stands for "Payment Card Industry Data Security Standard". The full acronym is PCI DSS, but most people just call it PCI for short.What does NVMe stand for?
non-volatile memory express
What is a PCI Express x16 slot used for?
You can also get video cards designed for x1 slots. Those are normally used only if you want more than one video card in the computer. Most motherboards have one PCI-Express x16 slot for a video card and one or more x1 slots for other things like network adapters. Less common are x4 and x8 slots.How does PCI Express work?
PCI Express is a serial connection that operates more like a network than a bus. Instead of one bus that handles data from multiple sources, PCIe has a switch that controls several point-to-point serial connections. These connections fan out from the switch, leading directly to the devices where the data needs to go.What GT S mean?
In computer technology, transfers per second and its more common secondary terms gigatransfers per second (abbreviated as GT/s) and megatransfers per second (MT/s) are informal language that refer to the number of operations transferring data that occur in each second in some given data-transfer channel.What are PCI slots used for?
Stands for "Peripheral Component Interconnect." PCI is a hardware bus used for adding internal components to a desktop computer. For example, a PCI card can be inserted into a PCI slot on a motherboard, providing additional I/O ports on the back of a computer.How do you tell what PCI Express you have?
Download and install CPU-Z. Once installed, open it and head to the 'Mainboard' tab. Under the “Graphic Interface” tab, you'll see what type of PCIe connection you have, along with its link width. Look for 'x16' in 'Link Width' and 'PCI-Express 3.0' under 'Version'.What type of bus does PCI Express use?
Whereas PCI uses a 32-bit or 64-bit parallel bus, PCI Express uses a serial bus, which is faster than a parallel bus because it transmits data in packets similar to how an Ethernet network, USB, and FireWire transmit data. A PCIe expansion slot can provide one or more of these serial lanes.How fast is PCIe x16?

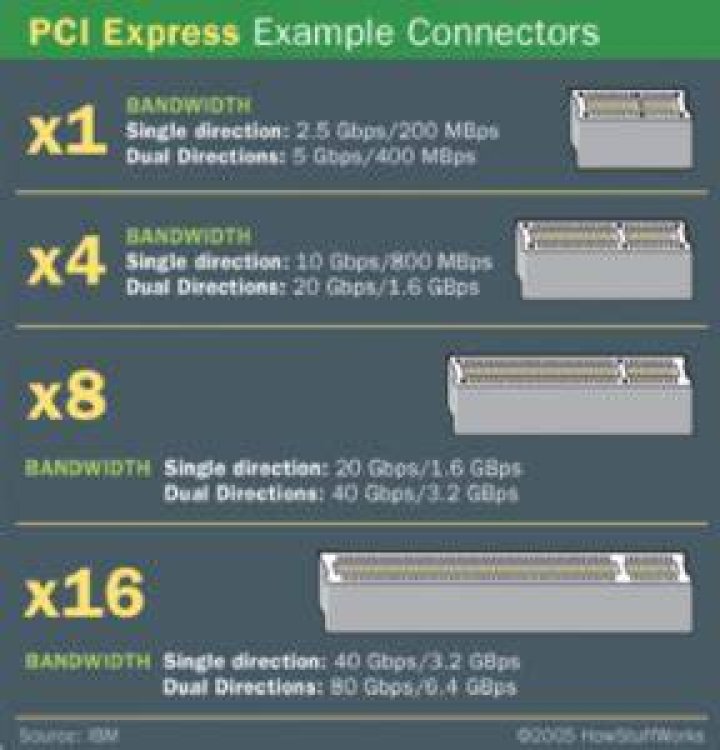

PCI Express Theoretical Max Bandwidth
| PCI-e 1.0 | PCI-e 2.x | |
|---|---|---|
| x1 | 250MB/s | 500MB/s |
| x4 | 1000MB/s | 2000MB/s |
| x8 | 2000MB/s | 4000MB/s |
| x16 | 4000MB/s | 8000MB/s |
Are all PCIe slots the same?
A little-known fact is that you can install any PCI Express expansion card in any PCI Express slot. So, if you have an x4 expansion card but your motherboard doesn't have an x4 PCI Express slot, no problem; simply install it in an x8 or x16 slot. The same holds true for “bigger” cards.What is the best PCI Express x16 graphics card?
