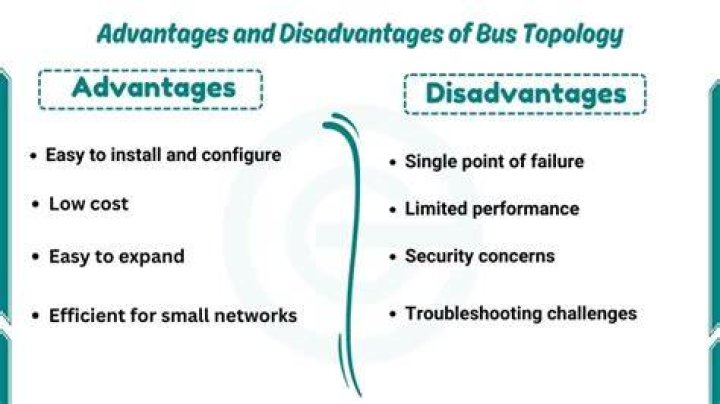

What is the advantages and disadvantages of bus topology?

Advantages and disadvantages of a bus networkThe disadvantages of a bus network are: if the main cable fails or gets damaged the whole network will fail. as more workstations are connected the performance of the network will become slower because of data collisions.

Similarly, what are the advantages of bus topology?

Advantages of Bus Topology: Easy to connect or remove devices in a network without affecting any other device. In case of any computer or device failure, there will be no effect on other devices or network. Cable cost is less as compared to other network topology i.e. mesh and star. It is easy to understand topology.

Additionally, what are the advantages and disadvantages of a ring topology? Advantages of Ring topology: Reduced chances of data collision as each node release a data packet after receiving the token. Token passing makes ring topology perform better than bus topology under heavy traffic. No need of server to control connectivity among the nodes. Equal access to the resources.

In this manner, what are the advantages and disadvantages of bus network?

Advantages and disadvantages Very easy to connect a computer or peripheral to a linear bus. Requires less cable length than a star network resulting in lower costs. The linear architecture is very simple and reliable. It works well for small networks.

What is tree topology advantages and disadvantages?

This topology is best to be used on larger network. The tree topology has some advantages such as it is highly flexible, centralized monitoring and point-to-point connection and the disadvantages of this topology is that it is difficult to configure, there is a single point of failure.

What is meant by bus topology?

A bus topology is a topology for a Local Area Network (LAN) in which all the nodes are connected to a single cable. The cable to which the nodes connect is called a "backbone". If the backbone is broken, the entire segment fails. The bus topology is e.g. used by Ethernet networks.

What are the advantages of topology?

Advantages of Star TopologyDue to its centralized nature, the topology offers simplicity of operation. It also achieves isolation of each device in the network. Adding or removing network nodes is easy, and can be done without affecting the entire network.

Which topology is best?

In a Star Network the best advantage is when there is a failure in cable then only one computer might get affected and not the entire network. Star topology is used to ease the probabilities of network failure by connecting all of the systems to a central node.

What is a disadvantage of a bus topology?

The disadvantages of a bus network are: if the main cable fails or gets damaged the whole network will fail. as more workstations are connected the performance of the network will become slower because of data collisions. every workstation on the network "sees" all of the data on the network – this is a security risk.

Why bus topology is used?

Bus topology uses one main cable to which all nodes are directly connected. The main cable acts as a backbone for the network. One of the computers in the network typically acts as the computer server. The first advantage of bus topology is that it is easy to connect a computer or peripheral device.

What do you mean by topology?

Network topology refers to the physical or logical layout of a network. It defines the way different nodes are placed and interconnected with each other. Alternately, network topology may describe how the data is transferred between these nodes. There are two types of network topologies: physical and logical.

Where is ring topology used?

Ring topologies may be used in either LANs (local area networks) or WANs (wide area networks). Depending on the type of network card used in each computer of the ring topology, a coaxial cable or an RJ-45 network cable is used to connect computers together.

What is bus topology with diagram?

Bus TopologyBus Topology Diagram. Bus topology uses a single cable which connects all the included nodes. The main cable acts as a spine for the entire network. One of the computers in the network acts as the computer server. When it has two endpoints, it is known as a linear bus topology.

What are the 5 network topologies?

Computer Network Topology – Mesh, Star, Bus, Ring and Hybrid

There are five types of topology in computer networks:
In mesh topology each device is connected to every other device on the network through a dedicated point-to-point link.
In star topology each device in the network is connected to a central device called hub.

What are the features of bus topology?

In a bus topology, all nodes or devices are linked with one transmitter or server computer via a single cable (mostly coaxial cable) called Backbone. All nodes are connected to the bus cable by drop lines. A drop line is a connection running between the nodes and the main cable.

What topology do schools?

Ring Network TopologyRing network topologies are most often found on school campuses, though some commercial organizations also use them. FDDI, SONET, or Token Ring technology are typically used. Data is transported bit by bit from each node until it reaches its destination.

What are the types of network topology?

Types of Network Topologies: The mapping of a LAN design is called Topology. There are four categories: Star topology, Bus topology, Ring topology and Mesh topology. Hybrid combinations of these topologies also exist.

How does star topology work?

In a star network, every host is connected to a central hub. In its simplest form, one central hub acts as a conduit to transmit messages. Data on a star network passes through the hub before continuing to its destination. The hub manages and controls all functions of the network.

What is advantage of tree?

Trees give off oxygen that we need to breathe. Trees reduce the amount of storm water runoff, which reduces erosion and pollution in our waterways and may reduce the effects of flooding. Many species of wildlife depend on trees for habitat. Trees provide food, protection, and homes for many birds and mammals.

What are the limitations of tree topology?

Disadvantages or limitations:

If central node or parent node will fail communication fail.
Configuration is more difficult then other topologies.
Security and privacy cant be guranted .
Overall length of segment is depend on the type of cabling used .
Heavy cabled .

What is point to point topology?

Point to Point topology is the simplest topology that connects two nodes directly together with a common link. The entire bandwidth of the common link is reserved for transmission between those two nodes. In Half duplex mode of communication, each node can transmit and receive but NOT at the same time.

What are the disadvantages of trees?

Apart from that old, damaged or otherwise weak trees may fall and endanger lives and property. Large, weak branches, too, are a hazard, especially if weighed wind storms. Another potential destructive effect of trees is that roots can potentially penetrate underground drainage pipes, especially when they leak.

What is hybrid topology with diagram?

Hybrid topology is an integration of two or more different topologies to form a resultant topology which has many advantages (as well as disadvantages) of all the constituent basic topologies rather than having characteristics of one specific topology.
