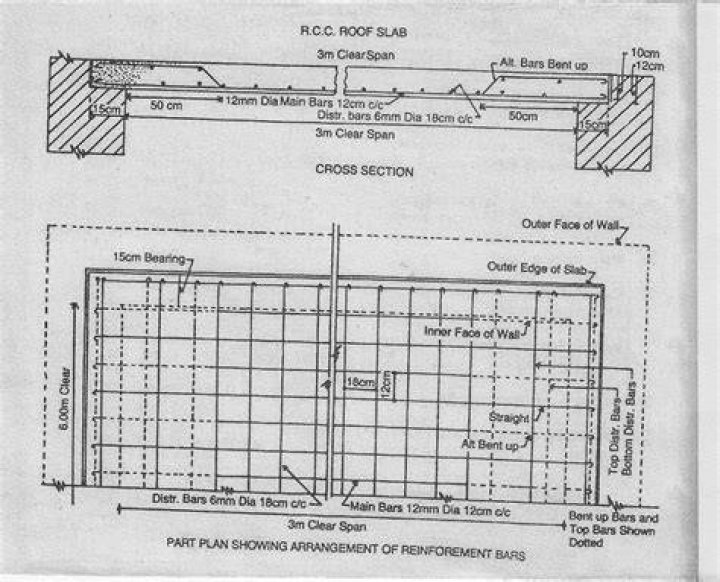

What is RCC roof slab?

RCC Roof Slab – In the construction industry, when they use the word concrete, they are talking about reinforced cement concrete, also known as RCC. The reinforced concrete features combined the strength of cement and steel bars which are the basic components of a modern structural design.

Just so, what is RCC slab?

RCC slab: reinforced cement concrete slab. It has a combination of steel bars and concrete. Steel bars are placed in concrete with calculated spacing. Cover thickness if concrete is provided around the bars. Bars are tied properly to avoid displacement during pouring of concrete.

Likewise, what is the thickness of roof slab? The overall thickness of slab is usually kept 10 cm though the minimum thickness can be 7.5 cm. The minimum area of reinforcement per unit width of a slab shall not be less than 0.15%.

Also Know, what is a roof slab?

Roof slabs are AutoCAD Architecture objects that you can use to model floors, roof faces, and other flat surfaces where edge conditions need to be specified. The slab or roof slab object is a three-dimensional (3D) body bounded by a planar polygon (perimeter) of any shape, and has multiple edges.

What are the types of slabs?

Concrete slabs, therefore, are further classified into one-way joist slab, flat slab, flat plate, waffle slab, hollow core slab, precast slab, slabs on grade, hardy slab, and composite slab.

Generally, slab on grade are classified into three types :

Slab on ground.
Stiffened raft slab.
Waffle raft slab.

How many types of RCC slabs are there?

RCC solid slabs are three types depending on design criteria. The slab rests on two beams only, The slab can be rested on four beams but the long-span of slab should be greater than two times of short-span.

What is the cost of RCC slab per sq ft?

Compare similar products from other sellers

	Rs 350/Number	Rs 50/Square Feet
Form	-	Solid
Material	CONCRETE	RCC
Shape	MANY	Square
Thickness	50	50 mm

What is slab structure?

A slab is a structural element, made of concrete, that is used to create flat horizontal surfaces such as floors, roof decks and ceilings. A slab is generally several inches thick and supported by beams,columns, walls, or the ground.

How much weight can a RCC slab take?

Imposed loads varies from approximately 1.5 kN/m² (153 kg/m²) in domestic buildings to approximately 10 kN/m² (1053 kg/m²) in heavy industrial areas. 500 kg/m² is typical for office, storage space and similar.

How thick should a concrete slab be?

4 inches

What is ratio of RCC?

Various Ratios of RCCGenerally 1:2:4 and 1:1.5: 3 ratios of RCC are used in construction work. RCC 1:2:4. Where cement concrete 1:2:4 is used; it means 1 part of cement 2 parts of fine aggregate/coarse sand and 4 parts of coarse aggregate.

What is the minimum thickness of RCC slab?

minimum thickness should not be less than 4.75 inches not forgetting factor of safety. How does an undersized grit affect RCC work in a slab and beam?

How many types of construction slabs are there?

16 different types

How far can a concrete slab span?

A one-way reinforced slab may be stronger than a two-way non-reinforced slab, depending on the type of load. One-way slabs are typically 150 to 400 mm in depth and cover spans of 3 to 12 m. Their span-depth ratio is roughly constant at low loadings (i.e. < 10 kN m^-²), and is typically around 36.

What is the purpose of a moment slab?

The moment slab reinforcement shall be designed to resist forces developed at the base of the barrier. The torsion capacity of the moment slab must be equal to or greater than the traffic barrier moment generated by the specified TL impulse load (TL-3, TL-4, TL-5) applied to the top of the barrier.

What are the different types of concrete slabs?

Concrete slabs

, therefore, are further classified into one-way joist slab, flat slab, flat plate, waffle slab, hollow core slab, precast slab, slabs on grade, hardy slab, and composite slab.

Generally, slab on grade are classified into three types :

Slab on ground.
Stiffened raft slab.
Waffle raft slab.

How is a slab constructed?

Slabs are constructed to provide flat surfaces, usually horizontal in building floors, roofs, bridges, and other types of structures. The slab may be supported by walls or by reinforced concrete beams usually cast monolithically with the slab or by structural steel beams or by columns, or by the ground.

How much does concrete slab cost?

A typical concrete slab costs $4 to $8 per square foot with most homeowners spending between $5.35 to $6.17 per square foot, or $113 to $126 per cubic yard for both materials and installation. Your final cost will depend on the slabs size, thickness, and if you any special reinforcement such as wire mesh or rebar.

How is slab construction done on site?

Concrete Floor Slab Construction Process. Concrete floor slab construction process includes erection of formwork, placement of reinforcement, pouring, compacting and finishing concrete and lastly removal of formwork and curing of concrete slab.

What is the difference between roof and slab?

As verbs the difference between roof and slabis that roof is to cover or furnish with a roof while slab is to make something into a slab.

Which grade of concrete is used for slab?

Generally M10 and M15 grades of concrete are used for leveling course, and bedding for footings. Standard concrete and concrete of grade M20 is applicable for Reinforced Cement Concrete (RCC) works for slabs, beams, columns and so on. The high strength concrete has its applications for high rise buildings.

What is the minimum slab thickness?

UBC recommends minimum thickness of Concrete floor slabs supported directly on the ground to be 89mm, whereas BCGBC4010A – Apply structural principles to residential low-rise constructions determined minimum thickness to be 100mm.

What is the minimum depth of slab?

Slab thickness requires a minimum clear distance of one-twelfth the distance between the ribs and not less than 2 inches.

What is the standard size of column?

Minimum size of an RCC column should not be less than 9” x 12” (225mm x 300mm) with 4 bars of 12 MM Fe415 Steel. These days the minimum I use in my projects is 9″ x 12″ (225 mm x 300mm) with 6 bars of 12 MM Fe500 steel. You can never go wrong with strong columns.
