What is R value of wood?
Emma Terry updates
.
Accordingly, what is the R value of a 2x4?
R-Value Table - English (US) Units
| Material | R/ Inch hr·ft2·°F/Btu | R/ Thickness hr·ft2·°F/Btu |
|---|---|---|
| Soft Wood Lumber | 1.25 | |
| 2" nominal (1 1/2") | 1.88 | |
| 2x4 (3 1/2") | 4.38 | |
| 2x6 (5 1/2") | 6.88 |
Also, what is the R value of glass? R-value is a measure of the resistance of the glazing to heat flow. It is determined by dividing the U-value into 1 (R-value = 1/U-value). A higher R-value indicates better insulating properties of the glazing.
Considering this, what is the R value of a 2x6 wall?
The installed insulation R-value for 2x6 fiberglass batt ranges between R-19 and R-21. When blown or sprayed cellulose insulation is used, the R-value is typically R-20 for 2x6 walls.
How good is wood as an insulator?
Wood is a natural insulator due to air pockets within its cellular structure, which means that it is 15 times better than masonry, 400 times better than steel, and 1,770 times better than aluminum. In addition, lightweight wood framing methods allow easy installation of additional fibre or foil insulation.
Related Question Answers
Can you put r19 in 2x4 walls?

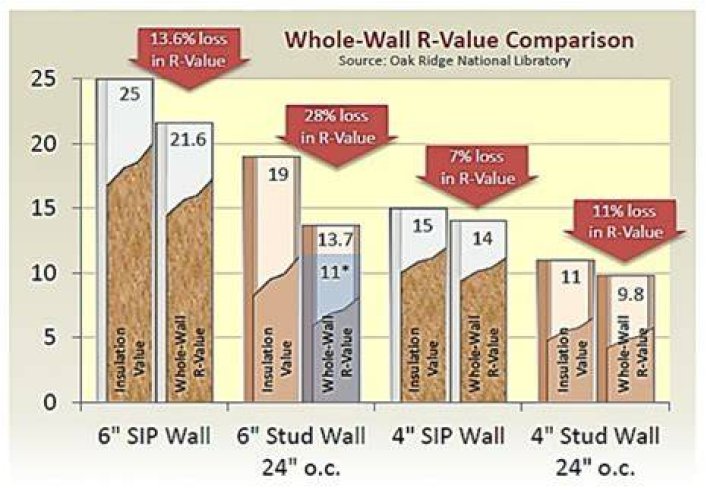

The normal R19 in a 2x4 wall will actually be far below R19 - probably no better and possibly lower than R13 insulation. R19 in a 2x6 wall does not really give you an R19 wall. It is about a R16 wall because of the feect of the "thermal short circuiting" through the studs.What is the unit of R value?
The R-Value is an imperial system unit of measurement (ft2·°F·h/BTU) and the RSI Value is a metric system unit of measurement (m2·K/W). The higher the resistance value, the slower the rate of heat transfer through the insulating material.What should the R value be for exterior walls?
Typical recommendations for exterior walls are R-13 to R-23, while R-30, R-38 and R-49 are common for ceilings and attic spaces. See the Department of Energy's (DOE) ranges for recommended levels of insulation below.What is the thinnest insulation with the highest R value?
OPTIM-R is Kingspan's thinnest insulation. It comprises of a rigid vacuum insulation panel with a micro porous core which is evacuated, encased and sealed in a thin, gas-tight envelope which gives an outstanding thermal conductivity of 0.007 W/m.K.What's the best insulation for 2x4 walls?
Insulation for 2x4 WallsIn most wall applications, you will use R-13 or R-15 kraft-faced fiberglass insulation rolls for these two-by-four stud walls.What is the highest R value for a 2x4 wall?
Fiberglass vats are the standard insulator for 2-inch by 4-inch wall framing, and are rated R-11 through R-15. In order to achieve the higher insulation R-value of R-21 a different type of insulation will be required.Is r19 insulation good for exterior walls?
R-19. Although the U.S. Department of Energy rates R-13 insulation as "good" for use in walls in southern areas of the country, it rates R-19 insulation higher, designating it as "great." That is because R-19 insulation provides more thermal insulation than R-13 does.What is the R value of 1 inch of wood?
A material's thermal resistance or resistance to heat flow is measured by its R-value. In a solid log wall, the logs provide both structure and insulation. The R-value for wood ranges between 1.41 per inch (2.54 cm) for most softwoods and 0.71 for most hardwoods.What is the best insulation for exterior walls?
What Insulation is Best for Exterior Walls?- Fiberglass has been used as a home insulation material for decades. It's affordable and effective, making it the go-to choice for many homebuilders and contractors.
- Cellulose is a great choice for insulating an enclosed existing wall with minimal demolition.
- Spray foam is applied wet and expands into thick, hard foam.
