Pitting is damage that is also caused by foreign material such as dirt or metal particles entering the bearing. Excessive contaminants and resulting raceway pitting. Grooving occurs when hard contaminants enter the bearing and get wedged in the cage and cut grooves in the rollers..
Also know, what causes pitting in bearings?
Pitting or cratering of a bearing is caused by relatively large charges of electricity. Electrical damage will cause early spalling and results in a noisy bearing which will have to be replaced. Improper Bearing Lubrication: Lack of or improper lubrication generally causes overheating or excessive wear in the bearing.

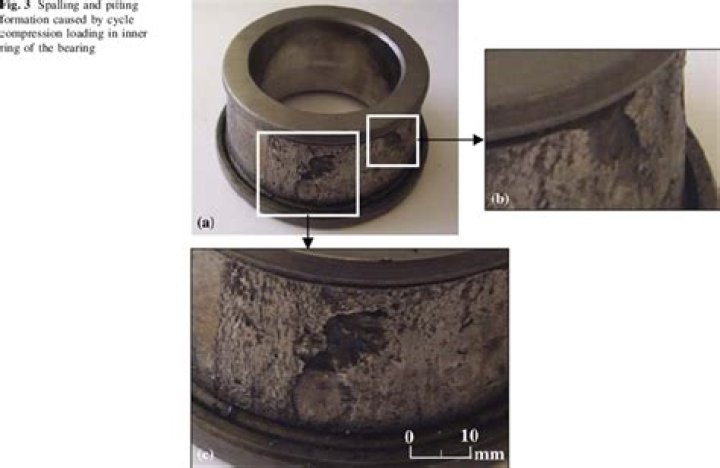

One may also ask, what is spalling in bearings? Spalling is the pitting or flaking away of bearing material. Spalling primarily. occurs on the races and the rolling elements.
Secondly, how do you know when roller bearings are bad?
How to tell if a ball or roller bearings is bad:
- Listen for a noise while machine is running.
- Turn off power to equipment, remove the components in order to gain access to the bearing.
- Inspect each ball or roller bearing visually for chipping, pitting and other wear and tear.
- Check roller housing for cracks and bends.
What is electrical pitting?
Electrical pitting is often called excessive voltage due to the common cause of an excessive voltage through a bearing. Electrical pitting can be seen on both rolling elements and raceways. Pits are caused by current flowing through the bearing to ground due to a potential difference.
Related Question Answers
What is the major cause of bearing failure?
Improper lubrication. Improper lubrication is the major cause of bearing failure. Issues include: too much lubricant; too little lubricant; using the wrong lubricant; mixing incompatible lubricants; incorrect lubrication intervals; using old, deteriorated grease or oil; and water contamination.What causes big end bearing failure?
Big end bearings are a pair of white metal shells that float on a film of oil, they never actually touch the crank. Failure is almost always caused by an oil pressure problem, reduced lubrication lets the bearing hit the crank, leading to a spun shell or complete bearing failure.What happens if bearings fail?
The bearings won't allow the wheel to turn freely, which exacerbates the problem. It also puts stress and strain on the hub, the CV joint, the axle, and the transmission. Ultimate damage: If you don't replace a damaged wheel bearing before it fails completely, the wheel will completely seize up.What is the difference between pitting and spalling PDF?
Pitting is defined to be the formation of shallow craters mainly due to surface defects while spalling appears as deeper cavities mainly owing to fatigue crack propagation [43] . Spalling occurs as cracks reach to a critical size, which is usually followed by the release of large quantities of wear debris [45].What temperature do bearings fail?
A simple rule for troubleshooting bearing temperatures: No more than 180 degrees Fahrenheit (82 degrees Celsius) on the housing. The bearing outer ring can be up to 20°F (11°C) hotter than the housing. The lubricant originally specified for the application was likely selected to run at lower temperatures.How would overheating show on bearing?
OverheatingHigh temperatures can cause grease to bleed (purge the oil), which reduces the lubricant's efficiency. In elevated temperature conditions, oxidation can lead to the loss of lubricating oils from the grease, leaving a dry, crusty soap that can seize the bearing.What is bearing and its types?
Bearings are mechanical assemblies that consist of rolling elements and usually inner and outer races which are used for rotating or linear shaft applications, and there are several different types of bearings, including ball and roller bearings, linear bearings, as well as mounted versions that may use either rollingWhat is true about tapered roller bearings?
The tapered roller bearing's geometry allows true rolling motion of the roller between the raceways, which means the rollers are unlikely to skid or slide when unloaded. Other roller bearings have minimal load requirements to insure the roller actually rolls and does not slide between the raceways.How hard is a bearing race?
Bearing races are most often manufactured from 52100 steel, (bearing quality chrome steel), which is valued for its mechanical strength, high hardness and excellent wear resistance for bearing parts. Hardness is typically Rockwell C 58 to 62.What is a bearing cup?
Tapered roller bearing cups, or bearing races, are the outer ring around which the bearing rides. Combine roller bearing cups with tapered roller bearing cones to create tapered roller bearings that allow you to carry maximum combinations of radial and thrust loads simultaneously.What is Brinelling damage?
Brinelling is a material surface failure caused by Hertz contact stress that exceeds the material limit. It usually occurs in situations where a significant load force is distributed over a relatively small surface area.What type of load is a tapered roller bearing designed to handle?
4. Tapered roller bearings are designed to withstand a radial and thrust load, and can be found in car hubs due to the amount of radial and thrust loads they can carry. In a tapered roller bearing, the rings and the rollers are tapered in the shape of truncated cones to simultaneously support axial and radial loads.What is Brinelling in ball bearing?
Bearing failure comes in many forms, such as corrosion, smearing and brinelling. Brinelling causes wear in which, similar marks are pressed into the surface of a moving part, such as bearings or hydraulic pistons. It is usually undesirable as the parts often work with other parts close to each other.
