What is modulation and its type?

There are 3 basic types of modulation: Amplitude modulation, Frequency modulation, and Phase modulation. a type of modulation where the frequency of the carrier signal is modulated (changed) in proportion to the message signal while the amplitude and phase are kept constant.

Hereof, what is called modulation?

In electronics and telecommunications, modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal, with a modulating signal that typically contains information to be transmitted. A modem (from modulator–demodulator) can perform both operations.

Additionally, what is analog and digital modulation? Both analog and digital modulation use smoothly varying signals; the difference is that an analog-modulated signal is demodulated into an analog baseband waveform, whereas a digitally modulated signal consists of discrete modulation units, called symbols, that are interpreted as digital data.

Considering this, what is modulation and demodulation?

Modulation is the process of influencing data information on the carrier, while demodulation is the recovery of original information at the distant end from the carrier. A modem is an equipment that performs both modulation and demodulation.

Why is modulation used?

Modulation allows us to send a signal over a bandpass frequency range. If every signal gets its own frequency range, then we can transmit multiple signals simultaneously over a single channel, all using different frequency ranges. Another reason to modulate a signal is to allow the use of a smaller antenna.

What are the benefits of modulation?

Following are some of the advantages for implementing modulation in the communication systems.

Antenna size gets reduced.
No signal mixing occurs.
Communication range increases.
Multiplexing of signals occur.
Adjustments in the bandwidth is allowed.
Reception quality improves.

What is difference between AM and FM?

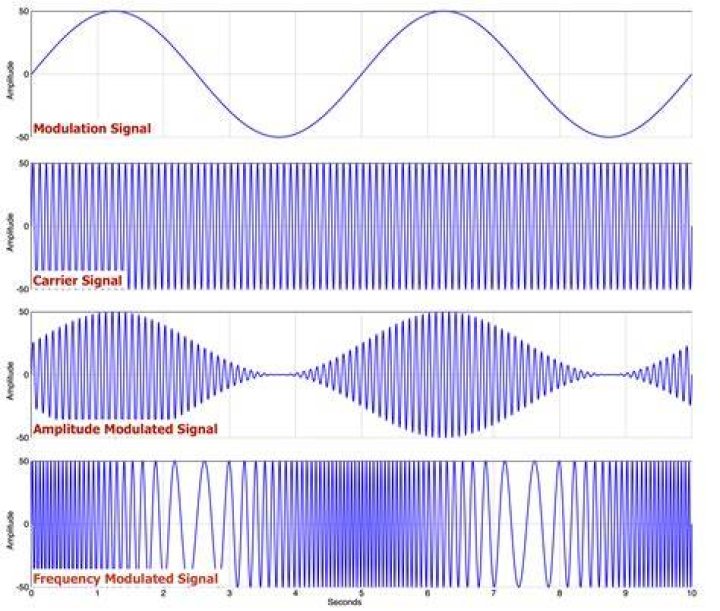

The difference is in how the carrier wave is modulated, or altered. With AM radio, the amplitude, or overall strength, of the signal is varied to incorporate the sound information. With FM, the frequency (the number of times each second that the current changes direction) of the carrier signal is varied.

How is modulation done?

Modulation is what takes a signal from low frequencies (the message) and pulls it up to a higher frequency (the carrier). The idea is simple: Multiply your message by a high frequency carrier, such as 680 kHz. Voila, that's AM radio!

What is modulation technique?

Modulation is the process of converting data into electrical signals optimized for transmission. Modulation techniques are roughly divided into four types: Analog modulation, Digital modulation, Pulse modulation , and Spread spectrum method.

What type of modulation is used in cell phones?

GSM cell phones widely use a popular combination, Gaussian filtered MSK (GMSK), which allows a data rate of 270 kbits/s in a 200-kHz channel. A very popular digital modulation scheme, binary phase shift keying (BPSK), shifts the carrier sine wave 180° for each change in binary state (Fig. 2).

How is frequency modulation done?

What is frequency modulation, FM? To generate a frequency modulated signal, the frequency of the radio carrier is changed in line with the amplitude of the incoming audio signal. When the audio signal is modulated onto the radio frequency carrier, the new radio frequency signal moves up and down in frequency.

What is modulation in speech?

Modulation is when you control or adjust something, like when you lower your voice to a loud whisper in order to make what you're saying more dramatic and mysterious. The noun modulation has several meanings, including a change of key in music or of the sound of a person's voice.

How many types of Modulans are there?

Amplitude modulation and frequency modulation are two types of analog signal modulation explained here.

What is modulation in biology?

1. To regulate or adjust to a certain degree: physiological mechanisms that modulate the body's metabolic rate. 2. Biochemistry To act on (a receptor, for example) as an activator, an inhibitor, or both. mod′u·la·bil′i·ty n.

What do you mean by repeater?

In telecommunications, a repeater is an electronic device that receives a signal and retransmits it. Repeaters are used to extend transmissions so that the signal can cover longer distances or be received on the other side of an obstruction.

What is the importance of modulation index?

significance of modulation index. It is used to determine the strength and quality of transmitted signal. If the modulation index is small, then the amount of variation in the carrier amplitude is small.

What is the difference between analog or digital?

In analog technology, a wave is recorded or used in its original form. So, for example, in an analog tape recorder, a signal is taken straight from the microphone and laid onto tape. In digital technology, the analog wave is sampled at some interval, and then turned into numbers that are stored in the digital device.

What is analog modulation system?

Analog modulation refers to the process of transferring an analog baseband (low frequency) signal, like an audio or TV signal over a higher frequency signal such as a radio frequency band. Several variants of amplitude modulation are used in practice.

What is the advantage of analog over digital?

The advantages of an analog recording system are the absence of aliasing distortion and quantization noise; the wide dynamic range; and performance in overload conditions. Digital systems, meanwhile, have better audio recording quality and an easier integration to personal computers and software applications.

How do you convert analog to digital?

ADCs follow a sequence when converting analog signals to digital. They first sample the signal, then quantify it to determine the resolution of the signal, and finally set binary values and send it to the system to read the digital signal. Two important aspects of the ADC are its sampling rate and resolution.
