What is meant by Variac?
Christopher Davis general
.
Keeping this in consideration, what does a variac do?
Variacs provide a voltage-adjustable source of alternating current (AC) electricity. Usually plugged into a wall outlet (120 volts AC at 60 Hertz in the USA), they have a knob-controlled output that can range from 0 volts AC (VAC) to about 140VAC, depending on how the winding is connected (see below).

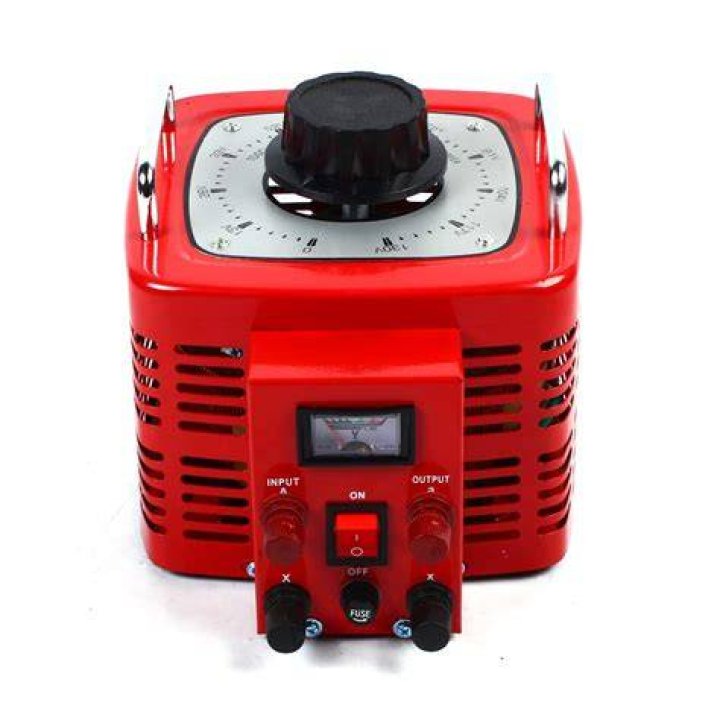

what is a variable transformer? A variable transformer is one in which the secondary winding can be adjusted. This picture is of a “Variac”: It is a variable transformer that is capable of ranging the voltage from 0 to 240 volts AC at 20 amps. There is only 1 winding and 240 volts is applied across it.
Also know, what is variac 1phase?
A single phase variac or any variac for that matter is a device which operates on 2 essential principles: Magnetic Induction by Faraday's Law. Electrical Conduction as in a normal Potential Divider Arrangement.
What are autotransformers used for?
The autotransformer has many uses and applications including the starting of induction motors, used to regulate the voltage of transmission lines, and can be used to transform voltages when the primary to secondary ratio is close to unity.
Related Question Answers
What is the principle of the variac supply?
Variac is the trademark name of a variable autotransformer. Variac provides a voltage-adjustable source of alternating current (AC) electricity. A variable autotransformer is a single-coil transformer in which two portions of the same coil are used as the primary and the secondary.Why are transformer rated in kVA?
Iron loss and copper loss occurring in the transformer are also independent of the power factor. Transformers are rated in kVA because the losses occurring in the transformers are independent of power factor. KVA is the unit of apparent power. It is a combination of real power and reactive power.How does an autotransformer work?
Auto Transformer. An Auto Transformer is a transformer with only one winding wound on a laminated core. An auto transformer is similar to a two winding transformer but differ in the way the primary and secondary winding are interrelated. An Auto transformer works as a voltage regulator.What is a single phase variac?
Single Phase Variac. Variacs or variable auto transformer is a continuously variable voltage transformer, having a single layer winding on a toroidal core of high grade steel.What is the use of polarity test?
The purpose of a polarity test to ensure that all single pole devices (fuses, switches and circuit breakers) are connected in the phase conductor only.What is the purpose of a isolation transformer?
Isolation transformers provide galvanic isolation and are used to protect against electric shock, to suppress electrical noise in sensitive devices, or to transfer power between two circuits which must not be connected. Suitably designed isolation transformers block interference caused by ground loops.What is variac 3phase?
Product DescriptionThree Phase Open Type Variac : Available Range : 2 Amp. to 500 Amp. with Hand Operate or Motor Operate System. Price Range:- Price for this product lies between 900/- to 200000/-What is Dimmerstat?
Dimmerstat is controlling device used in electrical circuits. Generally they are resistance coil/induction coil serve as like as a potentiometer/autotransformer does. Dimmerstat is used to adjust the output potential/voltage to an electrical circuits. Volume controller of old radio set is a good example of dimmerstat.What is the use of single phase variac?
Single Phase Variac. A variable auto transformer provides continuously adjustable AC voltage. In it's Auto transformer form it is an efficient, reliable method of controlling AC voltage from zero to line voltage by amplitude modulation of the AC waveform.What is the other name of auto transformer?
An autotransformer is an electrical transformer with only one winding. The "auto" (Greek for "self") prefix refers to the single coil acting alone, not to any kind of automatic mechanism.What is an Autoformer?
An auto transformer or autoformer is a special type of transformer that employs a single non-isolated winding to step up or step down the available line voltage to match the requirements of the load.Why autotransformer is used in substation?
An Auto transformer works as a voltage regulator. So basically it's a one winding transformer. It is used to compensate voltage drops by boosting supply voltage in distribution systems. Auto transformers are often used in substations for step up/step down where the ratio of high to low voltage is small (less than 4).What is the difference between transformer and autotransformer?
An autotransformer has only one winding which acts both as a primary and the secondary whereas the conventional transformer has a two separate windings, i.e., the primary and the secondary winding. The auto-transformer is smaller in size, whereas the conventional transformer is larger in size.What is a double wound transformer?
A “double wound” Transformer, in technical terms, is a Transformer with two windings which are Electrically isolated from each other. In contrast, another Transformer known as “Auto Transformer” also has two windings but they are electrically connected to each other.What is a Powerstat used for?
POWERSTAT® Variable TransformersThey take in utility line voltage and provide continuously adjustable output voltage. Rugged, and designed for heavy duty use, POWERSTAT® Variable Transformers provide excellent power regulation with negligible variation in output voltage from no-load to full-load current.How do you reform a capacitor with a Variac?
Bus Capacitor Reforming Procedure using AC input:Connect the inverter input L1, L2, and L3 to a 3 phase variac. Make sure the *VARIAC voltage setting is turned down so that when input power is applied to the variac the output of the variac will be at or near 0 Volts.How do you use a variac on a guitar amp?
Connect the power cord for your amp to the output of a variac. Set the variac for normal output and power up your amp. Let it warm up at normal voltage for 20 to 30 minutes. Then begin playing your amp at a moderate volume while SLOWLY turning down the output voltage of the variac.What is the variable for voltage?
| Voltage | |
|---|---|
| Common symbols | V , ∆V , U , ∆U |
| SI unit | volt |
| Derivations from other quantities | Voltage = Energy / charge |
| Dimension | M L2 T−3 I−1 |
How many types of transformer are there?
three
