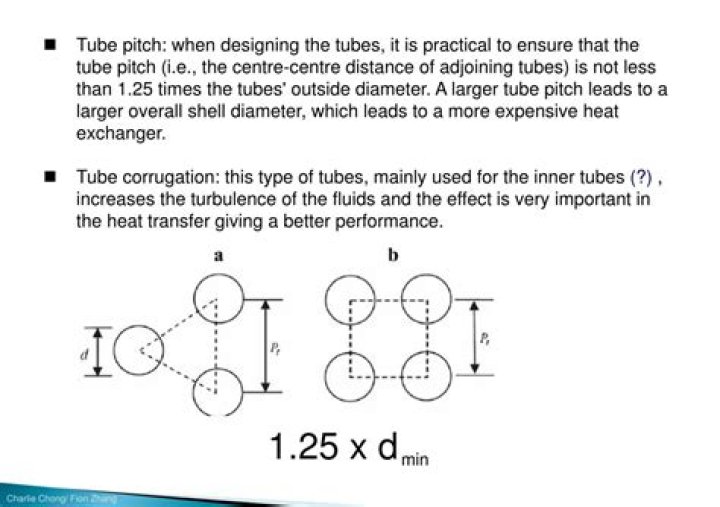

What is meant by tube pitch for heat exchanger?
Emma Terry updates
.
In respect to this, what is a tube sheet in a heat exchanger?
A tube sheet is usually made from a round flat piece of plate,sheet with holes drilled to accept the tubes or pipes in a accurate location and pattern relative to one another. The tube sheets are used to support and isolate tubes in heat exchangers and boilers or to support filter elements.
which type of exchanger can be used for thermal expansion of tubes? A U-tube shell and tube heat exchanger is a popular deterrent for the potential damages of thermal expansion because the side of the tubes with the U-bend is expected to absorb the heat that leads to swelling, thus saving the fixed side from the stress.
Hereof, how does a tube heat exchanger work?
A shell and tube heat exchanger is a class of heat exchanger designs. One fluid runs through the tubes, and another fluid flows over the tubes (through the shell) to transfer heat between the two fluids.
What is heat exchanger rating?
In a rating problem, the geometry and size of the heat exchanger are fully specified. Entering flow rates and fluid temperatures are known. The job is to calculate the thermal effectiveness (heat transferred) and pressure drop of each stream. Normally, pressure drop limits are given for each fluid stream.
Related Question Answers
What are the two types of heat exchangers?
There are two main types of regenerative heat exchangers—static heat exchangers and dynamic heat exchangers.What is the purpose of heat exchanger?
A heat exchanger is a device that allows heat from a fluid (a liquid or a gas) to pass to a second fluid (another liquid or gas) without the two fluids having to mix together or come into direct contact.How many types of heat exchangers are there?
What are the different types of heat exchanger?- Parallel-flow and counter-flow heat exchanger.
- Finned and Unfinned tubular heat exchanger.
- U-tube, single pass straight and two pass straight heat exchanger.
- Plate-and-frame heat exchanger.
- Pate-fin heat exchanger.
- Microchannel heat exchanger.
What is the purpose of a shell and tube heat exchanger?
Why are Shell and Tube Heat Exchangers Used? Shell and tube heat exchanger is used in various industrial process applications because they can perform tasks such as: Removal of process heat and feed water preheating. Cooling of hydraulic and lube oil.What is Tubesheet?
A tube sheet is a plate which is used to support the tubes in a shell-and-tube heat exchanger. The tubes are aligned in a parallel way, and supported and held in place by tube sheets. The tube sheet is a circular plate which is perforated so that the tubes can fit through the openings.Which heat exchanger is more effective?
The exchanger is performing at its best when the outlet temperatures are equal. Counter flow heat exchangers are inherently more efficient than parallel flow heat exchangers because they create a more uniform temperature difference between the fluids, over the entire length of the fluid path.Which heat exchanger is most efficient?
Each of the three types of heat exchangers (Parallel, Cross and Counter Flow) has advantages and disadvantages. But of the three, the counter flow heat exchanger design is the most efficient when comparing heat transfer rate per unit surface area.What type of heat exchanger is a condenser?
A surface condenser is one in which condensing medium and vapors are physically separated and used when direct contact is not desired. It is a shell and tube heat exchanger installed at the outlet of every steam turbine in thermal power stations.Can a heat exchanger be repaired?
Unfortunately, heat exchangers cannot be repaired. When a heat exchanger cracks or rusts through it must be replaced. Because the heat exchanger is at the center of the furnace, nearly the whole furnace must be disassembled. Even if the parts are covered under warranty, the labor and freight will start around $500.How do you stop a fouling heat exchanger?
The best way to avoid particulate fouling is to keep the cooling water clean and thereby prevent particles from entering the heat exchanger. However, in all cooling systems, and especially when using open cooling systems (with cooling towers), there will always be particles present in the cooling water.Is a radiator a heat exchanger?
Radiators are heat exchangers used to transfer thermal energy from one medium to another for the purpose of cooling and heating. The majority of radiators are constructed to function in automobiles, buildings, and electronics.What is a heat exchanger made of?
Plate and fin heat exchangers are usually made of aluminum alloys, which provide high heat transfer efficiency.How do you measure baffle spacing?
number of baffles can then be calculated by = ( tube length/baffle spacing ) - 1. However this formula assumes that inlet and outlet spacing are same as central spacing. However this may or may not be optimum baffle spacing.What is thermal fatigue?
Thermal fatigue is a specific type of fatigue failure mechanism that is induced by cyclic stresses from repetitive fluctuations in the temperature of equipment. The degree of damage is affected by the magnitude and frequency of the temperature swings.What is bundle diameter in heat exchanger?
1. “D” Bundle Diameter - This is the overall diameter required to fit the bundle in an existing shell or tank. This dimension includes any baffles or tube supports. A good way to get an accurate “D” diameter is to measure the circumference and divide by 3.14. This gives you the diameter of the bundle.How many tubes are in a tube and shell heat exchanger?
9600 tubes
