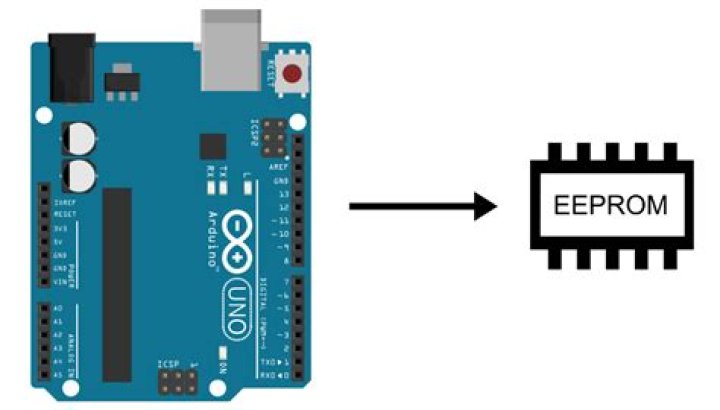

What is Eeprom in Arduino?
Daniel Moore general
.
In respect to this, how read and write eeprom in Arduino?
EEPROM Write. The microcontroller on the Arduino and Genuino boards have 512 bytes of EEPROM: memory whose values are kept when the board is turned off (like a tiny hard drive). This example illustrates how to store values read from analog input 0 into the EEPROM using the EEPROM. write() function.
One may also ask, how do you read a eeprom? Reading from the EEPROM basically follows the same three step process as writing to the EEPROM:
- Send the Most Significant Byte of the memory address that you want to write to.
- Send the Least Significant Byte of the memory address that you want to write to.
- Ask for the data byte at that location.
Considering this, how many times can you write to Arduino eeprom?
While it is easy to use EEPROM in the Arduino, it does have a limited life. EEPROM is specified to handle 100,000 read/erase cycles. This means you can write and then erase/re-write data 100,000 times before the EEPROM will become unstable.
Can an Arduino store data?
If connected to a computer, the data can be saved by reading the serial output and storing that in a file. If there is an SD card connected to the Arduino, the data can be saved directly to the SD card.
Related Question Answers
What is Eeprom used for?
Electrically Erasable Programmable Read-Only Memory (EEPROM) is a stable, non-volatile memory storage system that is used for storing minimal data quantities in computer and electronic systems and devices, such as circuit boards.How does eeprom work?
The EEPROM uses the principle same as that of the UV-EPROM. In EPROM , cell is erased when electrons are removed from the floating gate, whereas in EEPROM , cell is erased when electrons are trapped in the floating cell. There are two distinct EEPROM families: serial and parallel access.What does Arduino mean?
Definition - What does Arduino mean? Arduino refers to an open-source electronics platform or board and the software used to program it. Arduino is designed to make electronics more accessible to artists, designers, hobbyists and ayone interested in creating interactive objects or environments.What is SRAM in Arduino?
Flash memory (program space), is where the Arduino sketch is stored. SRAM (static random access memory) is where the sketch creates and manipulates variables when it runs. EEPROM is memory space that programmers can use to store long-term information.What is the full form of eeprom?
What does EEPROM mean? Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in computers and other electronic devices to store small amounts of data. EEPROM can be erased and reprogrammed through the application of electrical charge.How data is stored in eeprom?
EEPROM stands for Electronically Erasable Programmable Read Only Memory which is a type of non-volatile memory used in various electronic devices to store relatively small amount of data. The EEPROM allows the data to be read, written and erased on byte level. The ATmega328/P contains 1K bytes of EEPROM memory.Is eeprom flash memory?
Flash memory is a type of electronically-erasable programmable read-only memory (EEPROM), but it can also be a standalone memory storage device such as USB drive. It is a non-volatile memory chip used for storage and for transferring data between a PC and other digital devices.What is the use of eeprom?
EEPROM (also E2PROM) stands for electrically erasable programmable read-only memory and is a type of non-volatile memory used in computers, integrated in microcontrollers for smart cards and remote keyless systems, and other electronic devices to store relatively small amounts of data but allowing individual bytes toHow many times can an Eprom be erased?
A flash EPROM is similar to an EEPROM except that flash EPROMs are erased all at once while a regular EEPROMs can erase one byte at a time. In- circuit writing and erasing is possible because no special voltages are required.Does reading eeprom wear it out?
2 Answers. No, they can't be damaged only by reading. Data will slowly degrade over time (we're talking many years) due to bit rot if the contents of the flash are not periodically rewritten.How do I write in eeprom Arduino?
write()- Description. Write a byte to the EEPROM.
- Syntax. EEPROM.write(address, value)
- Parameters. address: the location to write to, starting from 0 (int) value: the value to write, from 0 to 255 (byte)
- Returns. none.
- Note. An EEPROM write takes 3.3 ms to complete.
- Example. #include <EEPROM.h>
- See also. EEPROM.read()
How eeprom is erased?
It is an array of floating-gate transistors individually programmed by an electronic device that supplies higher voltages than those normally used in digital circuits. Once programmed, an EPROM can be erased by exposing it to strong ultraviolet light source (such as from a mercury-vapor lamp).How many times can eeprom be written to?
The Atmega328 EEPROM can be written about 100k times.Does Arduino have memory?
The Arduino UNO has only 32K bytes of Flash memory and 2K bytes of SRAM. That is more than 100,000 times LESS physical memory than a low-end PC!Does esp8266 have eeprom?
ESP8266 have 512 bytes of internal EEPROM, it is useful when you want to store some settings, such as IP address of server, WEP key, SSID of WiFi. We also discuss on writing string into EEPROM and reading it.What is Arduino Nano?
The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328P (Arduino Nano 3. x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.How do I reprogram my eeprom?
Fast and Easy Flash and EEPROM Programming- Interface to the PC. In-System.
- Start the software and connect the device. Launch the Flash Center Software and click the "Add Adapters" button to open a dialog window displaying available Total Phase adapters.
- Select a Flash memory or EEPROM part.
- Program the data!
