Similarly, it is asked, why is pump recirculation required?
Recirculation is defined as returning the pump discharge flow to the point where the pump has suction so that a minimum flow requirement of the pump is ensured through the pump (even when there is low/no load demand to the system from the pump).
Beside above, what is pump minimum flow? The term minimum flow generally meant the lowest continuous flow at which the pump was permitted to operate. These values did not take into account duration, vibration level or other factors. Today, we have minimum flow values for continuous operation, for intermittent operation and for permissible temperature rise.
Also to know is, how does a balance drum work?

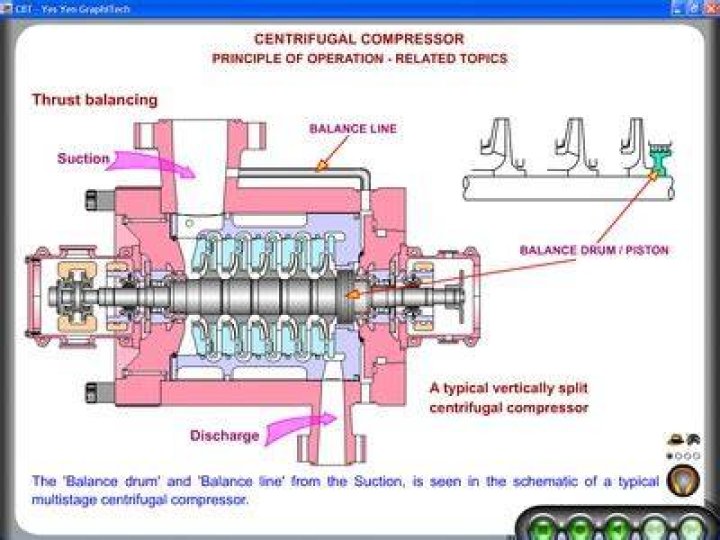

THE BALANCING DRUM IS A HOLLOW CYLINDER MOUNTED ON PUMP SHAFT (RED ONE IN THE DRAWING). PRESSURE ACTS ON THE DRUM TOWARDS LEFT AND TOWARDS RIGHT ON THE IMPELLER. THESE TWO CANCEL EACH OTHER THEREBY REDUCING AXIAL THRUST.
What is axial thrust?
Axial thrust refers to the unbalanced force acting on the rotor of a pump that tends to displace it in an axial direction or along the axis of its rotation. Axial thrust is one of the hydralic force.
Related Question Answers
What is a recirculation line?
A recirculation system ensures that everybody has hot water all the time. With a recirculation line, or recirc as those in the trade say, water flows continually through the piping, drawn either by gravity or a pump back to the water heater from the farthest point in the plumbing.What is recirculation rate?
CYCLES OF CONCENTRATION, WATER BALANCEWater circulates through the process exchangers and over the cooling tower at a rate referred to as the "recirculation rate." Water is lost from the system through evaporation and blowdown.How do you prevent deadheading a pump?
A centrifugal pump can be protected from the effects of deadheading by fitting a line, upstream of the outlet valve, to recycle liquid back to the inlet valve. The diameter of the line should be sufficient to recycle enough liquid to prevent the pump overheating.What is best efficiency point of pump?
The Best Efficiency Point is defined as the flow at which the pump operates at the highest or optimum efficiency for a given impeller diameter. When we operate a pump at flows greater than or less than the flow designated by the BEP, we call this “operating pumps away from the Best Efficiency Point”.What will happen if discharge valve of centrifugal pump is closed?
So when discharge valve is closed, the pressure in the discharge will tend to increase which will lead the water to come back to the pump impeller section and so the pressure difference between suction and discharge will go on decreasing and when the discharge pressure reaches shut down pressure then there will be noWhat is bypass line in piping?
A bypass is a system of pipes and valves - a manifold - to divert the flow around a specific piping or valve structure. It's also a temporary diversion of flow around a part of a water or sewer system that allows flow to continue when the primary line is blocked or undergoing repair or rehabilitation.What is a pump balance line?
Balance line is used to balance the centrifugal pump shaft from axial thrust. Due to the axial thrust, pump bearings and internals will get damaged. To nullify this effect, a tapping from discharge end is connected to a balancing drum. Balance line is used to balance the centrifugal pump shaft from axial thrust.How does an automatic recirculation valve work?
How the Automatic Recirculation Valve Operates. The heart of the automatic recirculation valve is a check valve disk that is used to sense the fluid's flow rate. The valve disk is not pressure sensitive but rather flow sensitive. It controls the flow to ensure that a specified volume of the fluid passes through.What is pump runout?
Pump runout, or runout flow, is the maximum flowrate that can be developed by a pump. The runout conditions correspond to a very small pump head, while the flow rate is maximal. The performance curve (published by pump manufacturer) is typically cut off at some point beyond the pump's allowable operating range (AOR).How do you read a pump curve?
When you're reading a curve, the pump's flow rate will be on the top and bottom and its height to push is on the sides. You'll want to select the flow rate your application requires by drawing a line up on the chart then select your desired height by drawing a line to the right.What is flow in pump?
Flow is the volume of liquid that passes through a pump in a given time period. The flow of a pump is the amount of liquid that passes through the pump. There are two parts to a measurement of flow: Volume of liquid.How do you calculate pump minimum flow?
If you need to operate a centrifugal pump back on the curve, the minimum suggested point is at 10% of BEP (Best Efficiency Point). For example, a 620 pump with a full impeller has a BEP of 44% at 24 GPM. Therefore, the minimum flow should be limited to 10% of 24 or 2.4 GPM.What is Mcsf pump?
MCSF is an acronym that stands for Minimum Continuous Stable Flow. It is the minimum flow that must be maintained through a pump to avoid excessive recirculation at the impeller inlet. When a pump is operating at BEP flow through the impeller is very stable and uniform.How do you fix a pump cavitation?
Try the following:- Reduce motor speed (RPMs).
- Install an impeller inducer.
- Incorporate a booster pump into your pump system.
- If possible, reduce the temperature of your pump, liquid, and/or other components.
- Increase liquid level around the suction area.
What are the implications of the minimum flow required by a pump?
Operating pumps at below minimum flow can result in the following consequences:- Pitted/worn impeller vanes.
- Overheated casing/bearings.
- Excessive noise or vibration.
- Broken shafts.
- Mechanical seal failures.
- Poor performance efficiency.
