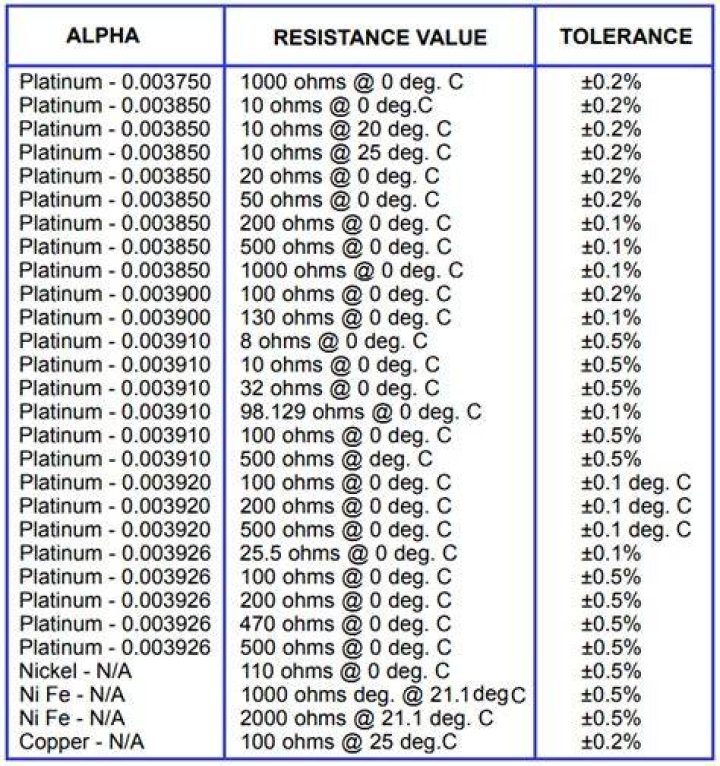

What is Alpha in RTD?
Christopher Davis .
Similarly, it is asked, what is the meaning of RTD?
RTD stands for Resistance Temperature Detector. RTDs are sometimes referred to generally as resistance thermometers. The American Society for Testing and Materials (ASTM) has defined the term resistance thermometer as follows: Resistance thermometer, n.
Furthermore, what is RTD and how it works? An RTD works by using a basic principle; as the temperature of a metal increases, so does the resistance to the flow of electricity. An electrical current is passed through the sensor, the resistance element is used to measure the resistance of the current being passed through it.
People also ask, what are the types of RTD?
The three main categories of RTD sensors are thin-film, wire-wound, and coiled elements. While these types are the ones most widely used in industry, other more exotic shapes are used; for example, carbon resistors are used at ultra-low temperatures (−273 °C to −173 °C).
How do you use an RTD?
There are essentially three different methods to measure temperature using RTDs. Connect the red RTD lead to the excitation positive. Place a jumper from the excitation positive pin to the channel positive on the data acquisition device. Connect the black (or white) RTD lead to the excitation negative.
Related Question Answers
How does a RTD work?
An RTD works by using a basic principle; as the temperature of a metal increases, so does the resistance to the flow of electricity. An electrical current is passed through the sensor, the resistance element is used to measure the resistance of the current being passed through it.What is difference between RTD and thermocouple?
RTD vs Thermocouple. In contrast, certain thermocouples can be used to measure up to 2700 degrees Fahrenheit. RTDs are superior to thermocouples in that their readings are more accurate and more repeatable. Repeatable means that users reading the same temperatures produce the same results over multiple trials.How does a 3 wire RTD work?
The Industry Standard: 3 Wire RTDTo compensate for lead wire resistance, 3 wire RTDs have a third wire that provides a measurement of the resistance of the lead wire and subtracts this resistance from the read value. Because 3 wire RTDs are so effective and affordable, they have become the industry standard.Where is a thermocouple used?
Applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered appliances.How many types of RTD sensors are there?
There are four types of temperature sensors that are most commonly used in modern-day electronics: thermocouples, RTDs (resistance temperature detectors), thermistors, and semiconductor based integrated circuits (IC).How does pt100 RTD work?
The principle of operation is to measure the resistance of a platinum element. The most common type (PT100) has a resistance of 100 ohms at 0 °C and 138.4 ohms at 100 °C. For precision work, sensors have four wires- two to carry the sense current, and two to measure the voltage across the sensor element.What are the advantages of RTD?
The major advantages that an RTD has over Thermocouples are: Stability, Precision, and Repeatability. The disadvantages are the price and response time. The following table explains in more detail. Stability is the ability of a sensor to measure temperature with precision for a given length of time.What is full form of RTD?
Resistance Temperature Detector
How many types of thermocouples are there?
Thermocouple Grade Wire
| Calibration Type | Temperature Range | |
|---|---|---|
| K | 32 to 2282°F | 0 to 1250°C |
| E | 32 to 1652°F | 0 to 900°C |
| T | 32 to 662°F | 0 to 350°C |
| R or S | 32 to 2642°F | 0 to 1450°C |
What is the difference between pt100 and thermocouple?
The measuring range of these PT100 temperature sensors lies between -200ºC and 850ºC. On the other hand, the thermocouple is to be considered a voltage source whereby the voltage increases linearly as the temperature rises.What does pt100 mean?
PT 100 RTD (Resistance Temperature Detector) stands for Platinum 100 means 100 ohms at 0°C.they are used for accurate measurements as they ve linear temp. and resist.What is thermocouple and its types?
Thermocouples consist of two wire legs made from different metals. Type J, K, T, & E are “Base Metal” thermocouples, the most common types of thermocouples.Type R, S, and B thermocouples are “Noble Metal” thermocouples, which are used in high temperature applications (see thermocouple temperature ranges for details).What is thermocouple principle?
The operating principle of the thermocouple is based on the Peltier effect. The thermocouple circuit consists of two metals joined together to form two junctions of different temperatures. Another body, whose temperature is known, is connected to the other junction, known as the cold or reference junction.What does RTD mean in business?
RTD – Real-time data.How does RTD and thermocouple works?
Linearity: The temperature-resistance relation in RTD is almost lineal in the sensor range, while a thermocouple has an 'S'-type plot. Stability: RTD probe readings stay stable and repeatable for a long time. Thermocouple readings tend to drift because of chemical changes in the sensor (such as oxidation).What does RTD mean in boxing?
A corner retirement or corner stoppage, abbreviated "RTD" by BoxRec, are terms used in boxing to describe a fight that ends when, during any rest period between rounds, a boxer refuses to continue or their corner pulls them out, thereby forcing the referee to call an end to the fight.What do you mean by transducer?
A transducer is a device that converts energy from one form to another. Usually a transducer converts a signal in one form of energy to a signal in another. The process of converting one form of energy to another is known as transduction.What is RTD pt100 sensor?
RTD (PT100) Sensors. Most resistance temperature detectors (RTDs) consist of a fine wire (typically platinum) wrapped around a ceramic core, exhibiting a linear increase in resistance as temperature rises.What is the output of RTD?
Specifications
| RTD Input | |
|---|---|
| Calibration, Pt 100 DIN | IEC 751 (IPTS-68) |
| Up to 32 devices on an RS485 line w/o a repeater. | |
| Analog Output (standard) | |
| Output Levels | 4-20 mA, 0-20 mA, 0-10 Vdc (jumper selectable) |
