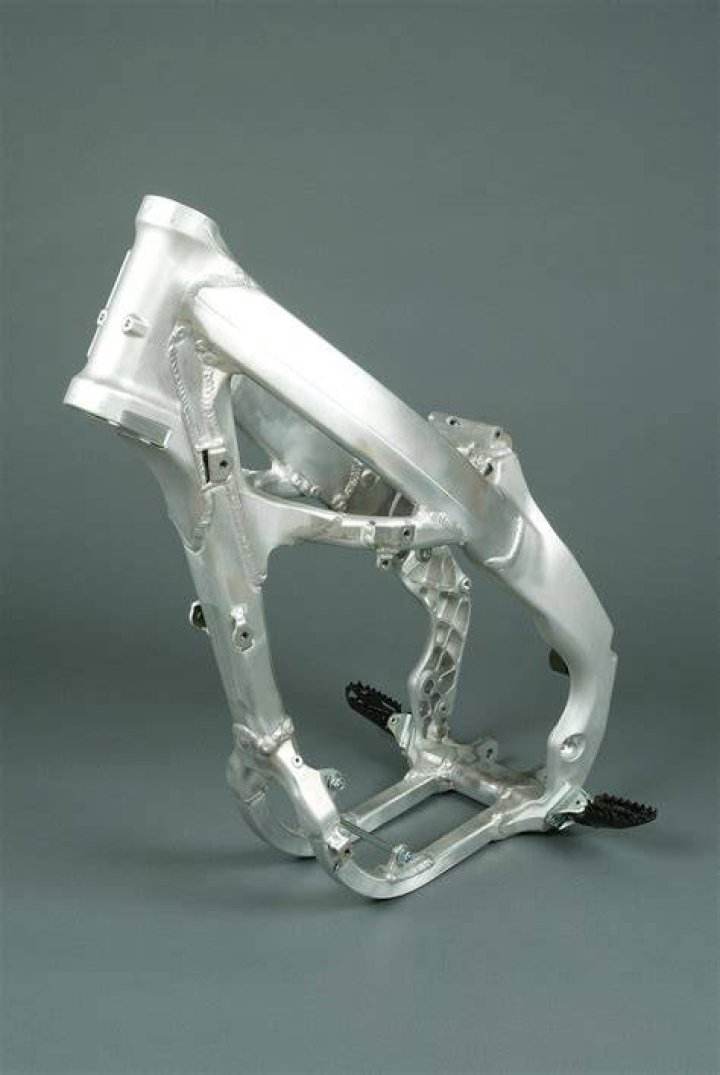

What is a twin spar frame?

Also called Beam or twin spar, two beams wrap around the engine to join the steering head and swing arm in the shortest distance possible for better rigidity. Beams are usually made of pressed metal (steel/aluminium).

Similarly, what is a chassis on a motorcycle?

Decoding the different types of Motorcycle chassis. A motorcycle's chassis or frame forms its skeleton. All the components of a motorcycle, like the suspension, wheels, fuel tank, seats, handlebars etc, are attached to this base structure which lends a motorcycle its strength and ability to handle well.

Likewise, what are motorcycle frames made out of? Frame. Motorcycles have a frame made of steel, aluminum or an alloy. The frame consists mostly of hollow tubes and serves as a skeleton on which components like the gearbox and engine are mounted. The frame also keeps the wheels in line to maintain the handling of the motorcycle.

Also Know, what is double cradle frame?

A double-cradle frame uses two tubes running beneath the engine in order to support it instead of one steel tube on a single cradle frame. While the frame is cost-effective, it provides a significant advantage over a downtube chassis in terms of strength and rigidity.

What is Deltabox?

Deltabox is a frame for the motorcycle chassis just like Trellis, Diamond, Perimeter, etc. It is true that this frame style is seem majority in only Yamaha bikes, but then again they use it because they have developed it after all and secondly because it is really good in case of performance machines.

How do you see if a bike is stolen?

To find the number you must look on the underside of the bike, underneath the pedals. The number is engraved on the bottom of the frame. If the number has been scratched off, good chances are the bike has been stolen. If the number has not been scratched off, be sure to write it down.

What is the difference between Underbone and backbone?

Ahh I looked up underbone frames. For closed course work your going to want a frame as rigid as possible. The backbone style frame use the engine to complete a box or triangle between the front forks and the rear swingarm instead of those points just hanging off a bent tube.

How is a chassis made?

This type of chassis is made by tubes of steel (We used 1238 and 1080 steel). We calculate the amount of load that is required to be mount on the vehicle, make a structure by welding tubes together. This type of chassis generally has an outer body and an inner body which are drawn by using heavy hydraulic presses.

What is Diamond chassis?

Diamond frames on motorcycles are one of the most widely used frames of all times. So the same way the motorcycle frame also gets the triangular frame design with of course some minor changes to suit a motorcycle. In a Diamond frame, the steering head is connected to the chassis via a single beam.

What type of steel is used for motorcycle frames?

Materials. In the early days, motorcycles were little more than motorised bicycles, and consequently frames were tubular steel. While the use of steel tubing is still common, in modern times other materials, such as titanium, aluminium, magnesium, and carbon-fibre, along with composites of these materials, are now used

Where is my bike chassis number?

You can usually find a chassis number in the engine bay or on the chassis itself. The chassis number may also appear on the vehicle registration papers. Please note, it is not the vehicle registration number. Unlike a VIN, there is no standard number of digits for chassis numbers and they may not be unique.

How long does it take to assemble a motorcycle?

To us, it takes around 3-4 business days as long as C-dale has it in stock. Between an hour and two hours for a manufactured/partially assemble bike that comes as a complete bike. If you need to install bottom brackets and cables and headsets then about 3 hours.

What cars still have frames?

Toyota currently manufactures the most body-on-frame SUVs with the 4Runner, Sequoia, Land Cruiser, Lexus GX and LX followed by Nissan with the Patrol, Armada, and Infiniti QX56/80. The Ford Panther platform, which was discontinued in 2011, was the last series of traditional passenger cars to be built in this manner.

What is a chassis system?

The term "chassis" is used to designate the complete car minus the body. The chassis therefore consists of the engine, power-transmission system, and suspension system all suitably attached to, or suspended from, a structurally independent frame.

What is Underbone motorcycle?

An underbone is a motorcycle that uses structural tube framing with an overlay of plastic or non-structural body panels and contrasts with monocoque or unibody designs where pressed steel serves both as the vehicle's structure and bodywork.

What metal are motorcycle engines made of?

Raw MaterialsA cylindrical piston, made of aluminum alloy (preferred because it is lightweight and conducts heat well), is an essential component of the engine. It is fitted with piston rings made of cast iron. The crankshaft and crankcase are made of aluminum.

When were Hero and Honda separated?

December 16, 2010

What are dirt bike frames made of?

Dirt bike frames are typically made of either aluminum or steel. Because aluminum is lighter than steel, the majority of dirt bikes come with aluminum frames. While the frame needs to be stiff, light and durable, it also requires enough elasticity to give feedback to the rider.

What is Diamond frame?

Noun. diamond frame (plural diamond frames) A modern, upright bicycle shape or design, as distinguished from a penny-farthing bicycle, a recumbent, etc.

Can you weld a motorcycle frame?

Yes and no. Depends on the type of welder and they type of electrical system on the bike. Gas welding is OK on any type of bike. Most bike with most modern electrics can be welded with Stick or MIG, but I would disconnect the battery and the computer if you can get to it.

What type of welding is used for bike frames?

With minor (and relatively cheap) changes to the tungsten electrode and the filler material, TIG welding can be used to weld steel, stainless steel and aluminum—the most common metals you will use on custom motorcycle projects. As a result, TIG welding is my personal choice.

What is a seat stay?

The seat stays connect the top of the seat tube (often at or near the same point as the top tube) to the rear fork dropouts. A traditional frame uses a simple set of paralleled tubes connected by a bridge above the rear wheel.

How much does a motorcycle frame weigh?

You can expect an average motorcycle weight to be about 400 pounds (181 kg). Most lightweight motorcycle trailers also weigh about 300 pounds (136 kg).

10 Example Motorcycle Weights.

Motorcycle Model	Motorcycle Type	Weight
Harley Davidson Touring Street Model	Bagger	829 pounds (376 kg)

What is a motorcycle headstock?

The head stock assembly of a motorcycle frame allows the front end assembly to be mounted to the motorcycle frame such that the front end assembly can rotate left and right, steering the motorcycle. The head stock assembly is usually welded to the other components of the motorcycle frame.
