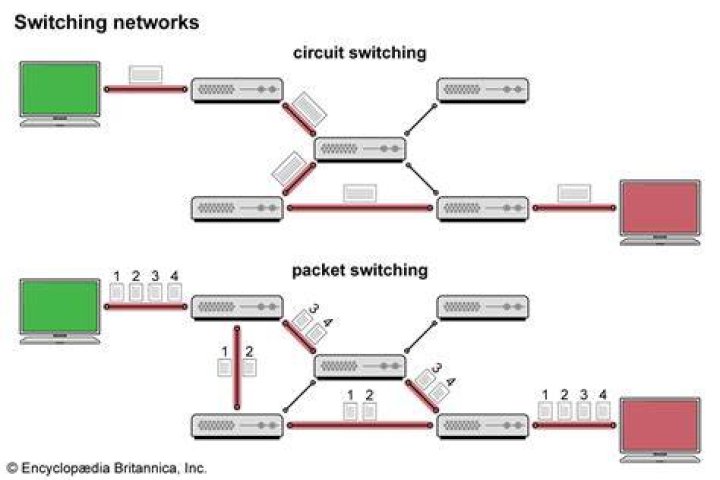

1) In electronics, a circuit is a path between two or more points along which an electrical current can be carried. A network is an arrangement of circuits. In a dial-up (switched) connection, a circuit is reserved for use by one user for the duration of the calling session..
In this manner, what is a circuit simple definition?
Circuit. In electronics, a circuit is a closed path that allows electricity to flow from one point to another. It may include various electrical components, such as transistors, resistors, and capacitors, but the flow is unimpeded by a gap or break in the circuit. A flashlight is an example of a basic circuit.
Likewise, what are the types of electrical network? Based on such characteristics electrical network can be classified as below :
- Linear Network :
- Non linear Network :
- Bilateral Network :
- Unilateral Network :
- Active Network :
- Passive Network :
- Lumped Network :
- Distributed Network :
People also ask, what is difference circuit and network?
So main difference is that in circuits current must pass through all elements but in network current must not pass through all components. circuit should have completely closed path but network must not have closed path condition.
What is a circuit in science?
A circuit is a path that electricity flows along. It starts at a power source, like a battery, and flows through a wire to a light bulb or other object and back to other side of the power source.
Related Question Answers
What 3 things do you need for a circuit?
The BASIC parts of an electrical circuit are three: a non-conductive path or region (let's call this almost everywhere), a conductive path, and a power source (let's call this a current source in series with the conductive path). And that's all you need.What does a circuit consist of?
An electronic circuit is composed of individual electronic components, such as resistors, transistors, capacitors, inductors and diodes, connected by conductive wires or traces through which electric current can flow.What happens in a simple circuit?
An introduction to a simple electrical circuit. The battery pushes the electricity along the wires from the positive terminal, through the bulb and back to the negative terminal. This creates a circuit. To turn out the light, the circuit needs to be broken by adding a switch.How does a circuit work?
An electric circuit works by providing a closed loop to allow current to flow through a system. Electrons must be able to flow throughout the circuit, completing a path from one pole of the power source to the other. Along the way, this flow of electrons can be used to power lights or other electrical devices.What is the definition of current and voltage?
V. Definition. Current is the rate at which electric charge flows past a point in a circuit. In other words, current is the rate of flow of electric charge. Voltage, also called electromotive force, is the potential difference in charge between two points in an electrical field.What is an Open in a circuit?
a) Open circuit means the wires are cut off so there will be no current flow, but there is voltage. b) Closed circuit means the wires are connected so there will be flow of current, but there is no voltage. c) Short circuit also refers closed circuit.What is a circuit easy definition?
1) In electronics, a circuit is a path between two or more points along which an electrical current can be carried. (A circuit breaker is a device that interrupts the path when necessary to protect other devices attached to the circuit - for example, in case of a power surge.)What is data circuit?
DATA CIRCUIT. The data circuit lease is a service which enables the connection of two of the client's points with data flow of the required speed through data networks which are backed up in the backbone part.What is node in circuit analysis?
In electrical engineering, a node is any point on a circuit where the terminals of two or more circuit elements meet. In circuit diagrams, connections are ideal wires with zero resistance, so a node may consist of the entire section of wire between elements, not just a single point.What is passive network?
A passive network is a type of computer network in which each node works on a predefined function or process. Passive networks don't execute any specialized code or instruction at any node and don't change their behavior dynamically. Typically, this behavior is related to each network router node.What is Network in electrical engineering?
An electrical network is an interconnection of electrical components (e.g., batteries, resistors, inductors, capacitors, switches, transistors) or a model of such an interconnection, consisting of electrical elements (e.g., voltage sources, current sources, resistances, inductances, capacitances).What is network theory in electronics?
Network theory is the study of solving the problems of electric circuits or electric networks.What is the difference between loop and mesh?
Loop: A loop is a closed path in a circuit where two nodes are not traversed twice except the initial point, which is also the final one. But in a loop other paths can be included inside. Mesh: A mesh is a closed path in a circuit with no other paths inside it. In other words, a loop with no other loops inside it.What is electronic circuit analysis?
circuit Analysis is the mathematical analysis( finding of unknown elements of a circuit) of electrical circuit. in Circuit analysis, Mathematical tools and techniques are used to find the unknown elements ( current, voltage, resistance, impedance, power etc.)What is active element?
An active element is an element capable of generating electrical energy. The essential role of this active element is to magnify an input signal to yield a significantly larger output signal. An active element is an element capable of generating electrical energy.What is network and its criteria?
Network criteria A network must be able to meet certain number of criteria. The most important are Performance, Reliability and Security. ? Performance : Can be measured by transit time and response time. ? Security : This refers to the ability to protect data from unauthorized access.What is linear and nonlinear circuit?
As the name tells everything, a linear circuit means linear characteristics in between Current and Voltage, which means, current flowing through a circuit is directly proportional to the applied Voltage. A nonlinear circuit is an electric circuit whose parameters are varied with respect to Current and Voltage.What is meant by lumped network?
A lumped network is usually a simplification of a distributed network, such as a transmission line. A transmission line has built in resistance, inductance and capacitance, for every tiny fraction of it's length.What is the current?
Current is the flow of electrical charge carriers like electrons. Current flows from negative to positive points. One ampere of current is defined as one coulomb of electrical charge moving past a unique point in a second. Electric current is widely used in household and industrial appliances.
