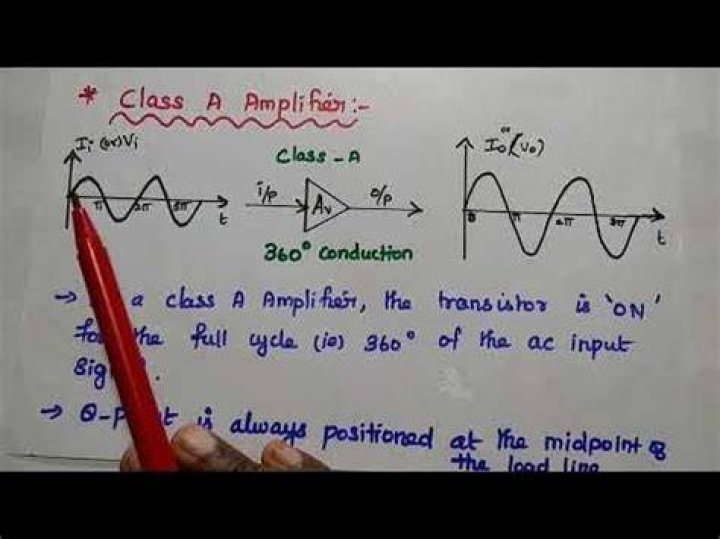

What does class A amplifier mean?

Class A amplifier is a high gain amplifier with high linearity. In case of Class A amplifier, the conduction angle is 360 degree. As we stated above, a 360-degree conduction angle means the amplifier device remains active for the entire time and use complete input signal.

Also asked, what is class A amplifier?

Class A Power Amplifiers. A Class A power amplifier is one in which the output current flows for the entire cycle of the AC input supply. Hence the complete signal present at the input is amplified at the output.

One may also ask, what is the difference between a Class A and Class D amplifier? Class A: Single-ended; the amplifier device is biased about the center of the input signal swing. In a class D amplifier, power field-effect transistors (FETs) are driven to produce an output square-wave that switches between a high and low level at a frequency outside the range of human hearing.

Keeping this in view, what are class A amplifiers used for?

Class A amplifier coupled to a transformer is used mainly for making audio amplifiers,but the overall efficiency is between 50 to 60%. It is mainly used for making audio amplifiers , telephonic repeaters etc..

Do Class A amplifiers sound better?

Even when using the same topology or the same tubes, one amp can be world-class and can be mid-fi. As a conclusion: usually class A amps sound good, but not necessarily _very_ good. Speaker-cable-amp interaction is more important than the class of the amp.

Which class amplifier is best?

One Amplifier to Rule Them All?

Amplifier Class	Typical Efficiency	Pros
B	~70%	Relatively high efficiency.
A/B	~50-70%	More efficient than Class A. Relatively Inexpensive. Crossover distortion can be rendered moot.
G & H	~50-70%	Improved efficiency over Class A/B.
D	>90%	Best possible efficiency Light weight.

Which amplifier has highest distortion?

Class A amplifier

What does class A preamp mean?

Making a class-B preamp would be pretty strange. As to definitions: A class-A amp uses one transistor as amplification for all of the signal. You design the circuit so that the most linear part of the transistor amplification curve, giving a linear amplification.

Is a 4ohm or 2ohm better?

4ohm. 4 ohm subwoofers will have a higher electrical resistance, use way less energy and will, therefore, last longer than subwoofers with lower resistance. They also produce less sound in comparison to the 2 ohm ones.

What's the best amplifier brand?

The Best Car Amplifier

JL Audio RMS Monoblock Class D Car Amplifier.
Pioneer GM-D8601 Class D Mono Amplifier.
Rockford Fosgate 4 Channel Boosted Car Amplifier.
Alpine 5-Channel Extreme Power Digital Amplifier.
MTX Audio Thunder Series Car Amplifier.
JL Audio 5-Channel Class D Amplifier.

How do class A amplifiers work?

It uses a single-ended transistor for its output stage with the resistive load connected directly to the Collector terminal. A Class A amplifier stage passes the same load current even when no input signal is applied so large heatsinks are needed for the output transistors.

What are the characteristics of Class A amplifier?

Characteristics of Class A AmplifierIt's a low distortion type amplifier having very low efficiency but high gain. When there's a cut-off in the transistor, the Collector-Emitter region behaves as open while in case of saturation the same Collector-Emitter region behaves as short.

How do you get rid of crossover distortion?

In the case of a class B/AB amplifier, crossover distortion can be reduced by using a slight forward bias in the base circuit such that the transistors are idling at a small output current. The forward bias causes the circuit to operate in class-AB mode, so both transistors are slightly on during crossover.

What is Class A tube amp?

Class A describes an amp in which a power tube conducts the entire sine wave of the guitar signal. Amps with two power tubes can divide that signal between the tubes, with one handling the “down” half of the guitar signal's sine wave and the other handling the “up” half.

What class of amplifier is best for subwoofer?

The very best amplifier for a subwoofer is a class AB or Class H amplifier.

Amplifiers for Passive Mid Range and High Frequencies:

Class D are fine for mids and tops as the drivers take less power to function correctly.
Class H work equally well but can be more expensive.

How many types of amplifiers are there?

How is class A amplifier efficiency calculated?

Calculation of Class A Amplifier Collector Efficiency:

R_L' = n² R_L As we know, DC power input and AC power output is given as,
η _max = (P_ac / P_dc ) * 100. Substitute the value of DC power input and AC power output in the above equation, we get,
η _max = 50%

Which amplifier has highest efficiency and distortion?

Class C amplifiersA Class C amplifier is biassed so that it conducts over much less than half a cycle. This gives rise to very high levels of distortion, but also it enables very high efficiency levels to be achieved.

What is class A and class B amplifier?

Power amplifier classes are, in electronics, letter symbols applied to different power amplifier types. A class A amplifier is conducting through all the period of the signal; Class B only for one-half the input period, class C for much less than half the input period.

What's better class D or AB?

A "Class D" design offer far greater efficiency and performance, combining high power efficiency, power output and audio performance. Amplifiers on this class are suitable for a wide range of high-end audio applications. "Class D" efficiency is typically in excess of 95% compared with 60% for a "Class AB" amplifiers.

Are Class D amplifiers high fidelity?

We are now seeing Class D audio amplifiers used in high fidelity sound equipment with the ability to handle hundreds of Watts of power with higher efficiency and linearity while simultaneously attaining total harmonic distortion (THD) that is far below 0.05 percent.

Does more power mean better sound?

The assumption is that the more watts a device can output, the better, louder sound it will produce. Yes, it's true that the higher the power (watts), the louder and cleaner the speakers will play. Small differences in power, however, don't make much of an audible change.

What power amp do I need?

Generally you should pick an amplifier that can deliver power equal to twice the speaker's program/continuous power rating. This means that a speaker with a “nominal impedance” of 8 ohms and a program rating of 350 watts will require an amplifier that can produce 700 watts into an 8 ohm load.

Do you need an amp for speakers?

At least one channel is needed for each speaker, but it's also possible to use more than one amp in a single car audio system. For example, a 4-channel amp can power four coaxial speakers, and a separate mono amp can be used for a subwoofer.
