What do you mean by characteristic strength of concrete?

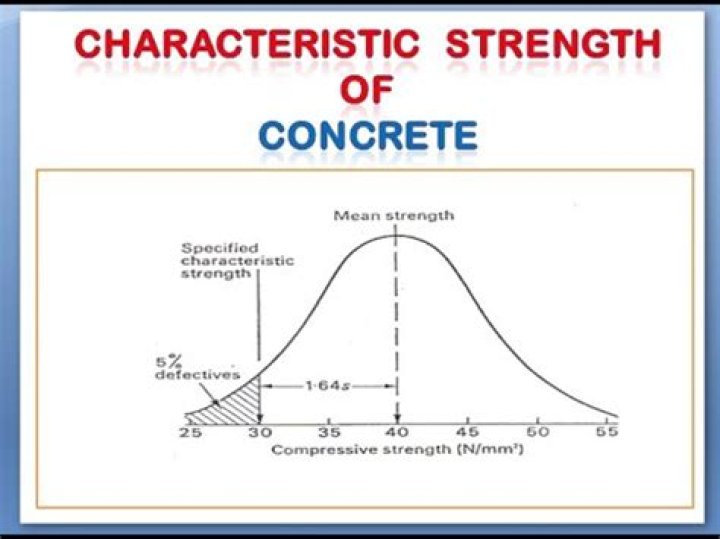

The characteristic strength is defined as thestrength of the concrete below which not more than 5%of the test results are expected to fall. The horizontalaxis represents the values of compressive strength in MPa.The vertical axis represents the number of test samples for aparticular compressive strength.

Subsequently, one may also ask, how do you calculate the strength of concrete?

Calculation: The measured compressivestrength of the specimen shall be calculated bydividing the maximum load applied to the specimen during the testby the cross sectional Area, calculated from the meandimensions of the section and shall be expressed to the nearest kgper cm2.

Also, what is the difference between characteristic strength and design strength? Characteristic strength of concrete would alsogive us the compressive strength of a particuar mix ofconcrete. Thus, while compressive strength gives us thestrength of a single sample, characteristic strengthwould give us the probable strength based on a number ofsamples, which would be a more realistic assessment.

Also asked, what is characteristic load and strength?

Characteristic Load or ultimateload Characteristic load is that value of loadwhich has a 95 percent probability of not being exceeded during thelife time of the structure. In absence of any data, loadsgiven in various standards shall be assumed as thecharacteristic loads.

What is characteristic strength of m20 concrete?

Compressive Strength Table of Concrete at 7 & 28Days

Grade of Concrete	Minimum compressive strength N/mm2 at 7 days	Specified characteristic compressive strength (N/mm2) at 28days
M15	10	15
M20	13.5	20
M25	17	25
M30	20	30

What is meant by flexural strength?

Flexural strength, also known as modulusof rupture, or bend strength, or transverse rupturestrength is a material property, defined as thestress in a material just before it yields in a flexuretest. The flexural strength represents the highest stressexperienced within the material at its moment ofyield.

What is the strength of concrete?

Concrete compressive strength requirementscan vary from 2500 psi (17 MPa) for residential concrete to4000 psi (28 MPa) and higher in commercial structures. Higherstrengths up to and exceeding 10,000 psi (70 MPa) arespecified for certain applications.

What is FCK concrete?

The compressive strength of concrete is given interms of the characteristic compressive strength of 150 mm sizecubes tested at 28 days (fck). The characteristic strengthis defined as the strength of the concrete below which notmore than 5% of the test results are expected to fall.

What are the factors affecting the strength of concrete?

Factors Affecting Strength of Concrete.Concrete strength is affected by many factors, suchas quality of raw materials, water/cement ratio, coarse/fineaggregate ratio, age of concrete, compaction ofconcrete, temperature, relative humidity and curing ofconcrete.

What is the formula of compressive strength?

Calculating Compressive StrengthThe formula is: CS = F ÷ A, where CS isthe compressive strength, F is the force or load atpoint of failure and A is the initial cross-sectional surfacearea.

What is tensile strength of concrete?

The ability of the concrete withstand in pullingforce (Tensile Stress) without broke is called TensileStrength of concrete. The tensile strength of concreteis measured by the units of Force per Cross Sectional area (N/Sqmmor Mpa). The concrete is good in compression force and weakin tension force.

Why slump test is done?

The concrete slump test measures the consistencyof fresh concrete before it sets. It is performed to checkthe workability of freshly made concrete, and therefore theease with which concrete flows. The slump test is used toensure uniformity for different loads of concrete under fieldconditions.

What is characteristic strength?

The characteristic strength is defined as thestrength of the concrete below which not more than 5% of thetest results are expected to fall. The above sketch shows anidealized distribution of the values of compressive strengthfor a certain number of test specimens.

What are the characteristics of load?

Characteristic load/Strength is that value ofload/Strength which has a 95% probability of not beingexceeded during the life time of the structure. Characteristicload is the maximum load on structure which has 95%probability of not being exceeded during life ofstructure.

What is design strength?

design strength. 1. The load-bearing capacity ofa member computed on the basis of the allowable stresses which areassumed in design. 2. The assumed values for thestrength of concrete, and the yield stress of steel on whichthe theoretical ultimate strength of a section iscomputed.

What is a good factor of safety?

General recommendations

Applications	Factor of Safety - FOS -
For use with highly reliable materials where loading andenvironmental conditions are not severe and where weight is animportant consideration	1.3 - 1.5
For use with reliable materials where loading and environmentalconditions are not severe	1.5 - 2

What is strength of steel?

Tensile Strength. The term tensilestrength refers to the amount of tensile (stretching) stressa material can withstand before breaking or failing. Yieldstrength refers to the amount of stress a material canwithstand without permanent deformation.

What is characteristics strength of steel?

The characteristic of yield strength ofsteel or threaded steel bar can be defined as theminimum yield stress or 0.2% of proof stress forsteel having no definite yield point. According to theexpertise, the modulus of elasticity of steel is taken to be200000 N/mm2.

What is working stress method?

Working Stress Design Method is a methodused for the reinforced concrete design where concrete isassumed as elastic, steel and concrete act together elasticallywhere the relation ship between loads and stresses is linear.

What is factored load?

A factored load is a load multiplied by acertain factor designated by codes of practice to drerminethe strength of a structural members such as reinforced concrete.Unfactored load is a service load to determine theworking stress of a structural concrete, steel, or woodmember.

What is a service load?

The service load is the best estimate of theactual load that a concrete member may be called on tosupport. The current way, Ultimate Strength. The design loadis the service load increased by specified loadfactors in order to provide a factor of safety. TraditionalExamples: Service Load = Dead Load + LiveLoad.

What is difference between characteristic compressive strength and compressive strength of concrete?

But compressive strength is strength ofsample under axially compression loaded sample. what isdifference between characteristic compressive strength andcompressive strength of concrete.. The difference isonly in the manner of expression. Both the terms give us anidea of the strength of the material.

What does m20 mean?

What is meant by M20 grade of concrete???..Answer / ashis malakar. M means mix and 20 meanscharacteristics compressive. strength of concrete after 28 daysperfect curing.(in N/mm2)

What is m20 concrete used for?

Grade of concrete M20 is applicable forReinforced Cement Concrete (RCC) works for slabs, beams,columns and so on. The high strength concrete has itsapplications for high rise buildings.
