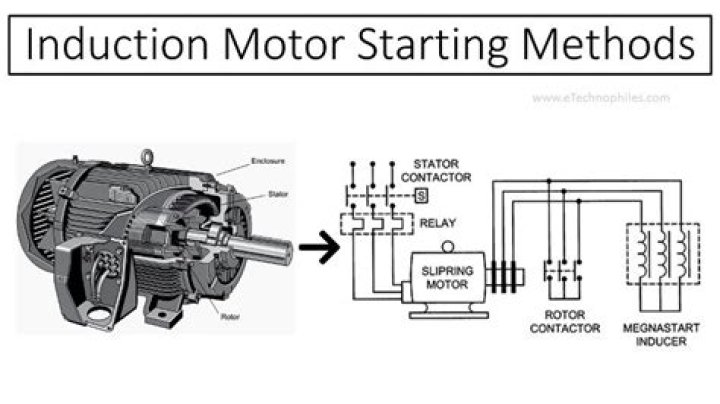

What are the methods of starting induction motors?
Emma Terry updates
- Direct –On– line (DOL) starters for less than 10 Kw motors.
- Star–Delta starters for large motors. The stator winding is initially connected in a star configuration and later on changed over to a Delta connection, when the motor reaches rated speed.
- Auto transformer.
.
Also to know is, what are the different methods of starting of single phase induction motors?
There are different methods to start the 1-ϕ motors, they are as follows:
- Split Phase or Resistance Start.
- Capacitor Start.
- Permanent Split Capacitor.
- Capacitor Start Capacitor Run.
- Electronic Starter for Single Phase Motor.
One may also ask, which method of starting an induction motor is expected to take largest starting current? Starting current of induction motor is as high as 5 to 7 times the normal full load current. Therefore different starting of induction motor, methods such as (star delta starter, auto transformer starter and other starting methods) are employed in order to reduce the high starting currents of induction motor.
Keeping this in view, why do three phase induction motors need starting methods?
Therefore, 3-phase induction motors employ a starting method not to provide a starting torque at the rotor, but because of the following reasons; 1) Reduce heavy starting currents and prevent motor from overheating. 2) Provide overload and no-voltage protection.
What are different types of starters?
Based on the above techniques, the most common types of starters are listed below.
- Stator resistance starter.
- Auto transformer starter.
- Star-delta starter.
- Direct on-line starter.
- Soft Starter.
Related Question Answers
What are single phase motors used for?
Single phase motors are the electrical devices with output power around 1HP (Horse power). These are mostly single phase induction motors. It plays a vital role in domestic applications. Most of these domestic applications are fans, electric toys, blowers, centrifugal pumps, washing machines and so on.What is the difference between single phase and three phase induction motor?
As the name itself shows, the Single Phase induction motor uses single phase supply, for its operation and 3 Phase induction motor uses three phase supply. The Starting Torque of Single Phase induction motor is low, whereas the starting torque of Three Phase Induction motor is high.Why there is no starting torque in single phase induction motor?
Because there is no rotating stator magnetic field, a single-phase induction motor has no starting torque. Since the stator magnetic field does not rotate,there is no relative motion between the stator field and the bars of the rotor.What is meant by induction motor?
Definition of induction motor. : an alternating-current motor in which torque is produced by the reaction between a varying magnetic field generated in the stator and the current induced in the coils of the rotor.What is the starting torque of single phase induction motor?
In two-pole single-phase motors, the torque goes to zero at 100% slip (zero speed), so these require alterations to the stator such as shaded-poles to provide starting torque. A single phase induction motor requires separate starting circuitry to provide a rotating field to the motor.What is the slip?
Slip can be defined as the difference between the flux speed (Ns) and the rotor speed (N). Speed of the rotor of an induction motor is always less than its synchronous speed. It is usually expressed as a percentage of synchronous speed (Ns) and represented by the symbol 'S'.Why the induction motor is self starting?
The current carrying rotor being placed in a magnetic field experiences a torque and hence begins to rotate in the direction of rotating magnetic field. Thus we see that Induction Motor is self-starting. A 3-phase supply is given to the armature of Synchronous Motor, produces a rotating magnetic field.What is a single phase induction motor?
A Single Phase Induction Motor consists of a single phase winding which is mounted on the stator of the motor and a cage winding placed on the rotor. Under these conditions, the rotor of an induction motor does not rotate. Hence, a single phase induction motor is not self-starting.What is soft starting of induction motor?
A soft starter is a solid-state device that protects AC electric motors from damage caused by sudden influxes of power by limiting the large initial inrush of current associated with motor startup. They provide a gentle ramp up to full speed and are used only at startup (and stop, if equipped).What are the applications of 3 phase induction motor?
Three-phase AC induction motors are widely used in industrial and commercial applications. These are of two types, squirrel cage and slip ring motors. Squirrel cage motors are widely used due to their rugged construction and simple design. Slip ring motors require external resistors to have high starting torque.What are the different types of starters?
Various types of starters are as follows:- Stator resistance starter.
- Star delta starter.
- Autotransformer starting.
- Rotor resistance starters.
- Variable stator frequency starting.
How can we reduce motor starting torque?
Variable Voltage/Frequency - A variable frequency drive (VFD) can control the torque of of the induction, by changing the applied frequency. By doing this, the motor can start at a low frequency, corresponding to the lip frequency of the motor. This allows full torque at zero, or any, speed.How can the starting current of a motor be reduced?
Some of the techniques used to reduce the starting current of a squirrel induction motor:- Soft starting (voltage control)
- Variable Frequency Drives (Voltage and frequency control)
- Star/Delta Starting.
- Stator impedance and/or resistance starting.
- Autotransformer Starting.
