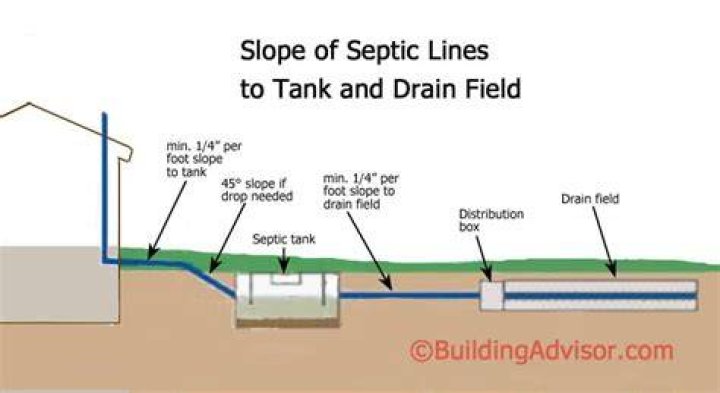

How much slope does a septic line need?

A typical septic tank has a 4-inch inlet located at the top. The pipe that connects to it must maintain a 1/4-inch-per-foot slope toward it from the house. This means that for every 10 feet of distance between the tank and the house, the inlet must be 2 1/2 inches below the point at which the pipe exits the house.

Herein, how much drop does a septic line need?

The "building sewer" must be sloped (sometimes called fall) at between 1/8" per foot and 1/4" per foot (in other words the pipe must drop at least one inch for every 8 feet of sewer line and not more than one inch for every 4 feet).

Also Know, can you put a septic system on a hill? If you have to install a conventional perforated pipe and gravel trench drainfield on a steep slope you'll need to run the trenches along the slope or parallel to the fall line, stepping down the slope from trench to trench.

In respect to this, how much slope does a sewer pipe need?

According to plumbing code, drain pipe has to be sloped a minimum of 1/4-inch per foot and a maximum of three inches per foot or vertical. A slope of less than 1/4-inch per foot will cause constant drain clogs and a slope of more than three inches will allow the water to drain without the solids.

Can a drain pipe have too much slope?

Yes, it has to do with the water speed. Too much slope and the water speed will outrun the waste it is carrying with it, leaving the waste behind to clog the line up. If you need to exceed 1/2" per foot slope, then either use a 45 degree slope or a tie into a vertical drop.

Can a sewer line be too steep?

The elevations and the length of the pipe run are used to make the initial slope calculations. A slope that is too steep will cause the liquids to run faster than the solids, leading to clogs. A slope that is too shallow does not create enough velocity for proper drainage.

How deep are septic drain field pipes?

Septic drainfield trench depth specification:A typical septic drainfield trench is 18 to 30 inches in depth, with a maximum soil cover over the disposal field of 36"; or per the USDA, 2 feet to 5 feet in depth.

How far away can a septic tank be from a house?

Diatance From The HouseRequirements will vary from one area to another, but the normal minimum distance from the house is ten feet. In many cases the contractor will excavate for the septic tank and system at the same time he digs the footings for the house.

How deep does a septic tank have to be?

4 feet

How do you hook up a drain line to a septic tank?

Insert the pipe into the inlet opening of the tank until the pipe sticks in about 2 inches. Locate the pipe far enough into the tank that incoming waste water does not follow the tank wall down but free-falls out of the pipe. The pipe must be at least 6 inches from the baffle to prevent clogs from forming.

How do you tap into a septic tank?

How to Tie Into an Existing Septic Tank

Locate the drain line running from the current home to the septic tank.
Once you locate the drainpipe, continue digging until you have exposed approximately three feet of the pipe.
Lay sections of four-inch PVC pipe from the new drain point to the existing drain line.

Can a toilet drain have bends?

To achieve good water flow, try to install horizontal drain pipes so they have a minimum of 1/4 inch per foot slope. Sharp bends in piping also slow down water movement. They cause the moving water to loose energy. The 90 degree bends also are tough to pass through with drain cleaning equipment.

Can a toilet drain drop straight down?

Vertical DropWhen the toilet drain reaches a vertical wall, it drops straight down between wall studs. Although this is a vertical drop, don't use standard 90-degree plumbing elbows, called "hard 90s," to connect the pipes. The sharp corners on these elbow fittings can increase the risk of clogs.

Why are S traps bad?

It's probably because the water in the trap has completely evaporated, allowing sewer gases to come in to the home. Back to “S” traps – The reason “S” traps aren't allowed is because they have the potential to suck, or 'siphon', water out of the trap as the water flows down the drain.

What is the minimum fall for shower waste?

Waste pipes need to be installed sloping down to ensure the water runs the right way. This needs to be a minimum of 10mm fall for every 4m of pipe which can lead to insufficient fall within the floor void under baths or showers (especially under low-level or flush shower trays).

How much slope does a pop up emitter need?

Pop-Up Emitter InstallationIn order to allow for proper flow, you'll need to make sure the drain pipe is sloped correctly. Every yard is different, but a good starting point is a 2% slope.

How do you calculate fall?

FALL = GRADIENT X DISTANCEFor example, calculate the fall in a 50 metre section of foul water pipework if the gradient is to be 1 in 80. A gradient of 1 in 80 is converted to a number instead of a ratio.

How much does it cost to put in a new septic system?

For a house with five or more bedrooms, you'll most likely want a 1,500-gallon tank, and that will cost $15,000 to $25,000. The cost to replace an existing septic system is $3,000 to $7,000, depending on the size and complexity of the job.

How much is an alternative septic system?

An alternative or aerobic septic system typically costs between $10,500 to $15,000 on average, whereas a conventional or anaerobic system ranges from $2,500 to $5,000 with most homeowners paying $3,500 on average.

What to put in septic tank to break down solids?

Yeast helps keep bacteria alive and actively breaks down waste solids when added to your septic system. Flush ½ cup of instant dry baking yeast down the toilet, the first time. Add ¼ cup of instant yeast every 4 months, after the initial addition.

Does shower water go into septic tank?

From your house to the tank:Most, but not all, septic systems operate via gravity to the septic tank. Each time a toilet is flushed, water is turned on or you take a shower, the water and waste flows via gravity through the plumbing system in your house and ends up in the septic tank.

Can a homeowner install a septic system?

A septic tank is a system designed for the safe disposal of sewage. Homeowners typically must have a permit to install a septic tank, and most states require septic tank installers to be licensed or certified.

What does a septic drain field look like?

The drain field typically consists of an arrangement of trenches containing perforated pipes and porous material (often gravel) covered by a layer of soil to prevent animals (and surface runoff) from reaching the wastewater distributed within those trenches.
