How many reactions does a hinge have?
Christopher Davis updates
.
Subsequently, one may also ask, how many reactions are in hinged support?
two
Similarly, is there a moment at a hinge? If external moment is not resisted than it means no internal moment (bending moment) is generated at the joint. And at hinge joint we all know that, a beam/section is free to rotate. Since no internal moment is there so bending moment is also zero at hinge joint.
Also know, how many reactions does an internal hinge have?
It is supported by four vertical reactions and joined by two frictionless hinges.
How many reactions do rollers have?
In general, there is a support reaction (force acting from the support to the structure) in the direction of the restrained degree of freedom. Therefore, roller supports have one or two support reactions. Roller supports are used in bridges and spatial structures to allow for thermal movements.
Related Question Answers
What are the different types of support?
There are basically three types of support and these are roller, pinned and fixed support. There is a fourth support also called as simple support, it is generally not used in structures. Every support has its own field of application. Supports are used in structures to provide it stability and strength.What is point of Contraflexure?
In a bending beam, a point is known as a point of contraflexure if it is a location where bending moment is zero (changes its sign). In a bending moment diagram, it is the point at which the bending moment curve intersects with the zero line.Can a roller support a moment?
Roller supports only resists perpendicular forces and they cannot resist parallel or horizontal forces and moment. It means, the roller support will move freely along the surface without resisting horizontal force.Does a hinge have reaction forces?
A hinge has two unknown reaction forces and two unknown reaction moments along the coordinate axes that are perpendicular to the axis of the hinge. There is also a reaction force along the axis of the hinge (i.e. does not slide along the z-axis).What is hinge in structure?
A plastic hinge, in structural engineering, refers to the deformation of a part of a beam wherever plastic bending happens. Hinge means that having no capability to resist moment. Therefore, a plastic hinge behaves like a standard hinge - permitting free rotation.What is meant by hinged support?
A Hinged beam support can resist both vertical and horizontal forces but not a moment. They will allow the structural member to rotate, but not to translate in any direction. The representation of a hinged support includes both horizontal and vertical forces. Hinged supported beam also called pinned supported beam.Do internal hinges have moments?
Introducing a shear connection restricts moment development at the connection and only shear forces are present. While moment connections are like fixed connections giving rise to both moment and shear. A shear connection or splicing is typically called an internal hinge.What is hinge in civil engineering?
A hinge is a device permitting one part to turn on another. In builders' hardware, the two parts are metal plates known as leaves. They are joined together by a pin, which passes through the knuckle joints. When the leaves are in the form of elongated straps, the device is usually called a hinge (Fig. 11.70 and 11.71).What is point of virtual hinge?
Indu said: (Aug 27, 2017) Point of inflexion means where the shear force changes its sign, the point of a virtual hinge is about virtual work, the point of contra flexure means.How do you Analyse a beam?

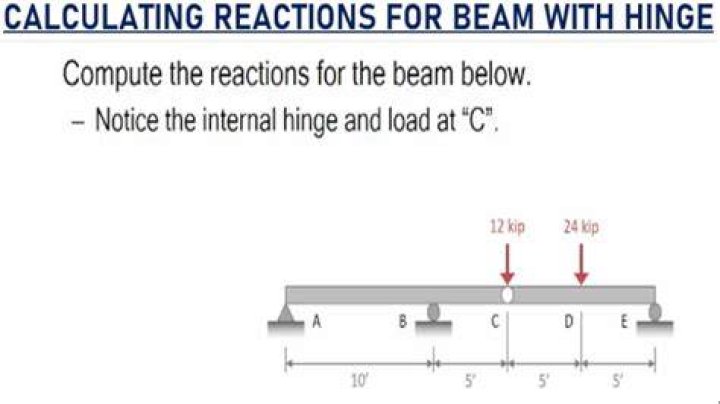

Following are the steps in beam analysis:Draw Free Body Diagram (FBD) – To get a clear picture of maximum loading. Calculate the reactions – To determine the Shear Force. Find Shear Force (V), Axial Force (P) & Moment (M) at the location of interest – In case of variable cross-section or in case of multiple loads.What does a hinge do in a beam?
In the structural engineering beam theory term, plastic hinge, is used to describe the deformation of a section of a beam where plastic bending occurs. In earthquake engineering plastic hinge is also a type of energy damping device allowing plastic rotation [deformation] of an otherwise rigid column connection.Do pins have moments?
A pinned support can resist both vertical and horizontal forces but not a moment. They will allow the structural member to rotate, but not to translate in any direction. Many connections are assumed to be pinned connections even though they might resist a small amount of moment in reality.How many Reaction Forces does a pin have?
| 2D | 3D |
|---|---|
| Pin (movie 28k) Two force components acting parallel to the coordinate axes. | Fixed (movie 116k) Three force components acting parallel to the coordinate axes, and three moments perpendicular to the axis of the bearing. |
| Fixed (movie 25k) Two force components acting parallel to the coordinate axes, and one moment. |
Why are clockwise moments considered negative?
Clockwise moments are considered negative when summed with counterclockwise moments because they are opposites of each other, but also because counterclockwise moments are positive since when acting upon an object, they move the object up on the Y-Axis.What is meant by fixed end moment?
The fixed end moments are reaction moments developed in a beam member under certain load conditions with both ends fixed.What is meant by bending moment?
A bending moment is the reaction induced in a structural element when an external force or moment is applied to the element causing the element to bend. The most common or simplest structural element subjected to bending moments is the beam.What is the difference between fixed and pinned?
Re: pinned vs fixed what is the difference? Pinned release means this bar end allow the rotation around its local axis but doesn't allow the movement . Fixed mean this bar end this bar end doesnt allow the movement or rotation .What are the types of beams?
The four different types of beams are:- Simply Supported Beam.
- Fixed Beam.
- Cantilever Beam.
- Continuously Supported Beam.
