How many bends are allowed in conduit?
James Stevens updates
.
Also asked, what is the multiplier for bending conduit?
Multipliers for Conduit Offsets
| Degree of Bend | Multiplier |
|---|---|
| 10 degrees | 6.0 |
| 22 degrees | 2.6 |
| 30 degrees | 2.0 |
| 45 degrees | 1.4 |
Also Know, does an LB count as a pull box? LB's do count as pull points but that could be contingent upon what size conductors you're using. They are pull points regardless of conductor sizes. An LB would need the same 6X dimension needed for an angle pull when using a pull box with conductors #4 and larger.
Beside this, how many feet are between pull boxes?
Provide pull boxes sized in accordance with the NEC in straight sections of conduit every 100 feet or 180 degrees of total bends.
What is a conduit run?
Electrical conduit is metal or plastic pipe through which electrical wires are run. Either rigid or flexible, conduit protects the wires and is used in exposed locations, such as along the exterior surface of a wall.
Related Question Answers
What is the multiplier for 10 degrees?
Multipliers for Conduit Offsets
| Degree of Bend | Multiplier |
|---|---|
| 10 degrees | 6.0 |
| 22 degrees | 2.6 |
| 30 degrees | 2.0 |
| 45 degrees | 1.4 |
How do you calculate shrink in conduit?
To find out where to place the first mark on the conduit, multiply the measured Offset Distance to clear the obstacle by the tables Shrink/Inch that will occur to the conduit after all the bends are made due to that offset distance or: (Offset Distance) X (Shrink/Inch) = Total Shrink.What is the multiplier of a 45 degree conduit bend?
Multipliers for Conduit Offsets
| Degree of Bend | Multiplier |
|---|---|
| 10 degrees | 6.0 |
| 22 degrees | 2.6 |
| 30 degrees | 2.0 |
| 45 degrees | 1.4 |
What is the multiplier for a 45 degree bend?
Mathematics of the Offset Bend
| Degree of Bend in Degrees (Angle) | Multiplier | Shrinkage Multiplier in inches |
|---|---|---|
| 15 | 3.9 | 1/8 |
| 22.5 | 2.6 | 3/16 |
| 30 | 2 | 1/4 |
| 45 | 1.4 | 3/8 |
How do you bend PVC conduit without a bender?
Use a hair dryer to heat up a spot on the PVC pipe and slowly apply pressure on the area you want to bend. Once you've made a bend to the desired angle you can remove the auger. This technique is ideal for maneuvering PVC around corners and over other pipes, while remaining flush to the wall.What is the multiplier for a 22 degree bend?
Multipliers for Conduit Offsets
| Degree of Bend | Multiplier |
|---|---|
| 10 degrees | 6.0 |
| 22 degrees | 2.6 |
| 30 degrees | 2.0 |
| 45 degrees | 1.4 |
How do you use a 90 inch conduit bender?
To use the deduct figure, measure the distance to the far edge of the 90 and subtract the deduct figure. If ½" pipe is being bent and the distance is 56" place a mark on the conduit at 51"; this is where the bender will be placed. Work the bender onto the conduit with the conduit mark at the arrow of the bender.How do you size pull boxes?
In such situations, junction box sizing requirements are a bit more complicated. Start with the largest raceway size like you did in the straight pull, but also do the following: Multiply the raceway size by six, rather than eight. Add together the sizes of any other raceways on the same wall and row.How many degrees of bend is allowed in a conduit run between J boxes?

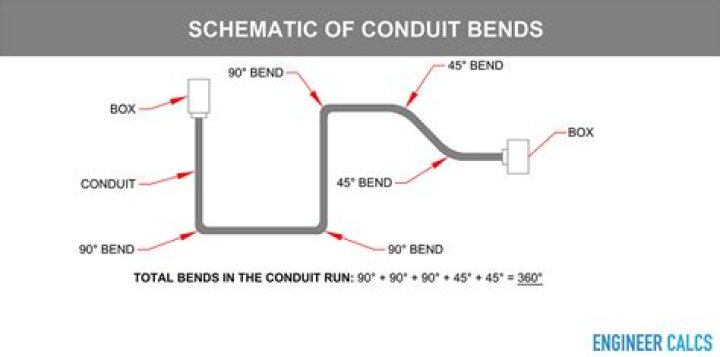

There shall not be more than the equivilent of four quarter bends (360 degrees total) between pull points, for example, conduit bodies and boxes. No section of conduit shall contain more than two 90-degree bends, or equivalent between pull points.Can you run line and load in the same conduit?
A. Service conductors cannot be installed in the same raceway with feeder or branch-circuit conductors [230.7], but line and load conductors for feeders and branch circuits can be placed in the same raceway or enclosure.How do you install a pull box?
Mount the BoxSeparate the circuit wires at the existing splice and loosen the cables as needed to make room for the new junction box. Mount the box to the framing (or other support structure) with screws driven through the factory-made holes in the back or side of the box, as applicable. Continue to 6 of 8 below.Can you splice in LB?
An Lb is a conduit body and yes you can splice in them. An Lb is a conduit body and yes you can splice in them.What fitting is used between conduit and a Home Run box?
Locknuts are used to fasten conduit fittings to a box or enclosure. Insulating bushings are used to protect the wires from the sharp interior edge of the fitting. This is especially important when pulling wire into an electrical box or enclosure.What is LB conduit body?
The Type LB Conduit Body is used for a change of direction of the conduit run with the back hub usually exiting through a wall. It is a rectangular shaped conduit body with a removable cover and a foam gasket that is provided.Can I splice in an LB?
An Lb is a conduit body and yes you can splice in them. An Lb is a conduit body and yes you can splice in them.Can you splice in a Condulet?
Line voltage size conductors can easily be spliced in smaller size condulets. And if you upsize your condulet with a couple reducer bushings, you can splice them even more easily.Can I use a conduit body as a junction box?
Boxes such as FS and FD or larger cast or sheet metal boxes are not classified as conduit bodies.” This definition, however, doesn't fully describe all of the uses permitted for a conduit body in the NEC, as a conduit or cable fitting, a splice box, a device box, a junction box and a pull box.What is the maximum distance of conduit support or strap after a junction box?
3 ft
