How high should a boiler flue be?
Daniel Moore updates
60cm
.
Regarding this, should a boiler flue be level?

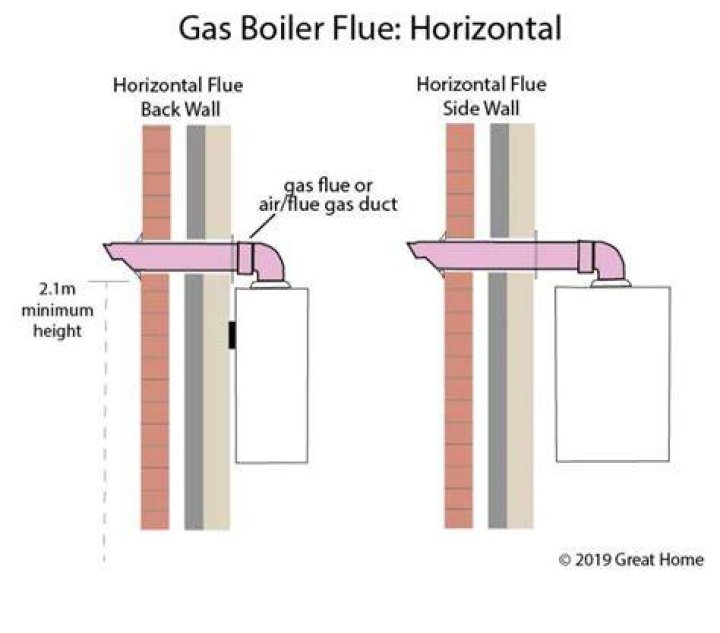

Flues facing public spaces Flue regulations are not only in place to keep your home safe but the people passing by your property too. If your boiler flue has to face out onto a public space, the installer will have to ensure that it's fitted at least 2.1 metres above ground level, over head height.
Likewise, how high should a boiler be? The top of the boiler is around 110cm from the floor and the horizontal flue comes out around 80cm from the ground in the front garden about 150cm away from the pavement (it's a small garden!).
Also to know is, how far can you run a boiler flue?
For example, a 60/100mm concentric flue fitted to a system or combi boiler can be a maximum of 10m long. If the installation needs the flue to run for a distance above this, the installer can increase the flue size to 80/125mm, allowing for a maximum length of 20m.
Is boiler flue gas dangerous?
Boiler flues are a crucial part of your heating system. If your boiler isn't burning the gas correctly, carbon monoxide could be produced too. Boilers are made to be safe, and these gases shouldn't harm you. However, a blocked flue can mean the gases become trapped in your home, causing you to breathe them in.
Related Question Answers
How far should a flue be from a boundary?
With regard to proximities to boundaries, a flue duct outlet of a gas appliance needs to be sited so that it is at least 600mm from the boundary line when facing it and at least 300mm from the boundary line when running parallel to it.How many bends can you have in a boiler flue?
Certain flues and certain boilers allow for different lengths. Some can run up to six metres, whilst others can allow for 12 metres. The number of bends an affect this quite a lot. Every 90 degree bend counts as two metres, and every 45 degree bend counts as another metre.Why is my boiler flue dripping?
The flue should rise from the boiler at a 3 degrees angle so that the condensation can run back into the boiler and out through the drain. If it is dripping then it is likely that the flue is sitting straight through the wall. We don't know yet if the OP's boiler is a steamer.How far should a window flue be?
Flue positionDepending on the size of the boiler, the flue must be positioned a certain distance from the nearest window, door, or air brick. Typically this is around 30-60cm if it's to the side or above the opening, and a bit more if it's below.Can a boiler flue go through a chimney?
No these modern boilers use a combined flue and air intake by putting them both in a chimney you'll be sucking spent gases back into the air intake, a definite no no, .How do you tell if your boiler flue is blocked?
Step 1 - Check Inside the HeaterWipe around the edge of the pipe using a cloth. If it appears oxidized, or there are white stains around the mouth of the flue, this can indicate that it is blocked. You may also notice a bad smell, or have your carbon monoxide alarm sound, if you have one.How do you seal a flue?
Vacuum around the seal to remove any residue dust and fire cement pieces etc. Ensure that the stove lid and collar, as well as the flue pipe, is protected before you apply the new fire cement. Use masking tape around the top and bottom of the seal so that the fire cement can be applied with a neat straight edge.Should boiler flue smell of gas?
The smell of gas is actually added in as a safety feature because gas itself is odourless. So what they were smelling was the unburnt chemical that was coming from the flue. This is actually fairly normal. So if you want a professional gas boiler engineer to check over your boiler system, give JSL Heating a call today.How long should a flue pipe be?
Maximum overall length of straight pipe: 3 m (10 ft.) The assembly should be as short and direct as possible between the stove and chimney. The use of two 45 degree elbows is often preferable to a single 90 degree elbow because less turbulence is created in the exhaust flow and they result in less horizontal run.Where should a boiler be placed in a house?
Boilers could be located in various rooms throughout a property, but most commonly they're installed in either the kitchen, bathroom, bedroom or utility room.Do you need planning permission for a boiler flue?
You don't usually need planning permission to replace or install a new boiler. However, if it needs an external flue this needs to be: No more than 1 metre above the highest part of the roof if it's on the rear or side of a property.What does a flue do?
A flue is a duct, pipe, or opening in a chimney for conveying exhaust gases from a fireplace, furnace, water heater, boiler, or generator to the outdoors. Historically the term flue meant the chimney itself.Should boiler pressure rise when heating is on?
The pressure on your boiler's gauge will increase when the heating is running. But, your boiler shouldn't rise more than 1 bar during its heating cycle. If your boiler heats up more than 1 bar (or close to 1 bar) during start up, there's a good chance there's a fault with the expansion vessel or pressure release valve.Can boilers explode?
While historically, boilers would over-pressurise and explode with alarming regularity, modern boilers are manufactured to be able to withstand excessive pressure, and can typically handle an operating pressure of 20 PSI. When pressures increase beyond this level, the boiler can fail, which can lead to an explosion.How do you know if your boiler is overheating?
A build-up of limescale, sludge and other debris in the central heating system can be detected before the boiler will begin to overheat. If you've noticed that any strange sounds from your central heating system or that any radiators haven't been heating up properly, then they're strong indications of a blockage.What happens if your boiler pressure is too high?
In the vast majority of cases – no. Most boilers will simply shut down via a safety device called a PRV (Pressure Release Valve), or break down when pressure is too high, for too long. The worst case scenario for most boilers suffering from high pressure will be a broken boiler and a soaked carpet.What temperature should my Worcester boiler be set at?
Your boiler controls explainedTo maximise efficiency, we recommend setting your radiator dial to 75 degrees and your hot water to 60 degrees. Once you've got your boiler running at the optimal temperature, you'll want to set the timer for when you need heating the most.Does bleeding radiators reduce boiler pressure?
Bleed your radiators. This reduces the pressure in your central heating system and therefore reduces the pressure in your boiler. Continue bleeding the radiator after you have expelled all the air from it until the pressure gauge returns to safe levels.What pressure should a combi boiler be?
1.5 bar
