The shower vent is normally five feet or closer..
Likewise, how far can shower drain be from vent?
When builders look only at the table without reading the text, they find that a 2-inch-diameter drain can run a maximum distance of 8 feet to the vent.

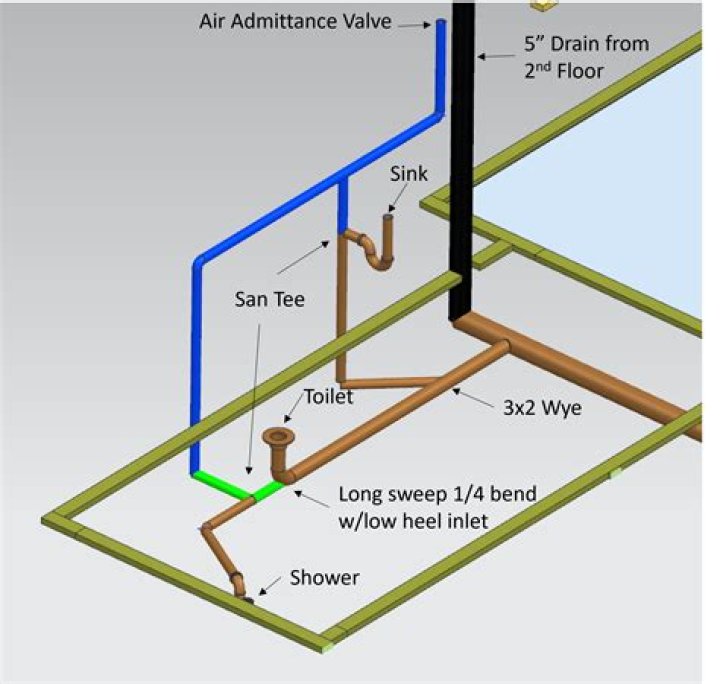

Beside above, can a shower and toilet share a vent? So yes the shower can also be vented by the wet vent along with the toilet. There is one major stipulation when wet venting multiple fixtures when a toilet is one of them: the toilet must be the last fixture connected to the wet vent.
Thereof, does a shower need a vent?
Everyone knows that every toilet, bathtub, sink, shower, etc. will have a drain to carry the water away to sewage treatment, or your septic. Whether you're putting in a tub, toilet, sink, or floor drain, they all need a plumbing vent on the drain to make it work properly.
Where should a plumbing vent be located?
Plumbing air vents also prevent sewer gases from entering the home and allow wastewater gas and odor to escape. Plumbing vent pipes are located on roofs, away from windows or air conditioning units, so that the fumes can easily dissipate.
Related Question Answers
Can a toilet drain be connected to the shower drain?
Your shower drain can connect to the toilet drain, but it cannot connect to the toilet trap arm. So if your "main drain connection" is also the vent for the toilet, the line from the closet flange to the main drain connection is trap arm and the answer is no, the shower cannot tie in here.Do you have to put a trap on a shower drain?
Shower and bathtub drain pipes must incorporate a P-trap; otherwise the health and safety of anyone in the building will be jeopardized by sewer gasses entering the building. A trap will keep water trapped in the pipe, keeping sewer gasses from coming up the drainpipes.Do plumbing vents have to go through the roof?
Alternative to a Roof StackAll the vents connect to it through branch lines, and it vents the main toilet, the most important plumbing fixture in most houses. If you can't put the main stack through the roof, most local plumbing codes allow you to put it through a wall instead, but there are conditions.Does the vent go before or after the P trap?
Vent must be within 24" of the p trap to be efficient. Drain must go down directly into p trap to prevent having a running trap. You do not want a running trap. Vent should be pitched up 45 degrees on run minimum.How far should a vent be from a trap?
trap, the distance from the weir of the trap to the vent pipe opening “shall not” exceed 30 inches.Can a sink and shower share the same drain?
Yes, you can vent the sink drain into the shower drain. 2. Usually, they can share the same vent if the vent is within 5 feet of both fixtures.How far from drain can vent be?
Plumbing Vent System Distances & RoutingIf a plumbing fixture is located too far from the main building vent stack, then its own drain pipe must have its own vent stack connection piping. The usual slope on the fixture drain piping is 1/4" of slope per 12" (foot) of horizontal distance or "run" of piping.Can two toilets share the same vent?
Most houses have more than one toilet, and if they are on the same side of the house, their waste lines can usually tie into the same stack. If they are on opposite sides, however, each may need its own stack. Since the stacks must be vented, this would mean two vent openings on the roof.Can you put a vent in the shower?
You can place the fan directly over the bathtub or shower base, but it's sufficient to position it anywhere near the bathing area. If the bathroom has both a tub and shower, or a shower and a whirlpool tub, the fan should go somewhere between the two fixtures.Can an air admittance valve be used to vent a toilet?
Since you want to install it to vent the toilet, the best solution is to attach the system to the toilet drain. Keep in mind that you need to install Air Admittance Valve at least 4 inches (10 cm) higher than a drain line. To finish the job successfully, you will need a tee sanitarian pipe.Can a vent pipe have an elbow?
Use wide-radius elbows for drains to keep the flow of water at a consistent speed. Note: You may have vent piping, but you still cannot use the tight 90-degree elbow -- sometimes called a "vent elbow" -- if the joint is below the water level, which is usually at the level of the sink.What is wet venting?
Wet venting is a plumbing term and is a method of protecting the trap on a drain pipe on multiple plumbing fixtures. It is a useful method of venting and can save pipe and fittings, time and money. Wet Vent Definition: A waste pipe that also serves as a vent pipe.Can a vent stack have bends in it?
yes the vent can have a 1/4 bend in it.Can a toilet drain drop straight down?
Vertical DropWhen the toilet drain reaches a vertical wall, it drops straight down between wall studs. Although this is a vertical drop, don't use standard 90-degree plumbing elbows, called "hard 90s," to connect the pipes. The sharp corners on these elbow fittings can increase the risk of clogs.Can plumbing vent pipes run horizontal?
To answer your specific question, yes, vent pipes can have horizontal runs, as long as there is no possibility of them becoming plugged with water. In other words, any water that gets into the vent pipe opening must be able to run freely all the way to the sewer, without creating a "trap".Do bathroom vents need to vent outside?
Bathroom vent fans must be vented to the out of doors. Venting this fan into the attic is simply asking for problems. The excessive moisture will cause condensation on the roof members, insulation and eventually cause mold. It is never OK to vent directly into an attic even if the attic itself is vented.Does every P trap need a vent?
All traps need venting in all cases. Without a vent, the water seal in the trap gets sucked out and sewer gases can enter the room.How do you vent bathroom plumbing?
Vanity VentingIn new construction, the simplest way to vent a bathroom group is usually to install a single vertical vent pipe behind the bathroom sink. This works as long as all the plumbing fixtures connect to the main drain line in the floor within 6 to 10 lineal feet of the sink drain.Why does my toilet bubble when I shower?
As you shower the water doesn't drain away fast enough, and the plumbing begins to fill with water. As the pipes fill, air may be forced out through the toilet trap causing "bubbles". Since the tub is the lowest drain, the water backs up there first.
