How does a Jandy 3 way valve work?

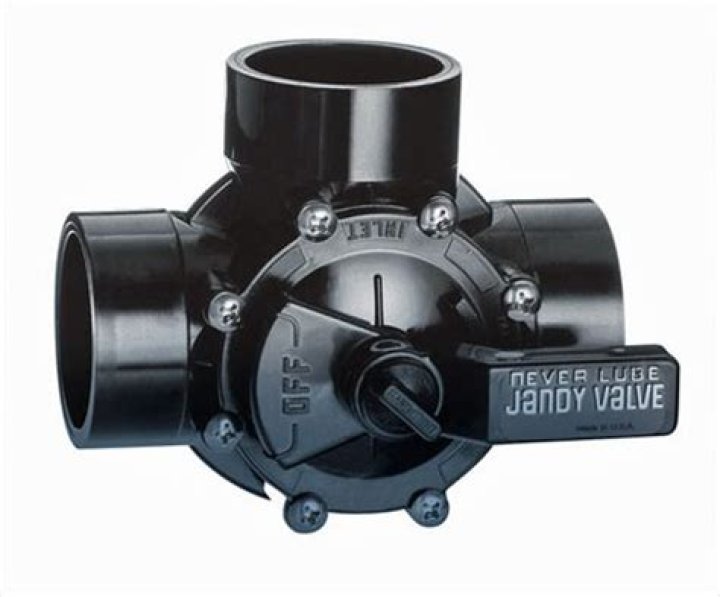

Three Way Jandy ValvesThe three port Jandy valve operates like a plumbing tee and allows you to bring two lines together and select which line you want the water to go through. The basic operation of the off "block" is the same. If you block off one port, the water flows freely between the other two ports.

Likewise, how does a 3 way pool valve work?

In effect a 3-way valve operates as a Tee fitting, with adjustable flow rates to or from each pipe attached to the valve. A simple pool may have one 3-way valve installed in front of the pump, to control the flow from the skimmer and main drain. This results in 25% flow from the drain, and 75% flow from the skimmer.

Beside above, should pool skimmers be on all the time? Although it's generally recommended that all the pool water undergo filtration every 24 hours, the pump does not need to run all the time. A proactive, productive and energy-saving maintenance activity is to remove the debris floating on the pool surface with a hand-held skimmer.

Keeping this in consideration, should skimmer valve be open or closed?

A normal pool valve setting would have the skimmer valve(s) fully open, main drain half-open and spa drain fully closed. To operate a suction pool cleaner or manually vacuum the pool, you can close other skimmers, or close the main drain, to obtain more suction through the skimmer you are using.

Does my pool need a check valve?

Raised Pool Pumps The most common use for a check valve is to hold the water in the pump when the motor shuts off. When doing so however, you will need to install check valves on all vertical suction pipes, unless one pipe normally has a closed valve, like a spa drain pipe.

Should pool main drain be open or closed?

Opening the main drain and then closing the cleaner valve. So it is either main drain+skimmer or cleaner+skimmer. Never main drain+skimmer+cleaner all open at the same time. All valves open will not hurt the equipment, but the cleaner will not operate correctly.

What does a pool diverter valve do?

Diverter Valves are installed in a pool piping system to control or divert the flow of water from one part of the system to another.

How does pool valve work?

Pool valves are used to control the direction of water flow, to and from the pool, and in and out of equipment. It allows for consolidation of two leaky, hard to turn gate valves into one simple operation. This makes it possible to reduce the number of valves and prevent pipes from going every which way.

How does a pool valve actuator work?

Pool Valve Actuators are used to provide an automated push button command to one or more of the Diverter Valves in you Pool's water flow system. They allow you to turn on your water Pool's features or Spa with a push of a button. This guide shows you some of the common applications of Pool Valve Actuators.

Where is the pool main drain valve?

During normal operation, water flows to the filtering system through two or more main drains at the bottom of the pool and multiple skimmer drains around the top of the pool. The main drains are usually located on the lowest point in the pool, so the entire pool surface slants toward them.

How do you open a valve?

The proper way to open a gate valve is to gently turn the handle counter-clockwise (to the left) without applying excessive force – do not 'jerk' the handle. A typical 1″ main control valve for a water line will take about six full turns to fully open. Stop turning as soon as there is any resistance.

What is a Jandy?

The two port Jandy valve controls the flow of water through a pipe, much like a traditional gate valve or ball valve would operate. In the graphic, the off "block" is to the side, allowing the water to pass freely through the valve.

What is a pool plunger valve?

Write a Review (Plunger Valve)The Intex Replacement Plunger Valve set is designed to fit various Intex above ground pools to open or close the flow of water from the pool into the filtration system. This allows for easy replacement of pool hoses, filter pumps, chlorine generators or other Intex pool equipment.

How do you adjust a diverter valve?

You can easily adjust this yourself in a few minutes.

Turn off the water supply to the washroom.
Look beside, underneath or on the bathtub spout for the diverter's holding screw.
Grasp the spout and pull it straight out.
Unscrew the bolt holding the diverter to the small pipe in the wall.

Where is the diverter valve located?

It's usually a lever that's situated behind the bath taps that you can pull up or push down. System and conventional boilers don't require a diverter valve. This is because the hot water they produce is stored in a hot water cylinder.

What is a diverter valve?

A shower diverter, also known as a diverter valve, is a valve that diverts the flow of water from the bathtub faucet to the shower head. Thus, a diverter valve allows you to have a shower and a bathtub in the same space.

How do you install a diverter valve?

Follow these steps to install a shower head diverter valve:

Remove your regular shower head.
Screw the diverter valve onto your water pipe.
Place the original shower head on the diverter valve, again making sure you have a snug fit.
Install the hand-held shower head onto the diverter valve.
