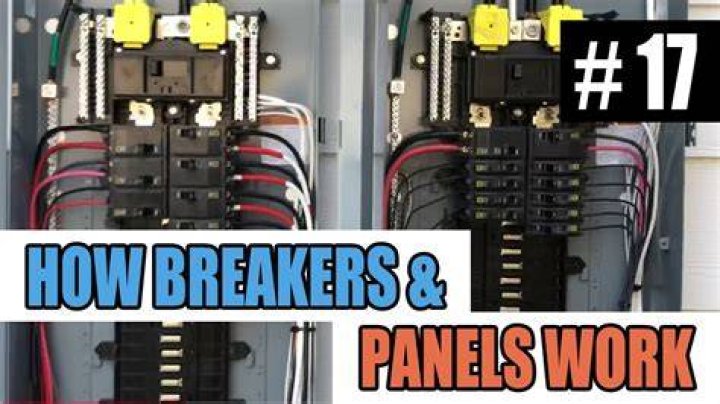

How does a circuit breaker panel work?

Circuit breakers snap into place onto one or both of the bus bars to provide power to the circuits. Double-pole circuit breakers provide 240 volts to a circuit and snap into both hot bus bars. The electrical current leaves the service panel through the hot wires that are connected to the circuit breakers.

Then, how does a circuit breaker work?

A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current from an overload or short circuit. Its basic function is to interrupt current flow after a fault is detected.

Beside above, how many circuit breakers does a panel have? Most breaker boxes are 100, 150, or 200 amps. Add the amperages of all the individual breakers in the box. The total may be more than twice the total amperage of the box. For example a 100-amp service panel may have circuit breakers that add up to more than 200 amps.

Furthermore, do circuit breakers work in both directions?

Run-of-the-mill circuit breakers do not pay attention to the "direction" of current (the fact that it's AC current ignored for this simple answer). Yes "regular" circuit breakers work both ways. Panels without a main breaker are sometimes fed via a double breaker placed along with all the other breakers.

Can I replace a 15 amp breaker with a 20 amp breaker?

The answer: It's possible, but not advisable without an electrician evaluating the situation. You should never just upgrade from a 15-amp breaker to a 20-amp one just because the current one is tripping. Otherwise, you may burn your house down via electrical fire.

How do you tell if a breaker is 15 or 20 amp?

Electrical plugs designated as 20-amp will not fit into 15-amp outlets.

A 15-amp circuit is usually served by 14-gauge wire and is protected by a 15-amp circuit breaker or fuse.
A 20-amp circuit, protected by a 20-amp breaker or fuse, must be served by 12-gauge or 10-gauge wire.

How do you know if you have a bad breaker?

If the switch flops back and forth and there is not definite “on” or “off” position, the breaker is probably bad. If the circuit breaker does NOT trip immediately: Chances are you have an overloaded circuit, meaning that the circuit has more electricity flowing through it than it is rated for.

What amperage will a 20 amp breaker trip at?

16 amps

How many outlets can be on a 15 amp breaker?

10 outlets

Is a double 20 amp breaker 40 amps?

The breakers themselves are relatively narrow and occupy a single slot in the home's breaker box. Double-pole breakers, on the other hand, are typically rated for 20 to 60 amps and supply 240-volt power to large appliances, like electric dryers and ranges.

How do you fix a circuit breaker?

Instructions

Turn off the light switches and unplug appliances in the room that has lost power.
Find your circuit breaker box and open the cover.
Locate the tripped breaker.
Reset the breaker by moving it to the full "off" position and then back to "on." That may clear an overload and return power to the room.

What is a 30 amp breaker used for?

Double-pole breakerThe 15-amp and 20-amp breakers often handle baseboard heaters, 30-amp serve water heaters and electric dryers, 40- and 50-amp are for electric ranges, and the 70-amp could serve a large air conditioner or a subpanel.

How do I know if my breaker panel is overloaded?

Be on the lookout for the following signs that your panel is overloaded:

Power Outages. By this, we mean both full-on outages and things like tripped breakers and flickering lights.
Sparks.
Overheating.
Buzzing Sounds.
Frayed or Damaged Insulation.

What should you not touch in a breaker box?

Do not stand in water and touch anything in a electrical panel!!! If you are about to remove that panel cover and it is damp in the area or water leaking anywhere.do NOT even attempt it.

How do you reset a breaker?

How to Reset a Circuit Breaker

Turn off all the lights and unplug everything in the affected room or rooms.
Take a flashlight and open the circuit breaker panel so you can see the circuit breakers.
Look for the circuit breaker with the switch in the center position.
Flip the switch to off, and then flip it to on.

Where does the neutral wire go in a breaker box?

The neutral (white) from the new cable attaches to the AFCI. On a main panel, you connect the ground wire from the new cable and the neutral (white) pigtail from the AFCI to the neutral bus. If you're installing a breaker on a subpanel, place the neutral and ground on separate bus bars.

What type of circuit breaker do I have?

Circuit breakers have markings stamped on the side of them and are usually located inside the panel cover door. There is a label that will tell you what type of breaker is needed for installation in that particular panel. On the market, there are home and commercial circuit breaker panels.

What is a circuit in a breaker box?

An electrical circuit breaker panel is the main distribution point for electrical circuits in your home. It usually provides between 100 and 200 amps of power, depending on the rating of the panel. It flows through an electrical meter, which records your electricity usage, and then into the panel.

Are smoke detectors on a breaker?

Many residential smoke alarms connect to the home electrical system as well as a battery. The battery serves as a backup should the power go out. However, even something as simple as switching off a circuit breaker can prove difficult when you have no idea which breaker operates the alarm.

Can you back feed a breaker?

When you back feed a breaker, instead of the wires coming out of the breaker going to your circuits (outlets), the generator wiring is sending power into the breaker. If you look at the back panel of a load cente (breaker panel) you will see a buss bar (flat bar with spikes sticking up).

Can you backfeed through a circuit breaker?

In your home, it routes through a circuit breaker where it is distributed to appliances, lighting, and outlets. Backfeeding is a dangerous and possibly illegal way to power your home by connecting your generator to an appliance outlet (like a dryer outlet) and allowing electrical power to flow in reverse.

What does it mean to backfeed a breaker?

Description. By definition, backfeeding causes electrical power to flow in the opposite direction from its usual flow. A power station will typically backfeed (and thus consume power) when it is shut down, due to its own local loads (e.g. lights or repair equipment).

Can I plug a generator into a 220v outlet?

Generators should never be connected to a home electrical outlet and should not be directly connected to the circuit breaker panel. If you plug your generator directly into a wall outlet, then the wiring in your house is no longer protected by a circuit breaker or fuse in your power panel.
