Just so, how do I know if my flywheel key is sheared?
The symptoms of a sheared flywheel key range widely from a barely noticeable misfire to a no-start condition. In between these extremes the engine may misfire noticeably, run rough, backfire, be difficult to restart hot, or lack power. Advanced timing can cause engine overheating.
Subsequently, question is, how does a lawn mower Flywheel work? Simply, it stores the momentum from combustion to keep the crankshaft turning in between the engine's power strokes. The flywheel stores energy when torque is applied by the energy source, and it releases stored energy when the energy source is not applying torque.
Also, what does a flywheel puller do?

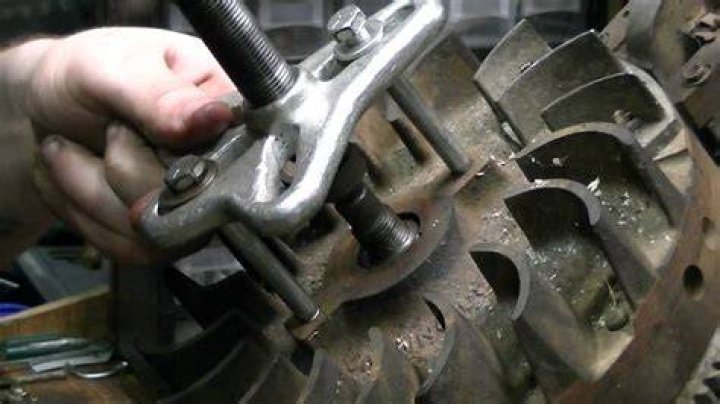

A flywheel puller is a tool used to separate the flywheel from the taper on the crankshaft. This is a double-ended flywheel puller. It has different sized thread patterns on either end, allowing it to be used in two different kinds of flywheels.
Which way does a Briggs and Stratton lawn mower rotate?
Briggs engine rotation. The engine should turn clockwise.
Related Question Answers
How do you remove a flywheel from an engine?
The flywheel is held in place by retaining bolts, which you can find in its center. Remove these with a wrench, and then carefully remove the flywheel from the crankshaft by pulling it away. Put the replacement flywheel in its place and replace the retaining bolts, tightening them firmly.What does a flywheel key look like?
The flywheel key is a rectangular metal peg that keeps the crankshaft and flywheel aligned when you tighten the flywheel nut. If the mower blade hits an object with enough force to knock the flywheel out of alignment, the flywheel key breaks, protecting expensive parts such as the crankshaft from damage.What causes a flywheel key to shear?
Re: what causes a flywheel key to shear??The key is shearing because you're asking it to hold the flywheel in place while running. The key should only be for locating the flywheel correctly before bolting it on. The fly wheel should be held on to the crank by pressing it onto the snout of the crank.How do you test a flywheel magnet?
Mark the magnets on the flywheel by labeling them in the position they sit with a small piece of masking tape on the flywheel. You can test the magnets for position by using another small ceramic magnet. If the magnet is repelled, label the flywheel magnet R, and if it is attracted, label the flywheel magnet A.What does the flywheel do in a small engine?
What is a small engine's flywheel? The flywheel on your small engine was originally designed to store the momentum from combustion to keep the crankshaft turning in between the engine's power strokes. Flywheels on today's small engines serve several other purposes.How do you install a flywheel?
Clean the surface of the crankshaft flange using carburetor cleaner and a shop towel. Insert the flywheel back onto the crankshaft while having at least one mounting bolt ready to install. Once installed check the alignment of the remaining bolts because the flywheel can only be mounted one way.What is a flywheel brake?
Flywheel Brakes. Flywheel brakes are used to stop the flywheel from turning when a clutch has been disengaged and the motor is shutdown. Typically, these brake systems are installed on stamping, forging and metalforming equipment. Flywheel brakes are required for presses due to safety regulations.What is a pulley puller?
Most commonly used for power steering pumps, this puller uses a notched hub and eccentric ring with the ever-present center stud to grab the notch at the pulley's center (most press-fit power steering pulleys have this) and pull the sucker off. This is a pulley install/removal tool. It works with most press-on pulleys.What are pullers used for?
What Are Pullers Used For? A puller is a tool used to remove parts such as bearings, pulleys or gears from a shaft. They have legs, typically two or three which circle around the back or inside of a part and they also have a forcing screw which centres up against the end of a shaft.How do you remove a crank pulley without a puller?
There is a way to do it. You put a wrench on the pulley bolt and block the other end against the floor or the frame. Then you use the starter motor to turn the engine (DO NOT START IT, JUST TURN IT) for at most one or two revolutions of the crank. Just enough to break the bolt loose.What is a flywheel on a motorcycle?
Flywheel is use to store the energy and It help the vehicle to run smoothly. Engine have four stroke - Intake, Compression, Power and Exhaust. There is a figure which show a curve between the torque and stroke time. In motorcycle Magnetic Flywheel is use. It connects next to the crankshaft.Where is the flywheel on a motorcycle?
The location of flywheel is directly next to the engine shaft (crack shaft)directly next to flywheel is a clutch with a spring arrangements and a diaphragm clutch (its motorcycle).
