How do you measure perpendicularity in CMM?

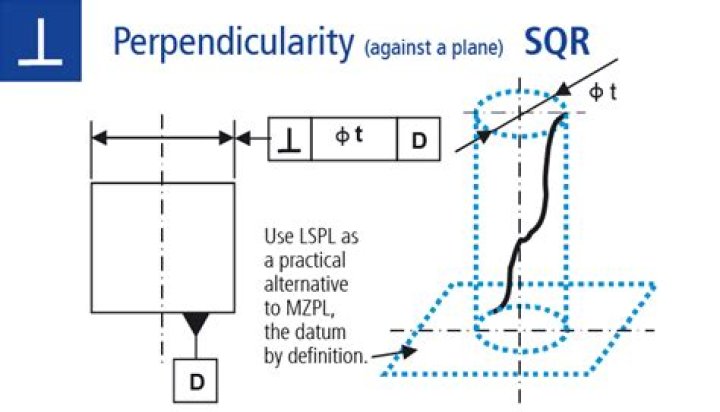

Using a Coordinate Measuring Machine (CMM)Set the datum by putting the stylus on multiple points on the datum plane (surface plate), and then measure the perpendicularity by putting the stylus on the measurement plane (target).

Also, how do you measure perpendicularity?

Perpendicularity is measured using a height gauge, similar to flatness, however, the gauge (or part) is locked to a 90° datum to measure how perpendicular the surface is. The entire surface has to be measured if it is a flat feature.

Beside above, does true position control perpendicularity? True Position using features of size (MMC/LMC) However, with true position you can make the tolerance referenced to several datum's as opposed to just one with axis perpendicularity. When you callout true position using datums on the face, and sides of the part – perpendicularity is controlled as well.

In this regard, what is perpendicularity tolerance?

Perpendicularity tolerance symbol is shown as "⊥". Perpendicularity tolerance is a three-dimensional geometric tolerance that controls how much a surface, axis, or plane can deviate from a 90 degree angle or it is can be defined as a condition of a surface, median plant, or axis at 90 degree to a datum plane or axis.

How is angularity measured?

Angularity is measured by constraining a part, usually with a sine bar, tilted to the reference angle, so that the reference surface is now parallel to the granite slab. By setting the part at an angle the flatness can now be measured across the now horizontal reference surface.

How is flatness measured?

Flatness is can be measured using a height gauge run across the surface of the part if only the reference feature is held parallel. You are trying making sure that any point along the surface does not go above or below the tolerance zone.

How concentricity is measured?

Concentricity is considered the circular form of GD&T symmetry. While symmetry measured the true midpoint plane of a feature to a datum plane or axis, concentricity measures the derived midpoint axis to a datum axis. If a part is perfectly round, the runout will equal the concentricity.

How do you measure parallelism?

Take the measurement of the opposing sides.Determining parallelism means finding that two opposing sides of an object, which are supposed to be parallel, are consistently far apart at all positions. To test this, you need to measure the distance between the two surfaces at multiple positions.

What is MMC & LMC?

MMC stands for Maximum material Condition whereas LMC stands for Least Material Condition. MMC is the situation where the part having the maximum material within the given tolerance zone. LMC is the situation where the part having minimum possible material within given tolerance zone.

What is perpendicular line?

In elementary geometry, the property of being perpendicular (perpendicularity) is the relationship between two lines which meet at a right angle (90 degrees). A line is said to be perpendicular to another line if the two lines intersect at a right angle.

What is difference between flatness and parallelism?

Flatness – The condition of a surface having all elements in one plane. Parallelism – The condition of a surface, line, or axis which is equidistant at all from a datum plane or axis. It's not rocket science. Flatness is a feature compared to itself, while parallelism requires that a feature be compared to a datum.

How do you measure circularity?

Gauging / Measurement:Circularity is measured by constraining a part, rotating it around the central axis while a height gauge records the variation of the surface. The height gauge must have total variation less than the tolerance amount.

What are the 5 levels of CMM?

There are five levels of the CMM:

Level 1 - Initial. Processes are usually ad hoc and the organization usually does not provide a stable environment.
Level 2 - Repeatable. Software development successes are repeatable.
Level 3 - Defined.
Level 4 - Managed.
Level 5 - Optimizing.

What are the types of CMM?

Different Types of CMM Machines - How to choose a CMM Machine. There are four basic types of coordinate measuring machines: bridge, cantilever, gantry and horizontal arm. Each one provides unique advantages based on the components being measured. Bridge.

What is CMM unit?

CMM. Full form: Cubic metres per minute. Definition: The volume of air in cubic metres that the fan can move in a minute at a defined speed. Another unit is CFM. Cubic feet per minute.

How much does a CMM cost?

Today, the price range of CMMs varies from around $30K to over $1M, depending on the manufacturer's specifications. Similarly, the cost of various probe/sensor configurations ranges from a few thousand dollars to tens of thousands.

How does a CMM measure flatness?

The flatness of the optically flat surfaces are measured by techniques using the CMM stylus. The stylus can be operated or programmed to take specific, accurate measurements along the surface of the object and compare the data automatically to produce a report on the flatness of the object.

Do datums need to be perpendicular?

The standard defines a datum as a theoretically exact point, axis, or plane. It may require using datum targets, but a theoretical plane can still be constructed from those targets. So again, it's true that the theoretical datums mentioned in a feature control frame are perpendicular to each other.

How do you calculate true position?

True position can be calculated using the following formula: true position = 2 x (dx^2 + dy^2)^1/2. In this equation, dx is the deviation between the measured x coordinate and the theoretical x coordinate, and dy is the deviation between the measured y coordinate and the theoretical y coordinate.

What is runout GD&T?

In GD&T, runout tolerance is used to control the location of a circular part feature relative to its axis. This is different than circularity, which controls overall roundness. Runout helps to limit the axis offset of two parts to ensure they can spin and wear evenly. An example of runout tolerance is shown below.

What does a parallelism tolerance of 0.005 mm mean?

In mechanical part drawings, parallelism tolerance allows the designer to specify the degree to which a feature's orientation may vary with respect to its referenced datum by creating a tolerance zone parallel to that datum.

What is squareness tolerance?

GD&T Training Definitions. Squareness - Squareness is ageneral term to describe or define the variations in angle between two surfaces or features oriented ninety degrees to eash other.

What are the 3 types of tolerances?

Three basic tolerances that occur most often on working drawings are: limit dimensions, unilateral, and bilateral tolerances. Limit dimensions are two dimensional values stacked on top of each other.
