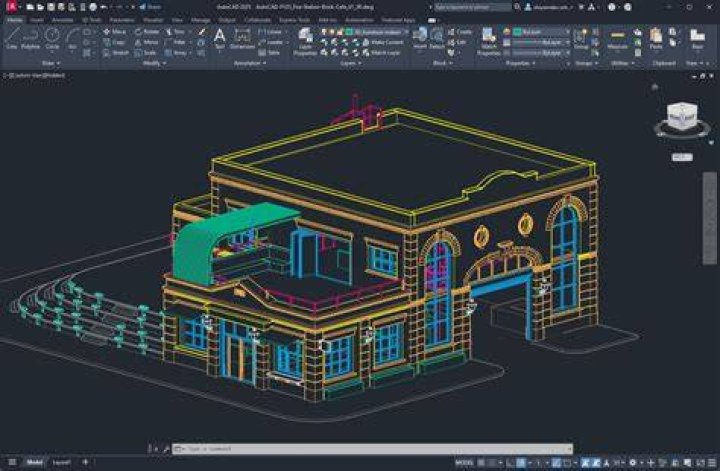

How do you make a 3d wall in Autocad?
James Holden general
- Draw the 2D floor plan with lines or polylines. Use architectural units. You should be in the 3D Modeling workspace.
- Create a new layer for the walls and make it current.
- Set a view that will let you see the 3D walls. For example, display the View toolbar and choose SE Isometric.
.
Also know, how do you create a wall in AutoCAD?
Walls are the basic components of any building plan.
- In the Home tab, in the Build panel, click Wall to start the walladd command.
- To create a wall segment, snap to the start of a line.
- To add an arc segment, right-click and select Arc in the context menu.
- To complete the wall, enter c for Close.
Furthermore, what is 3d drawing? 3D drawing simply means to depict something that has Volume or Space and this creates the illusion of Height, Width and Depth in an image, when it is viewed from a particular Angle.
Also, how do you create a 3d room?
To get started, draw your floor plan, choose your furnishings, and see your room design in 3D – it's that easy!
- Draw Your Floor Plan. Draw a floor plan of your room in minutes using simple drag and drop drawing tools.
- Furnish Your Room.
- See Your Room in 3D.
How do I draw a 3d elevation in AutoCAD?
To Create a 2D or 3D Elevation
- Draw an elevation line in the drawing.
- Select the elevation line.
- Click Building Elevation Line tab Modify panel Generate Elevation.
- Select the type of elevation object you want to create:
- For Style to Generate, select a style for a 2D elevation.
Related Question Answers
What is the thickness of wall in AutoCAD?
There is no standard thickness of walls. There are a variety of materials used to construct walls. A few are listed here. And if the 1 brick wall where exposed to the environment, requiring a moisture barrier or insulation, allow 50mm (2″) bHow do I build a wall in AutoCAD 2019?
- Select a wall tool. Note: Alternatively, you can click Home tab Build panel Wall drop-down Wall.
- Specify the wall segment start point.
- On the command line, enter A for Arc.
- Specify the wall segment midpoint.
- Specify the wall segment endpoint.
How thick should exterior walls be?
When you add the exterior sheathing to the 2x6, you get just under 6 total inches as the sheathing is normally just a tad under 1/2-inch thick. Once the walls are finished, the thickness jumps to 4.5 inches for a 2x4 wall and just under 6.5 inches for a 2x6 wall.How do I draw a wall in AutoCAD 2020?
- Select a wall tool.
- Specify the wall segment start point.
- On the command line, enter O for Offset, or right-click and click Offset.
- Click to select the wall component to offset from or specify a point outside the wall segment.
- Specify the wall segment endpoint.
How do you color walls in AutoCAD?
- Select the wall you want to change, right-click, and click Edit Object Display.
- Click the Display Properties tab.
- Select the display representation where you want the changes to appear, and select Object Override.
- If necessary, click .
- Click the Layer/Color/Linetype tab.
How do you offset walls in AutoCAD?
1 Click Home tab ➤ Modify panel ➤ Offset. 2 Enter 28300 as the offset distance, and press the [Enter] key. 3 Select the inside line on the newly drawn east wall. Move towards the center of the plan, and click to offset the line. 4 Press the [Enter] key to end the command.Is AutoCAD good for 3d modeling?
It's used very little for 3D modeling, as it was not originally designed for it. It can do basic 3D from 2D sketches and 3D primitives and direct modification of 3D solids. However, learning AutoCAD 3D won't help much in learning a parametric 3D modeling software. When it comes to 2D drafting, no one can beat autocad.Is AutoCAD good for 3d printing?
Autodesk 3ds Max, Maya, Inventor, Fusion 360, and the AutoCAD portfolio are all good software packages for 3D printing. Maya can also 3D print. Although it lacks the STL check modifier it is still valid software for 3D printing and it works on both Mac and Windows.How do I change planes in AutoCAD 3d?
To Change to a View of the XY Plane- Click View menu 3D Views Plan View.
- Select one of the following options: Current (for the current UCS) World (for the WCS) Named (for a saved UCS) Note: PLAN changes the viewing direction; it does not change the current UCS.
What is 3d Modelling in AutoCAD?
AutoCAD 3D modeling allows you to create drawings using solid, surface, and mesh objects. Solid, surface, and mesh objects offer different functionality, that, when used together, offer a powerful suite of 3D modeling tools.How do I view 3d in AutoCAD?
To Display a Preset 3D View- Click View tab Views panel View Manager. Find. The View tab is not displayed by default, so an alternative method is to enter VIEW at the Command prompt. You can also employ the ViewCube in the top-right corner of the drawing area.
- Select a preset view (Top, Bottom, Left, and so on).
