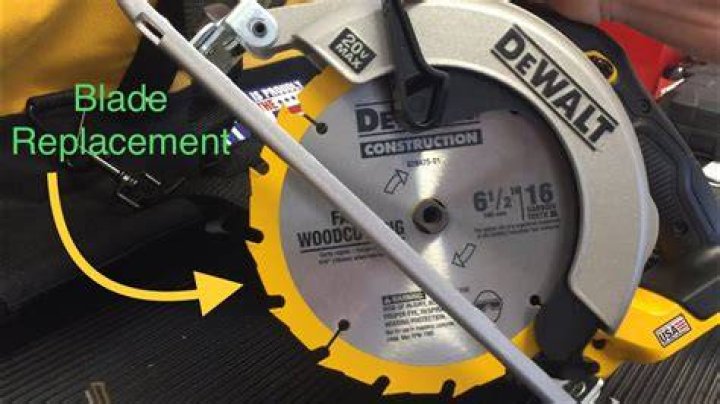

How do you change the blade on a Dewalt cordless circular saw?
Daniel Johnston updates
VIDEO
.
Simply so, how do you change a blade on a circular saw?
3 Use the blade wrench to remove the arbor nut holding the blade in place. To loosen the nut, turn the wrench in the same direction as the blade cuts. 4 Retract the saw's upper blade guard and remove the old blade. 5 Slip the new blade onto the saw's arbor, making sure the saw teeth face in the direction of rotation.
Subsequently, question is, where is the arbor lock on a circular saw? Place the saw on a wooden surface and pull back the blade guard. If the saw has an arbor lock button on the top of the housing, press it in. The arbor is the shaft the blade installs on. If there's no lock button, press the blade into the wooden surface.
Then, what is a blade wrench?
Blade Wrench. The metal blade wrench is used to tighten and loosen the blade bolt when changing the saw's blade.
How do you tighten a circular saw blade?
In general, the blades on right-handed circular saws turn counterclockwise, so you'd tighten the bolt clockwise; the blades on left-handed circular saws turn clockwise, so you'd tighten the bolt counterclockwise. Hold the outer flange (rim) of the nut with a wrench to keep it from turning.
Related Question Answers
When should I change my circular saw blade?
Ways to tell its dull:- it starts binding.
- it tears/chips the substance more than usual.
- it burns the wood.
- just a pain to use = a sharp blade should let you push the saw forward with minimum effort. If you find yourself forcing the saw forward (not ideal from a safety perspective), change the blade.
Why does my circular saw blade wobble?
The most common cause of wobble like this is that the bearings or bushings are worn out. These are the things that hold the main shaft in place. They should be a close fit to the shaft, and the shaft rotates within them. When they are worn out, there is too much room and the shaft flops around or wobbles.Are circular saw blades Universal?
Circular saw blades are designed for use with miter saws, table saws, radial arm saws, cut-off saws and standard circular saws. Many circular blades can be used interchangeably between devices. This guide will help you use the correct blade for each job.How do you change a Porter Cable circular saw blade?
How to Replace the Blade Guard on a Porter Cable Circular Saw- Remove the saw blade. Remove the nut that secures the blade to the saw.
- Remove the guard. Use a flat-head screwdriver to pry up the guard retaining ring.
- Replace the guard. Use your screwdriver to pop the hooked end of the spring into the hole on the guard cover.
- Reinstall the blade. First set the flange back in place.
How do I change the blade on a Makita circular saw?
Be sure the blade is installed with teeth pointing up at the front of the tool. Use only the Makita wrench to install or remove the blade. To remove the blade, press the shaft lock so that the blade cannot revolve and use the wrench to loosen the hex bolt clockwise. Then remove the hex bolt, outer flange and blade.Can I use a smaller blade on my circular saw?
It is never recommended to use a larger or smaller blade than the recommended size of your manufacturer for the saw that you have. Most circular saws have a blade size of around 7 ¼ inch blade for the corded versions of these saws, some of the cordless saws have a lot smaller capacity than the corded versions.How do you put a blade in a jigsaw?
To change the blade of jigsaw without a tool-less system:- Step 1 - Loosen Screw. Locate the screw holding the shank of the blade in place.
- Step 2 - Remove Old Blade. Pull out the old blade from the blade clamp and set it aside.
- Step 3 - Insert New Blade.
- Step 4 - Tighten Screw.
Are cordless circular saws any good?
One of the best saws that every DIY enthusiast needs in their toolshed. Offering exceptional power and speed as well as great comfort, it has the ability to cut through material easily at both 90 and 45 degree angles. The DEWALT Bare-Tool DC390B 18-Volt Cordless Circular Saw is a must have.How do you keep a circular saw from binding?
Prevent BindingWhen cutting lumber on sawhorses, plan the cut outside the sawhorse pair (not between them). Allow the shorter piece to fall away, while the longer piece stays supported on the horses. Cutting between the horses causes lumber to pinch the blade as it falls through.Why does my circular saw keep stopping?
If your hand is asserting a sideways pressure that will cause binding and the saw will stop. Even a slight sideways pressure combined with dirty/dull blade will cause stoppage. When I first starting using my circular saw, 80% of the time I forgot to adjust the depth of cut, making it work harder than it needed to.Are all Dewalt drills brushless?
The DEWALT 20-Volt MAX Lithium-Ion Cordless Brushless Compact Drill/Driver is designed with a high performance brushless motor that delivers 340 unit watts out (UWO) and up to 57% more runtime over brushed motors. The drill/driver can complete a wide range of applications to help you power through the toughest of jobs.What is Dewalt Flexvolt?
The 6.0 AH FLEXVOLT™ Battery** is the world's first battery that automatically changes voltage when you change tools. It offers the following: Up to 4X Runtime when used with DEWALT 20V MAX* tools. The Power of Corded when used with 60V or 120V tools.How do you read a Dewalt serial number?
On DEWALT tools, the model number and type number are usually on the warning label or name plate.- These labels are typically found on the bottom or side of the tool.
- For larger equipment, like generators, the label can be found on the top of the equipment.
What is the best circular saw?
- The Best Circular Saw.
- 1 Makita SP6000J1 6-1/2-Inch Plunge Circular Saw.
- 2 SKILSAW SPT77WML-01 Lightweight Circular Saw.
- 3 DEWALT DWE575SB Lightweight Circular Saw.
- 4 Rockwell RK3440K Versacut Ultra-Compact Circular Saw.
- 5 PORTER-CABLE PCE310 Heavy Duty Circular Saw.
- 6 Makita 5007MG Circular Saw.
