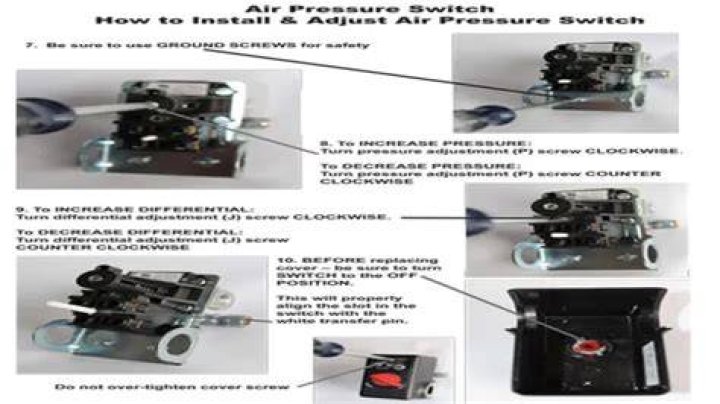

How do you adjust a compressor pressure switch?

Step-by-step procedure:

Starting from an empty tank. Start the compressor and let it run until it reaches the cut-out pressure.
Open a drain to slowly let some air escape. Watch how the pressure slowly comes down.
Wait until the compressor starts.
Adjust the cut-in pressure with the big set screw.
Close the drain valve.

Furthermore, how do I know if my compressor pressure switch is bad?

The most common symptom of a bad AC pressure switch is most likely that you will notice that the AC compressor is cutting on and off rapidly when you are idling your car. These switches between on and off can be noticeable on the engine's rpm, and you may see or feel fluctuations from it.

Additionally, what should my pressure tank be set at? Prior to operation, with the tank, empty of water, the pressure should be 2psi below the cut-on pressure. So, for example, with a 30-50 pressure switch (factory default setting), air pressure in the tank will equal 28psi. If the pressure switch is adjusted to 40-60, the cut-on pressure will be 38psi.

Hereof, how does a compressor pressure switch work?

Air compressor pressure switches use air lines to monitor pressurized air as it moves to and from your air tank. All pressure switches have some element that reacts when pressure is applied to it. When the air pressure in your tank drops far enough, the diaphragm will revert back to its normal shape.

Why does my pressure pump cut in and out?

Loss of air charge is, perhaps, the most common reasons your water pump will short cycle. If you have an older, non-bladder type water pressure tank, this is almost always the reason. If it is, clean and fix it, then use the water tank air inlet valve to pump air into the tank with a bicycle pump.

What are two types of pressure switches?

Although there are many different types, pressure switches fall under two basic classifications: electromechanical and solid state. Tra- ditionally, pressure switches have been electromechanical devices.

What is the cut in pressure?

Cut-Off Pressure: This is the high pressure that turns off the pump. Cut-On Pressure: This is the low pressure that starts the pump. This is typically 20 PSI less than the cut-off pressure.

What is differential setting in pressure switch?

A differential pressure switch is a device which utilizes a differential air pressure to actuate an electric switch at a pre-set actuation point. This may be the difference between two positive or two negative pressures, one of each, or a positive and atmospheric or a negative and atmospheric pressure.

How do you test a pressure switch?

Answer:

Set your meter to volts AC, turn your furnace on so it is calling for heat.
There should be either two or three wires going into your pressure switch.
Probe one lead of the pressure with one lead of your meter while touching the other lead of your meter to ground.

How do I adjust my water pressure?

Position the jaws of the wrench over the top nut of the adjustment screw. Turn the screw in a clockwise direction to increase the water pressure and a counterclockwise direction to decrease water pressure. Make the adjustment one or two full revolutions at a time. Open a water faucet to test the pressure.

What happens if pressure switch goes bad?

If the switch is bad, it won't start the well pump and you won't have water, so testing the switch is your first step. Remove the cover and bang a screwdriver handle sharply against the tube below the switch to jar the electrical contacts. If you see a spark and the pump starts, the pressure switch is the problem.

How do you know if your AC relay is bad?

Signs of a Bad or Failing AC Compressor Relay

Inconsistent cooling. The AC compressor is powered by the relay.
AC compressor is not turning on. One of the most obvious signs that the AC relay may have a problem is that the compressor is not coming on at all.
No cold air.

What causes a high pressure switch to trip?

Things that can cause the high-pressure switch to trip include: Bad condenser fan motor. Condenser Coils plugged up with dirt and debris. Fins on the coils bent.

What pressure should a compressor cut out?

A rule of thumb is that the pressure differential of at least 1 bar (14 psi). If the difference between the cut-in pressure and the cut-out pressure is set too small, the compressor will quickly start and stop repeatedly.

How much does it cost to replace an AC pressure switch?

The average cost for an air conditioning refrigerant pressure switch replacement is between $130 and $164. Labor costs are estimated between $52 and $67 while parts are priced between $78 and $97. Estimate does not include taxes and fees. When would you like to drop off your car?

How do you change an AC pressure switch?

Step 1: Locate the A/C pressure switch.
Step 1: Disconnect the negative battery cable.
Step 2: Remove the switch electrical connector.
Step 3: Remove the switch.
Step 1: Install the new switch.
Step 2: Reinstall the electrical connector.
Step 3: Reinstall the negative battery cable.
Step 4: Test the A/C.

Why do pressure switches fail?

The pressure switch, which is normally open (switch is off), senses the drop in pressure and closes to complete the circuit (switch is on). A pressure switch that fails to turn on could be caused by a number of problems, including: Failure of the draft inducer motor. Restricted intake air vent.

What is the purpose of a pressure switch?

A pressure switch is a form of switch that closes an electrical contact when a certain set fluid pressure has been reached on its input. The switch may be designed to make contact either on pressure rise or on pressure fall.

Why does my compressor not turn off?

One of which is when your air compressor is not able to pump the necessary air to reach the cut out pressure switch level. It could be because of the failure of the intake valve and pressure valve, a broken gasket inside pump, or an impeding flow in the tank check valve.

What is an unloader?

Your reciprocating piston compressor will have a smooth start up, thanks to the unloader valve. It blows off the pressure inside the discharge pipe when the compressor stops.(There is another type of unloader valve, which can be found at the inlet of rotary screw compressors, also called inlet valve or loading valve).

Why does my compressor keep running?

Leakages are the most common reason why an air compressor runs nonstop. If there is any pressure lost along the way, the air pressure tool will not reach the set cut-out point which should trigger it to stop.

Do AC compressors have a pressure relief valve?

The air conditioning system is protected by a pressure relief valve, located on the end of the high side hose near the compressor. When the refrigerant pressure reaches an abnormal level of 540 psi (3727 kPa), the release port automatically opens and releases refrigerant to the atmosphere.

How do you adjust a unloader valve?

How to Set the Unloader Valve or Pressure Regulator

Make sure the engine or motor is spinning at the proper rpm.
Use a new high power washer spray nozzles of the proper size orifice for your pressure washer.
Remove the nylock nut off the top of the unloader valve and spin the black plastic pressure adjusting knob off.

How do I release pressure from my air compressor?

The first step is to make sure your compressor is turned off. This could be unplugging it from the outlet or just making sure the switch is in the off position. Next, reduce the pressure in the tank to under 10 PSI. To release pressure, pull the ring on the ASME safety valve.
