Does GFCI protect downstream? | ContextResponse.com

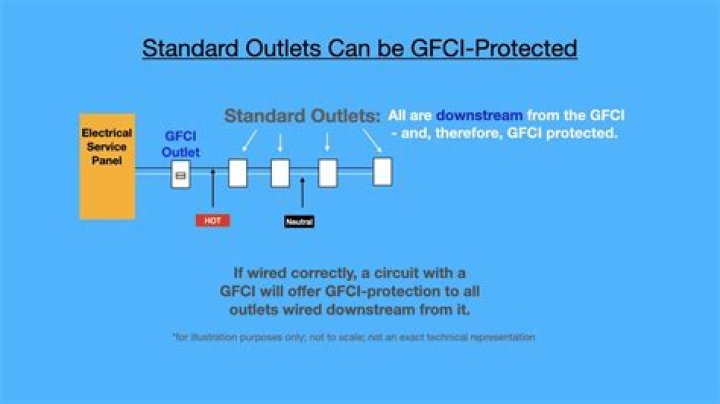

One of the best features of GFCI (Ground Fault Circuit Interrupters) is their downstream protection. That means the same safety feature you get from a GFCI outlet is automatically applied to all other outlets wired further down on the same circuit, as long as the outlets are wired properly.

Simply so, does a GFCI protect upstream?

Any downstream receptacles that are attached to the Load terminals will be protected by the GFCI. Receptacles connected to the Load terminals should not be GFCI receptacles - they don't need to be because they are protected by the upstream GFCI.

Similarly, can you put GFCI at end of run? Wiring an end-of-run ground fault circuit interrupter (GFCI) receptacle is necessary when wiring in a new whirlpool bath, hot tub or a small swimming pool. GFCI receptacles can be installed on old Edison Base fuse panels, but GFCI circuit breakers can't be installed in a fuse panel.

Then, will a GFCI protect other outlets?

Yes. The GFCI outlet will only protect its own outlets and any outlets that are connected via it's 'Load' connections. Anything spliced before the GFCI will behave as if there is no GFCI. The most important thing is to make sure you connect the GFCI to power from the panel via the 'Line' connections.

Do you need a GFCI outlet if you have a GFCI breaker?

GFCI protection is a required safety measure for virtually all outlets close to water or in outdoor areas. You can install a GFCI receptacle installed at an individual power outlet, or you can use a GFCI breaker in the electrical panel to have GFCI protection for all outlets powered by that breaker.

Can you daisy chain GFCI outlets?

Daisy chaining GFCI devices can be problematic, even if they appear to be wired correctly. The downstream GFCI (receptacle) may perform an internal self-test when energized, which the upstream GFCI (breaker) detects as a fault. You can daisy-chain GFCIs if you really want to. They will still protect just fine.

Do all outlets in bathroom need to be GFCI?

The National Electrical Code, or NEC, has specific GFCI requirements for dwelling units. Article 210.8 states that ground-fault circuit-interrupters shall be used for all 125-volt, single-phase, 15- and 20-amp receptacles installed in the following locations: Bathrooms: All receptacles must be GFCI protected.

Does GFCI need to be first?

Yes, one GFCI receptacle, just like one GFCI breaker, can protect the entire circuit. To install a GFCI receptacle to protect the entire run, you need to find the first receptacle location on the circuit. The code does NOT tell us WHERE to PLACE a GFCI protection on a circuit.

Can I put a GFCI anywhere in a circuit?

Yes, you can use the first outlet in a circuit to protect downstream outlets if they draw their power from the LOAD side of the GFCI outlet. Yep, that's how it works. But, according to regulations (The Code) you must put a "GFCI Protected" sticker on the normal looking outlets.

Where does a GFCI go in a circuit?

Multiple-location wiring protects the first GFCI receptacle and every receptacle downstream of it (including standard receptacles) in the same circuit. However, it does not protect the portion of the circuit that lies between itself and the main service panel.

Can you plug a GFCI extension cord into a GFCI outlet?

Never plug a GFCI into your extension cord, always plug the GFCI in first directly to power outlet, then you can plug the extension cord into the GFCI (or multiple extension cords into it only if the GFCI has multiple receptors).

How do you wire a GFCI receptacle?

Install the new ground-fault circuit interrupter outlet by attaching both the black and white wires to the "line" side of the outlet. Connect the bare wire to the grounding screw. Replace the cover plate, then check to make sure the GFCI is operating properly. Press the test button; the outlet should go dead.

What is the difference between GFI and GFCI?

GFI is an ground fault interrupting outlet. GFCI is a ground fault circuit interrupter. GFI is an ground fault interrupting outlet. GFCI is a ground fault circuit interrupter.

What happens if GFCI is wired backwards?

If these GFCI receptacles are "set" and installed with line-load reversed they shouldn't detect a ground fault on the receptacle. Downstream protects as intended. If you push the test button the GFCI trips and can not be reset.

Can 2 GFCI receptacles be wired in series?

You only need 1 GFCI outlet per circuit (assuming it's at the beginning of the line and the rest of the outlets are loads). They are correctly wired in parallel - if they were in series, you wouldn't get the correct voltage at the other outlets when there is any type of load present. It is possible.

How many outlets can one GFCI protect?

Re: number of outlets after gfciUsing 220.14, a maximum of 13 receptacle outlets are allowed on a 20A circuit. They can be single or dulpex and still only counts as one receptacle.

How do you bypass a GFCI?

Turn the power off, and remove the GFCI. You should see Black and White wires connected to the "LINE" Terminals, and another pair Connected to the "LOAD" Terminals. Devices with motors can trip GFCI outlets due to inductive loads at start up or shutdown. Get yourself some spare wire.

How do you troubleshoot a GFCI?

Go to your circuit breaker and switch off the circuit for the GFCI outlet that is having problems. Then unscrew your ground fault circuit interrupter outlet and pull out the outlet from the box. Take out the black and white wires from your GFCI outlet.

How do I replace a GFCI breaker?

Connect the GFCI BreakerConnect the hot circuit wire to the "HOT" or "LOAD" screw terminal on the GFCI breaker, using a screwdriver. Connect the neutral circuit wire to the "NEUTRAL" screw terminal on the GFCI breaker. Connect the GFCI breaker's coiled white neutral wire to the neutral bus bar on the service panel.

How do you install a GFCI switch?

electrical outlets & receptacles

Step 1: TURN OFF THE POWER.
Step 2: REMOVE EXISTING OUTLET.
Step 3: PREPARE WIRES.
Step 4: IDENTIFY THE LINE WIRES.
Step 5: CONNECT THE WIRES.
Step 6: PLACE THE GFCI INTO THE WALL BOX.
Step 7: COVER WITH WALL PLATE.

How do I reset a GFCI outlet that won't reset?

The GFI Outlet Won't Reset

Press the center "Test" button, then push in the "Reset" button, if applicable.
Dry the GFI outlet with a standard hair dryer if the outlet has tripped due to exposure to water or moisture.
Check the main breaker or fuse for the circuit that the GFI outlet is connected to.

How many GFCI outlets can you have on the same circuit?

You only need 1 GFCI outlet per circuit (assuming it's at the beginning of the line and the rest of the outlets are loads). They are correctly wired in parallel - if they were in series, you wouldn't get the correct voltage at the other outlets when there is any type of load present. It is possible.

Do I need GFCI on every outlet?

In kitchens, all outlets that serve countertop surfaces should be equipped with GFCI outlet protection. That being said, to provide that protection you only need one GFCI outlet as the first outlet of the branch.

Do GFCI outlets need to be on their own circuit?

No GFCI's do not require a dedicated circuit. However, they are normally in circuits that are required to have ground fault protection. The way I wire them, is to have the GFCI as the first plug, then chain and protect all the plugs downstream from the GFCI.
