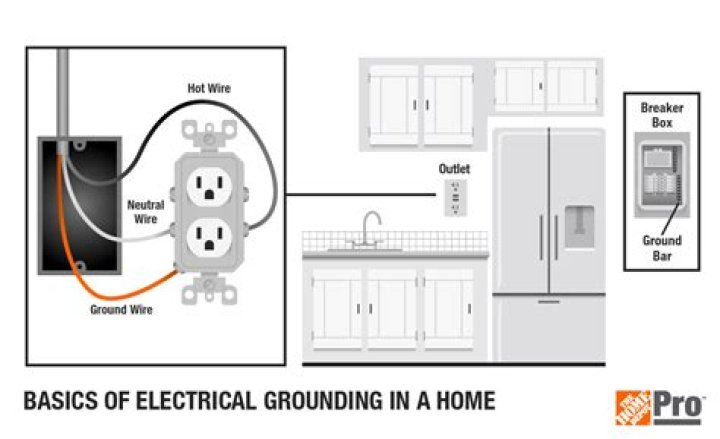

All outlets have a hot wire that delivers electricity from your local power source to your home, and a neutral wire that sends electricity back to the power source. If an outlet has only these two wires, but has no ground wire, it is a non-grounded, or ungrounded, outlet. A ground wire is an important safety feature..
Consequently, what can happen if an outlet is not grounded?
Ungrounded outlets increase the chance of: Electrical fire. Without the ground present, errors that occur with your outlet may cause arcing, sparks and electrical charge that can spawn fire along walls, or on nearby furniture and fixtures.
do surge protectors work without a ground? A GFCI outlet provides protection against lethal shocks, but without a ground wire, this outlet will not provide any protection for your electrical equipment. A surge protector plugged into an ungrounded outlet will do nothing, and you could fry your new plasma TV.
why do electrical outlets need to be grounded?
The idea behind grounding is to protect the people who use metal-encased appliances from electric shock. The casing is connected directly to the ground prong. With the case grounded, the electricity from the hot wire flows straight to ground, and this trips the breaker in the breaker box.
Can I install a 3 prong outlet without ground?
3-prong outlets without ground are legal if they are GFCI protected, with "GFCI protected" and "No equipment ground" stickers.
Related Question Answers
How much does it cost to fix ungrounded outlets?
Grounding an OutletThe labor involved will be about 30 minutes, but you'll likely pay for the call-out fee, as well, for a total cost of around $100 to $150.Is it safe to use a 3 prong to 2 prong adapter?
2-3 prong adapters can be safe if grounded and used properly, however, they might not provide the best function. If you own a home with all 2-prong outlets it is not likely you will move the adapters around uninstalling and reinstalling them as you need to plug things in and out of your outlets.Are 2 prong outlets legal?
According to the National Electric Code, two-prong outlets are allowed in homes as long as they are properly working. If you choose to replace your two prong outlet, you do not have to upgrade to a newer model. If the two-prong outlet is properly functioning and tested, you may keep it in your home.How do you ground an outlet in a plastic box?
Plastic electrical boxes have their pluses and minuses. Because they are plastic, there is no need to attach a ground wire to it. Since it is made of a non-conductive material, switches and outlets cannot short out if they touch the side of the box.How do you discharge yourself?
Part 2Grounding Yourself - Understand how grounding works.
- Use your computer's case to ground yourself.
- Touch grounded metal objects every couple of minutes.
- Ground yourself with an anti-static wristband.
- Connect yourself to a grounded metal object via a wire.
- Work on an ESD mat.
Can I remove the third prong on a plug?
All three-prong plugs must be connected to electrical receptacles that can receive a three-pronged plug. Also, the electrical receptacle itself must have a ground circuit connected internally that goes back to the main service panel. If you cut the third prong off of a plug, you defeat the safety feature.What is a self grounding outlet?
Self-grounding outlets are three-prong outlets that automatically ground to the outlet metal box they are attached to via the mounting screws on the outlet assembly, or via a green pigtail wire from the outlet assembly that is screwed to the metal outlet box.Is it possible to ground a two prong outlet?
Old-fashioned two-prong receptacles connected to two-wire cables don't have the ground wires that protect people and electrical devices in case of a fault. Yet it is possible to retrofit a new three-prong or GFCI receptacle into the same outlet box without any rewiring, as long as the box itself is grounded.Will GFCI fix open ground?
1 Answer. You are correct, GFCI receptacles can be used to replace old 2-prong receptacles when there's no grounding conductor. If your home is old enough, you might assume that there is no ground at the receptacle. However, if you want to know for sure, you'll have to inspect the wiring inside the box.Can I install GFCI without ground?
Yes, a GFCI Outlet can be installed even if a ground wire is not available in the existing electrical circuit. The GFCI outlet must be marked with a provided label that the outlet is not grounded. The GFCI will still protect the user against ground fault just the same.Can an outlet be grounded without a ground wire?
If an outlet has only these two wires, but has no ground wire, it is a non-grounded, or ungrounded, outlet. If the outlet has a third wire called a ground wire, it is a grounded receptacle, or outlet, and will have the familiar three slots. A ground wire is an important safety feature.Should the ground plug be on top or bottom?
The outlet should be oriented with the ground pin down because a person grabbing the outlet will have their index finger at the bottom side of the plug and the index finger sticks out further than the thumb. Having the ground down will keep a person's index finger from touching the live pins.What is a Type B plug?
The Type B electrical plug has two flat parallel pins and a round grounding (or earth) pin. The earth pin is longer than the other two so that the device is grounded before the power is connected. As with the type A plugs, the American and Japanese versions vary slightly. Type B plugs are rated at 15 amps.What are the 3 prongs on a plug?
3-Prong Outlets. The standard 3-prong receptacle is called a grounding receptacle because it allows a grounding wire to be connected from the electrical circuit to the appliance. The grounding wire is connected to the third prong of the plug.What are the three wires in a plug?
The plug contains three wires – the live, neutral and earth wires. In a plug, the live wire (brown) and the neutral wire (blue) are the two wires that form the complete circuit with a household appliance. The earth wire (green and yellow) does not normally form part of the circuit and is included as a safety wire.Is Ground positive or negative?
Usually in electronics, ground is just a name we give to a certain point in the circuit. In a circuit with one battery (with a positive and a negative terminal), we usually refer to the negative terminal as ground.How do I add a ground to an outlet?
Examine the receptacle and the wiring.If you have three wires in the box (black, white, and copper), you will need to attach or tighten the grounding wire. If you have only two wires and a 2-prong receptacle, you can attach a GFI or GFCI receptacle.What happens if your house is not grounded?
If your home is improperly grounded or not grounded at all, then you run the risk of many potentially dangerous problems. Because electrical current always moves along the path of least resistance, you are directly at risk of being shocked if you are using an ungrounded device when it discharges excess electricity.How do you fix an open ground outlet?
Turn the power off and verify it is off using the non-contact voltage tester. Run a ground wire or cable of the proper gauge from the outlet box to the circuit panel. Attach the wire or cable to the grounded bus in the circuit panel.
