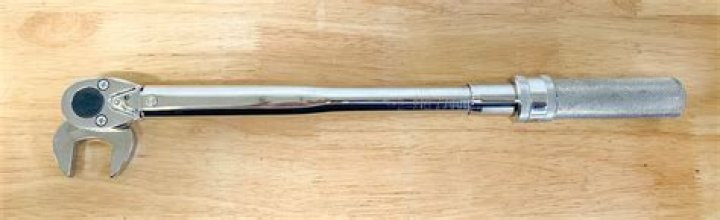

Can you use a crows foot on a torque wrench?
Christopher Davis general
.
People also ask, can an extension be used with a torque wrench?
The short answer is no, extensions do not affect torque wrench accuracy. That is if they're used properly, and you're using your torque wrench correctly.
One may also ask, how do you calibrate a torque wrench? Part 2 Correcting Torque Wrench Calibrations
- Adjust the torque wrench using the weight.
- Move the weights up the handle if you hear a click.
- Lower the weights if you don't hear a click.
- Mark the point of transition.
- Measure from the square drive to the point of transition.
- Calculate the applied torque.
Similarly one may ask, what is a crow foot wrench?
Crowfoot Wrench. Description. Called a "crowfoot" wrench because of its shape, this wrench was used in steam train repair work and to reach and to hold nuts and boltheads in difficult-to-reach places.
Do socket adapters affect torque?
A torque wrench adapter can help you work smarter, not harder, as long as you do so correctly. Adapters will affect the torque wrench setting if the distance changes between the fastener and the torque wrench handle. A straight extension will have no effect on the torque wrench setting.
Related Question Answers
How do you calculate actual torque?
The point where the object rotates is known as the axis of rotation. Mathematically, torque can be written as T = F * r * sin(theta), and it has units of Newton-meters. When the sum of all torques acting on an object equals zero, it is in rotational equilibrium.What should you not do with a torque wrench?
Do not drop your torque wrench or overload the wrench with a pipe extension. Improper Wrench Storage - Storing the torque wrench in conditions that will lead to the corrosion in the tool. High humidity areas for instance.Can you use a universal joint with a torque wrench?
You cannot get an accurate torque with a universal joint in between the bolt and the torque wrench, there are more factors than just the angle you have to consider.Can you use a cheater bar on a torque wrench?
Answer: You should never, under any circumstances, use a “cheater bar” with a torque wrench. Not only is the accuracy adversely affected by cheater bar tools, but also serious bodily injury may result. If you are using a wrench extension bar that is vertical to the drive, it has no affect on the accuracy.How much does an extension affect torque wrench?
NO! As others have said using an extension on either end will not effect the amount of torque applied. By making the torque wrench longer it only makes it easier for you to apply the same amount of torque. If you set it for 80ft-lbs it will click at 80ft-lbs regardless of any extensions used!How much torque can a 1/4 drive take?
1/4 drive, rated for up to 90 ft/lbs of torque.How much torque can a 1/2 drive take?
150 ft-lbs will break a 3/8" drive usually and about 300 ft-lbs will break a 1/2" drive. These are on regular breaker bars that are partially hollow and have the little ball in the space of the head to hold the socket. A SOLID 1/2" heat treated impact rated drive anvil will go up to about 1200 ft-lbs.Do you lose torque with extensions?
There is no torque "lost" when using an extension. The moment arm is still the same. The torque amount changes if you are at an angle to the fastener, hence the need for torque angle gauges.How do you increase leverage on a wrench?
If you do need to push a wrench, use the heel of your hand, that way if the wrench slips, you won't hurt yourself. Don't use a “cheater bar” to gain more leverage. You risk damaging the tool or injuring yourself. If you need more leverage, get a longer wrench.How do you calculate extension torque?
When you put an extension on a torque wrench (e.g. a crow foot or a dog bone) the torque applied to the fastener increases as the lever arm extends. The calculator will work out what value you should set into the wrench to achieve the required fastener torque. The following formula has been used: M1 = M2 x L1 / L2.What do you use a flare nut wrench for?
What is a Flare Nut Wrench? Flare nut wrenches are a type of open-ended wrench that's intended for use with hexagonal nuts and fittings, which are sometimes referred to as flare fittings. Visually, they resemble box or ratchet wrenches but with an open head instead of a closed loop.What is a crows foot socket used for?
Crowfoot socket wrenches are designed for use with hand ratchets and extensions or torque wrenches. They feature a non-cylindrical design that allows you to reach places that might be unreachable with a regular socket wrench.How do you calculate foot pounds of torque?
How to Measure Foot-Pounds of Torque- Examine the top of the bolt you want to use the torque wrench on for a number.
- Look through a reference book until you find the bolt's number.
- Spin the handle of the torque wrench until you reach the specified number of foot-pounds needed.
- Place the top part of the torque wrench on the bolt.
