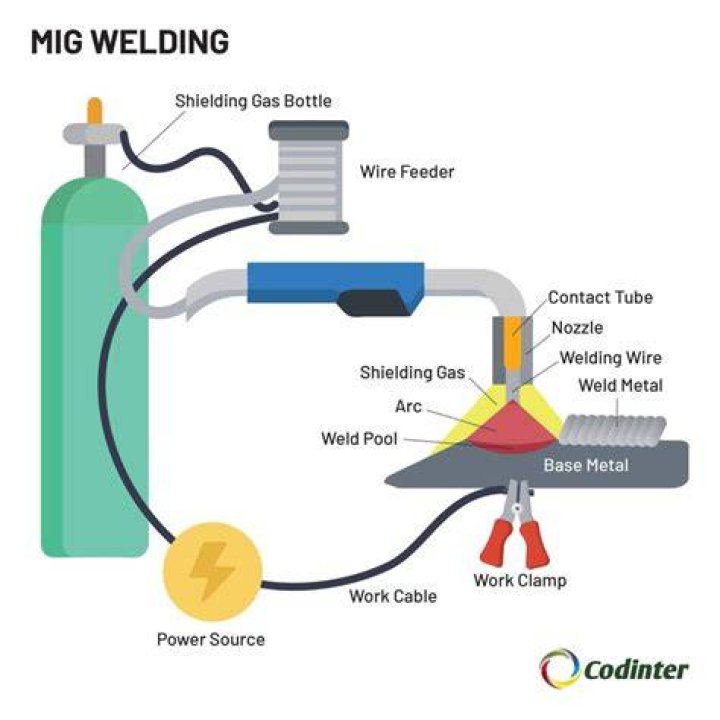

Nickel alloys can, for the most part, be welded with the same processes used for carbon steel. Oxyacetylene welding is preferred to metal arc in some cases. For Mig welding, use a 50/50 argon/helium mix for shielding. You can also weld using any position..
Moreover, can nickel be welded?
Nickel alloys can be joined reliably by all types of welding processes or methods, with the exception of forge welding and oxyacetylene welding. The wrought nickel alloys can be welded under conditions similar to those used to weld austenitic stainless steels.
Secondly, can you weld copper with a MIG welder? You can use a MIG welder and gun to essentially braze the materials together. Using MIG equipment and silicon bronze welding wire makes joining copper an easier, more repeatable quality process. The silicon bronze wire heating requirements aren't enough to melt the copper base metal.
Subsequently, one may also ask, can you weld nickel silver?
ALLOY DESCRIPTION AND APPLICATION: Washington Alloy Nickel Silver filler metal contains 10% nickel and is used primarily for brazing or oxyacetylene welding of steel or cast iron base metals. The weld deposits are machinable and work hardens when put into service.
What is the best welding rod for cast iron?
- 99% NICKEL RODS. Nickel based electrodes are often expensive and is considered the premium.
- 55% NICKEL RODS. A cheaper option, 55% nickel rods are economical.
- STEEL RODS. The cheapest option, steel electrodes, are best used for simple repairs and fillers.
Related Question Answers
Can you Weld Inconel to carbon steel?
When you are welding an Inconel alloy, you have to use Inconel filler metal. This is normally the easiest Inconel alloy to seal and is effective when two Inconel pieces need to be welded together. You can also use Inconel 625 to weld other metals that are unlike in terms of composition, such as stainless steel.What is nickel welding?
Nickel welding is performed using one of the many available nickel alloys. Arc welding can be used including Stick, Mig and Tig processes. Using stick welding in particular will create a weld stronger than the base metal. When using Tig welding, the weld process is shielded with argon gas.Can you weld nickel to stainless steel?
The nickel-containing stainless steels, nickel- and copper-base alloys are readily fusion welded to carbon and low alloy steel and to each other. Methods are described to estimate the weld metal composition of DMWs. Knowing the composition, weld properties can be predicted for a wide range of DMWs.Can you weld Monel to carbon steel?
Welding Monel to Carbon Steel. Looking for a procedure for welding Monel ASTM A494 Grade M-30C to A 106 Carbon Steel. There is likely a variety of nickel based filler alloys that may be used to make the monel-to-CS dissimilar metal weld. The filller metal must be austenitic, and ferritic filler metals must not be used.Can you weld nickel plated steel?
Nickel alloy weld metal does not flow or spread as readily as steel weld metal. The operator must manipulate the weld puddle so as to direct the weld metal to the proper location in the joint. The joint must, therefore, be sufficiently open to provide space for movement of the torch or filler metal.Why are low alloy steels welded using nickel alloys as filler metals?
These manganese-nickel-molybdenum filler metals are designed to join high strength low alloy (HSLA) steels, as they provide increased strength — up to 120,000 psi minimum tensile strength — and toughness. Fabricators can also use them to join quenched and tempered steels.Is copper easy to weld?
Oxygen-free coppers, such as 101, are easily welded. However, oxygen-bearing copper should not be welded as high temperatures seriously reduce the metal's strength and ductility. Fusion welding is not recommended for free-machining copper because they are prone to cracking.Can you mig weld brass?
All brasses, which includes Gilding Metal, can be silver soldered, MIG and TIG welded successfully. Phosphor Bronze, copper/tin alloys such as PB2, can be readily brazed or welded. Gas welding of brass is not recommended as the zinc will tend to vaporise causing fumes (zinc oxide) and porosity.Can you weld pennies?
You can weld the new pennies together using 4043 aluminum as filler.. it bonds well with the zinc if you don't overheat it..Can I MIG weld copper to steel?
Artillery shells have a copper rotating band welded over the steel shell. This copper ( alloy) is welded to the steel using a MIG process where a wire is fed through an electrode that produces an arc between the grounded steel shell and the copper electrode resulting in deposition of the molten copper onto the shell.Can I weld copper to steel?
It is resistant to rust and bonds well with other metals. A TIG welder is used when welding copper to give the weld seam the best appearance and a leak-free bond. Argon gas is used with the TIG welder and a filler material is added to the weld to create a permanent bond between the copper and the steel metals.Can you stick weld copper?
Welding rods, usually stick electrode covered with flux. Heat from the welder spreads out through the metal and doesn't concentrate on the area you want to weld. The most common type of welding for copper is the manual metal arc process, but gas metal arc and gas tungsten arc are also used.Can I weld copper to stainless steel?
Soldering, Brazing, and Welding Tips. Soldering with a propane torch is the easiest way to join copper and brass. You can even use solder to join copper or brass to stainless steel, you just need the proper flux. The paste flux tends to leave tacky residue that is difficult to clean off.What is copper nickel pipe?
Cupronickel or copper-nickel (CuNi) is an alloy of copper that contains nickel and strengthening elements, such as iron and manganese. Cupronickel is highly resistant to corrosion by salt water, and is therefore used for piping, heat exchangers and condensers in seawater systems, as well as for marine hardware.
